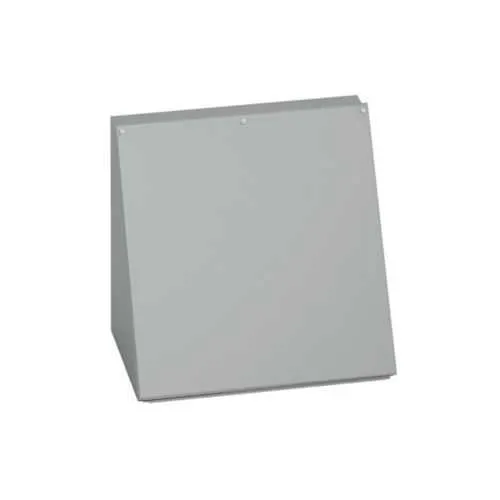

Eaton AC-12C24SS Console Enclosures - NEMA 12
Part Number: AC-12C24SS
Quick Summary
AC-12C24SS is a rugged console enclosure designed for harsh industrial environments. This Eaton B-Line series unit combines 304 stainless steel with a 14 gauge wall to deliver long-term corrosion resistance and structural durability. For engineers and procurement teams, the challenge is balancing protection with serviceability in crowded control rooms and outdoor installations. The enclosure carries UL 508A, CSA C22.2, and NEMA 12 certifications, ensuring electrical safety and environmental protection for demanding applications. Surface mounting with external feet simplifies retrofits and new builds, while a screw cover and continuous hinge deliver secure access and reliable sealing. These features translate to safer panels, lower maintenance costs, and improved uptime in automation and electrical infrastructure projects.
Product Information
Extended Description
AC-12C24SS Eaton: Eaton B-Line series consolet enclosures, 12" height, 9.12" length, 24" width, NEMA 12, Screw cover, ACSS concolet, Surface mounted, Medium single door, External mounting feet, 304 stainless steel, Oil-resistant gasket
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-12C24SS
UPC
782051142327
Product Length/Depth
9.12 in
Product Height
12 in
Product Width
24 in
Product Weight
23.3 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
14 gauge
Finish color
#4 brushed
Color
Gray
Style
Medium single door
Model
ACSS consolet
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Continous hinge
Special features
Stainless screws
NEMA Rating
12
Country of origin
US
Feature: 304 stainless steel construction with 14 gauge wall. Business Impact: Delivers excellent corrosion resistance and structural durability in demanding environments, extending enclosure life and reducing replacement costs. Application: Ideal for control panels in automated systems exposed to dust, moisture, or oils. Feature: NEMA 12 rating with oil-resistant gasket. Business Impact: Protects internal components from dust, splashes, and lubricants, improving uptime and safety. Application: Suitable for general purpose electrical enclosures in manufacturing and process facilities. Feature: Surface mounting with external mounting feet and measured dimensions (12 in height, 24 in width, 9.12 in depth). Business Impact: Simplifies installation and retrofit projects, enabling quick deployment and scalable panel layouts. Application: Retrofit projects and new builds in industrial environments. Feature: Screw cover with continuous hinge and stainless screws. Business Impact: Provides secure sealing and long-term durability with minimal maintenance. Application: Enclosures in areas requiring easy access for inspections and maintenance. Feature: 304 stainless steel finish (#4 brushed) in gray. Business Impact: Professional appearance with easier cleaning and extended life in harsh environments. Application: Visible, high-traffic control panels in plant floors and equipment rooms.
Get a Quick Quote for a Eaton AC-12C24SS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-12C24SS?
Enquire Now
FAQs
Yes. The AC-12C24SS is part of Eaton's B-Line console enclosure family and follows standard mounting patterns for easy integration with compatible frames, hinges, and door configurations. It features surface mounting with external feet and a screw cover, enabling straightforward retrofits or new installations with compatible hardware. When planning a retrofit, verify door size, mounting hole patterns, and gasket compatibility in the catalog to ensure seamless compatibility with existing components.
Key specs include a 12 inch product height, 24 inch width, and 9.12 inch depth, with a weight around 23.3 pounds. Constructed from 304 stainless steel with a 14 gauge wall, it delivers robust protection and rigid support for mounted equipment. These dimensions support compact control stations while maintaining ample internal space for wiring and components, aiding airflow and inspection access.
Ideal for automation, manufacturing, and process control environments that require reliable protection against dust, splash, and oils. The NEMA 12 rating, oil-resistant gasket, and stainless steel construction make it well-suited for washdown areas and harsh factory floors. Its surface-mount design and external feet support both new installations and retrofits in tight spaces, delivering durable control housing for critical equipment.
The enclosure is certified to UL 508A and CSA C22.2 standards and carries a NEMA 12 rating. These certifications confirm electrical safety and environmental protection for indoor and limited outdoor use in industrial settings. The unit ships from the US and aligns with rigorous electrical infrastructure requirements for compliant installations.
Durable 304 stainless steel with a 14 gauge wall reduces corrosion-related failures and maintenance intervals, while the screw cover and continuous hinge simplify inspections without compromising sealing. External mounting feet expedite installations and future upgrades, lowering labor costs during retrofit projects and contributing to longer equipment life, improved uptime, and a lower total cost of ownership for automation and electrical infrastructure.
