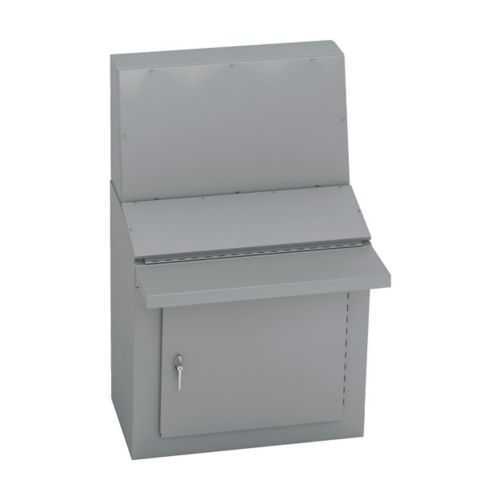

Eaton AC-1424T Console Enclosure - NEMA 12 ANSI61 Gray
Part Number: AC-1424T
Quick Summary
Eaton AC-1424T is a console enclosure designed to protect control panels in industrial environments. This solution helps engineers shield sensitive electronics from dust and moisture while maintaining flexible mounting for complex layouts. CSA certified and built to NEMA 12 protection standards, it offers a durable ANSI 61 gray powder-coated finish suitable for demanding facilities. By integrating with the AC-1424B bracket, the enclosure streamlines installation and reduces custom fabrication costs. This combination delivers compliant, reliable protection for industrial automation and electrical infrastructure projects, supporting safer operations and longer equipment life. For procurement teams, the kit approach translates to faster sourcing and consistent hardware compatibility across your console ecosystem.
Product Information
Extended Description
AC-1424T Eaton: Eaton B-Line series console enclosures and accessories, NEMA 12, ANSI 61 gray polyester powder finish, Mounting channel, Console, Used with (AC-1424B)
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-1424T
UPC
782051425369
Product Length/Depth
23 in
Product Height
50 in
Product Width
24 in
Product Weight
44.864 lb
Certifications
CSA
Finish color
ANSI 61 gray painted
Style
Kit includes all hardware for bracket assembly
Special features
Used with (AC-1424B)
Product Category
Console accessories
Degree of protection
NEMA 12
Feature: NEMA 12 protection provides robust enclosure integrity against dust and incidental moisture. Business Impact: Reduced risk of equipment downtime and extended component life in harsh environments. Application: Ideal for control panels in manufacturing floors and utility infrastructure. Feature: ANSI61 gray powder coat finish enhances corrosion resistance and aesthetic uniformity. Business Impact: Lower maintenance costs and easier paint-touch-up in busy facilities. Application: Suitable for indoor and semi-exposed installations where visibility and cleanliness matter. Feature: Kit includes mounting channel, console, and bracket hardware. Business Impact: Faster, error-free installation with reduced part scavenging and labor time. Application: Facilitates quick assembly with AC-1424B accessories for a complete console solution. Feature: CSA certification and documented specifications. Business Impact: Supports regulatory compliance and customer audit readiness, minimizing qualification cycles. Application: Useful in environments requiring verified electrical protection and traceable components. Feature: Compatibility with Eaton B-Line family and accessories. Business Impact: Streamlined procurement and standardized maintenance across multiple enclosures. Application: Great for scalable automation projects and modular control rooms.
Get a Quick Quote for a Eaton AC-1424T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-1424T?
Enquire Now
FAQs
AC-1424T is designed to work with the AC-1424B bracket and other Eaton B-Line console accessories. The kit includes mounting channel and hardware, enabling straightforward integration into existing B-Line ecosystems. This compatibility minimizes custom fabrication and ensures a consistent installation standard across multiple enclosures in a single project.
Yes, the AC-1424T provides NEMA 12 protection, offering dust- and splash-resistant enclosure integrity suitable for indoor industrial environments. Its ANSI 61 gray powder-coated finish adds corrosion resistance, making it appropriate for manufacturing floors, control rooms, and utility installations where environmental contaminants are a concern.
The installation uses a complete kit that includes mounting channel, console, and bracket hardware designed for easy assembly with the AC-1424B. Follow the provided Eaton documentation to align the enclosure, secure it to the mounting surface, and attach interconnecting components. The process minimizes field adjustments and reduces installation time.
Key specifications include a depth (length) of 23 inches, height of 50 inches, width of 24 inches, and a weight of 44.864 pounds. These measurements help with space planning, cable management, and structural support calculations during deployment in control rooms or equipment rooms.
Documentation includes the Pushbutton Enclosures & Operator catalog and the Eaton Specification Sheet for AC-1424T. These PDFs provide installation guidance, dimensional drawings, and performance data, aiding system design, compliance checks, and procurement approvals.
