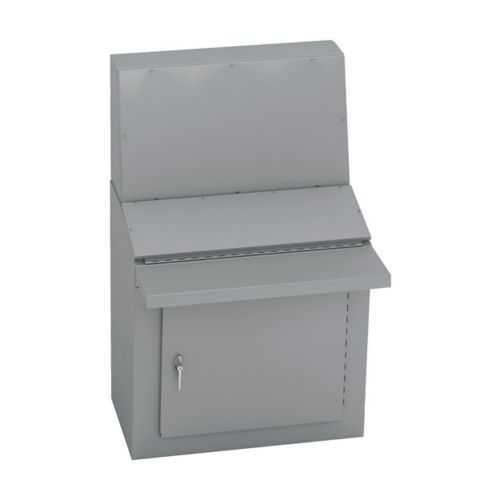

Eaton AC-1436T Console Enclosures - NEMA 12 Rating
Part Number: AC-1436T
Quick Summary
The Eaton AC-1436T console enclosure protects control panels in harsh industrial environments and is designed for reliable, long-term operation. Engineers often struggle with moisture intrusion, dust ingress, and space constraints that complicate installation and increase maintenance costs. CSA certification and a NEMA 12 rating, paired with ANSI 61 gray polyester powder finish, deliver durable protection in manufacturing, processing, and utility environments. This enclosure is part of the B-Line series ecosystem, offering compatibility with AC-1436B accessories to streamline procurement and deployment. By prioritizing standardization and modularity, it reduces downtime and simplifies future upgrades while delivering proven performance for control systems and panel assemblies.
Product Information
Extended Description
AC-1436T Eaton: Eaton B-Line series console enclosures and accessories, NEMA 12, ANSI 61 gray polyester powder finish, Mounting channel, Console, Used with (AC-1436B)
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-1436T
UPC
782051425482
Product Length/Depth
23 in
Product Height
50 in
Product Width
36 in
Product Weight
61.421 lb
Certifications
CSA
Finish color
ANSI 61 gray painted
Style
Terminal strap
Special features
Used with (AC-1436B)
Product Category
Console accessories
Degree of protection
NEMA 12
The AC-1436T is built to protect control electronics in demanding settings, with a NEMA 12 enclosure and ANSI 61 gray finish that resist dust, moisture, and corrosion. This translates into lower maintenance costs and longer intervals between service cycles in critical automation applications. The included mounting channel and the ability to pair with AC-1436B accessories enable flexible configurations and faster install times, reducing project labor and commissioning risk. Its robust dimensions—23 in depth, 50 in height, and 36 in width—provide ample space for wiring and terminal straps, supporting clean, compliant panel layouts and easier future upgrades. CSA certification reinforces regulatory compliance for industrial environments, while the durable polyester powder coating minimizes repaint cycles and lifecycle costs. Compatibility with the B-Line console accessories ensures seamless integration across control rooms, process lines, and distribution panels.
Get a Quick Quote for a Eaton AC-1436T
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-1436T?
Enquire Now
FAQs
The AC-1436T is designed to work with Eaton AC-1436B accessories, leveraging the built-in mounting channel for flexible configurations. This compatibility supports various console layouts while maintaining NEMA 12 protection and ANSI 61 gray finish. When planning a panel build, verify mounting channel alignment and accessory availability to ensure a clean, scalable deployment across multiple service rows.
The AC-1436T provides NEMA 12 protection, meaning it is engineered to resist dust ingress and non-anticipated water exposure typical in manufacturing and processing environments. This protection reduces the risk of internal contamination and corrosion, helping maintain reliability of mounted controllers, relays, and wiring harnesses even in harsh factory floors.
Yes, the AC-1436T carries CSA certification, which supports regulatory compliance in many North American industrial settings. This certification, along with the NEMA 12 rating and ANSI 61 gray finish, provides a framework for meeting safety and durability expectations in control panel enclosures used for automated processes.
For optimal performance, plan for the 23 in depth, 50 in height, and 36 in width of the enclosure, ensuring sufficient space for wiring and terminal straps. Use the included mounting channel and verify compatibility with AC-1436B accessories to streamline assembly. Place the enclosure in a clean, dry vicinity to preserve the ANSI 61 gray finish and reduce repainting needs.
Expect reduced downtime due to robust NEMA 12 protection and CSA-certified reliability, which lowers maintenance frequency for critical control panels. The standardization with AC-1436B accessories reduces spares inventory and procurement time, while the durable polyester powder coating minimizes repaint costs. Overall, these factors contribute to a lower total cost of ownership in automation deployments.
