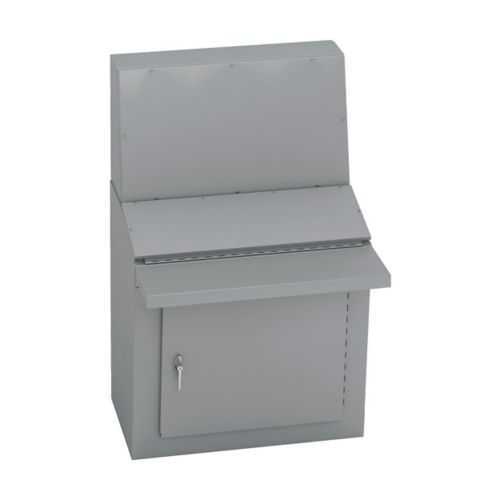

Eaton AC-1436W Console Enclosures - NEMA 12
Part Number: AC-1436W
Quick Summary
Eaton AC-1436W Console Enclosures provide rugged protection for control panels in industrial environments. For engineers balancing limited install space with reliable access, this enclosure streamlines mounting and serviceability. CSA certified and rated for NEMA 12 protection, it guards against dust and dripping liquids while maintaining enclosure integrity. The white enamel finish offers durability in harsh plant conditions, and its compatibility with the AC-1436B accessories supports scalable configurations. Used within Eaton's B-Line series, AC-1436W delivers a dependable, standardized solution that reduces wiring complexity and downtime while accelerating panel upgrades and routine maintenance.
Product Information
Extended Description
AC-1436W Eaton: Eaton B-Line series console enclosures and accessories, NEMA 12, White enamel, Mounting channel, Console, Used with (AC-1436B)
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-1436W
UPC
782051425505
Product Length/Depth
23 in
Product Height
50 in
Product Width
36 in
Product Weight
13.043 lb
Certifications
CSA
Finish color
White enamel
Special features
Used with (AC-1436B)
Product Category
Console accessories
Degree of protection
NEMA 12
Feature: Large, standardized footprint—23 in depth, 36 in width, 50 in height—accommodates mounting channels and internal hardware. Business Impact: Improves space planning, reduces need for custom fabrication, and speeds installation. Application: Ideal for mid-to-large control panels in assembly lines and process facilities. Feature: NEMA 12 protection rating provides dust and light liquid exposure protection. Business Impact: Enhances reliability and uptime by safeguarding sensitive electronics in harsh environments. Application: Suitable for factory floors with moderate washdown risk and environmental particulates. Feature: White enamel finish delivers durable, corrosion-resistant aesthetics. Business Impact: Prolongs lifecycle in challenging facilities, lowering maintenance costs. Application: Enclosures exposed to chemical fumes or dusty atmospheres. Feature: Mounting channel compatibility and seamless integration with AC-1436B accessories. Business Impact: Enables modular upgrades and flexible configurations, reducing rework and spare-part variety. Application: Growing control systems requiring scalable accessory ecosystems within the B-Line series. Feature: CSA certification and standardization within the B-Line console ecosystem. Business Impact: Eases regulatory compliance and vendor consolidation, improving audit readiness. Application: Regulated facilities seeking dependable, repeatable enclosure solutions.
Get a Quick Quote for a Eaton AC-1436W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-1436W?
Enquire Now
FAQs
AC-1436W is designed for use with AC-1436B and standard mounting channels within Eaton’s B-Line ecosystem. This compatibility enables easy accessory upgrades, provides consistent mounting geometry, and reduces the need for custom components. When planning a panel upgrade, verify channel dimensions and accessory clearance to maintain serviceability and cable routing efficiency.
The unit measures 23 inches in depth, 36 inches in width, and 50 inches in height. It has an approximate weight of 13.043 pounds. These dimensions align with common mid-to-large control-panel footprints, simplifying enclosure integration with existing frames and supporting straightforward field installation.
AC-1436W carries CSA certification and features a NEMA 12 protection rating. This combination ensures electrical enclosure compliance and protection against dust and light liquid exposure, suitable for many industrial environments. It does not specify IP ratings, so plan for additional protection in high-dust or washdown areas if required.
This enclosure is well-suited for industrial automation and control-panel applications on manufacturing lines, packaging machines, and process facilities. Its compatibility with AC-1436B accessories enables scalable, modular panel configurations, allowing engineers to expand control architectures without replacing existing enclosures.
Plan for mounting channel integration within Eaton’s B-Line framework and ensure compatibility with AC-1436B accessories. Refer to Eaton’s specification sheets and the Pushbutton-enclosure-operator catalog for mounting details, clearances, and recommended accessory layouts. Proper installation supports serviceability, cable routing, and future expansion without enclosure rework.
