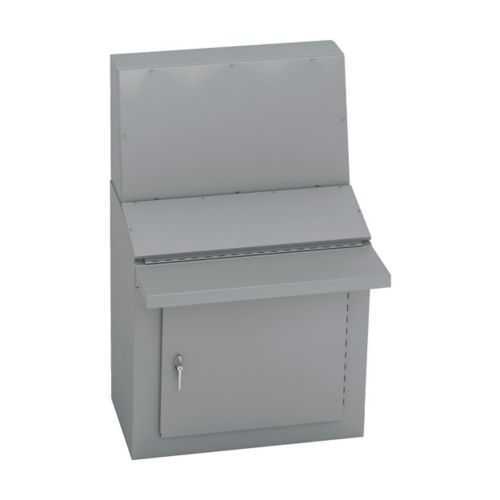

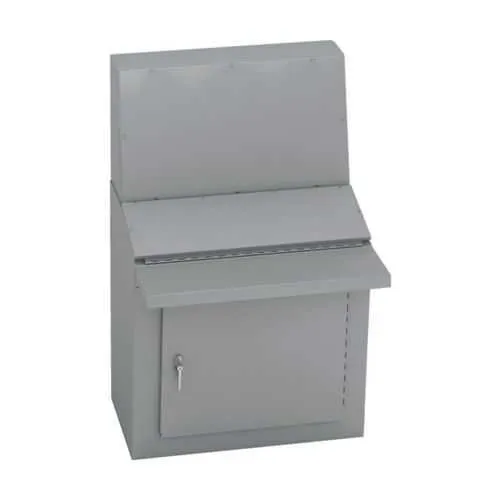

Eaton AC-1460B Enclosures - NEMA 12, Ground Mount
Part Number: AC-1460B
Quick Summary
Eaton AC-1460B enclosures secure control panels for industrial automation and data-center IT applications. Facilities often wrestle with durable corrosion resistance, secure access control, and mounting flexibility in tight spaces. UL 508A, CSA C22.2, and NEMA 12 ratings provide regulatory compliance and reliable protection in demanding environments. Ground mounting with a hinged cover and 3-point latching delivers quick servicing, while compatibility with Eaton B-Line accessories supports scalable console configurations for future upgrades. This model's ANSI 61 gray carbon steel enclosure pairs with oil-resistant gaskets to extend service life in challenging industrial settings.
Product Information
Extended Description
AC-1460B Eaton: Eaton B-Line series console enclosures and accessories, 50" height, 60" length, 23" width, NEMA 12, Hinged cover, AC-14 Console, Ground mount, Medium double door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-1460B
UPC
782051425628
Product Length/Depth
60 in
Product Height
50 in
Product Width
23 in
Product Weight
280.1 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium double door
Model
AC-14 Console
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key locking
Closure type
Hinged
Special features
3-pt latching handle, plated screws
NEMA Rating
12
Country of origin
US
Feature: Ground mounting and hinged cover with 3-point latching. Business Impact: Simplifies installation and service access while maintaining secure, vibration-resistant joins, reducing downtime and maintenance overhead. Application: Ideal for floor-mounted control stations in manufacturing lines where space is at a premium and rapid access is critical. Feature: 14 gauge carbon steel construction with oil-resistant gasket. Business Impact: Delivers robust mechanical protection and gasket integrity in oily or contaminated environments, extending enclosure life and reducing leak-related issues. Application: Suitable for oil-heavy plant floors and outdoor-rated spaces requiring durable enclosures. Feature: NEMA 12 rating and UL 508A/CSA C22.2 certification. Business Impact: Ensures regulatory compliance and reliable ingress protection for typical industrial environments, supporting safer operation and audit readiness. Application: Meets common industrial enclosure standards for electrical infrastructure projects. Feature: Hinged cover, key locking, and 50" height x 60" length x 23" width. Business Impact: Enables secure access with straightforward occupant replacement, while the generous dimensions accommodate large assemblies and modular components. Application: Large console installations in control rooms and equipment rooms. Feature: Ground mounting with no mounting provisions details. Business Impact: Forces intentional base or floor mounting decisions, improving stability and reducing accidental relocation. Application: Suitable for permanent installations where dedicated mounting bases or platforms are used.
Get a Quick Quote for a Eaton AC-1460B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-1460B?
Enquire Now
FAQs
AC-1460B is designed for ground mounting with no internal mounting provisions. For reliable floor installation, plan a dedicated base or platform that can bear the enclosure’s 280.1 lb weight. Leverage compatible Eaton B-Line accessories to extend mounting options, align with floor coordinates, and ensure vibration resistance in high‑duty environments.
The enclosure uses 14 gauge carbon steel with ANSI 61 gray finish and an oil‑resistant gasket, delivering strong mechanical protection and environmental sealing. Dimensions are 50 in high, 60 in long, and 23 in wide, supporting ample internal space for large control assemblies while maintaining manageable footprint in equipment rooms.
Yes. The AC-1460B carries UL 508A and CSA C22.2 certifications and a NEMA 12 rating, aligning with common industry requirements for electrical enclosures. This combination supports safe operation, easier regulatory audits, and wider acceptance across manufacturing, processing, and distribution environments.
Its large footprint, hinged cover for quick access, and 3-point latching provide serviceability and security for sizable control panels. The ground-mount design suits permanent installations, while compatibility with Eaton B-Line components enables scalable configurations as control systems grow.
Regular hinge lubrication, gasket inspection, and locking mechanism checks help maintain sealing integrity and security. The oil-resistant gasket and sturdy carbon steel build extend service life, reducing unscheduled replacements. Planning preventive maintenance and stocking common spare parts contribute to lower lifecycle costs.
