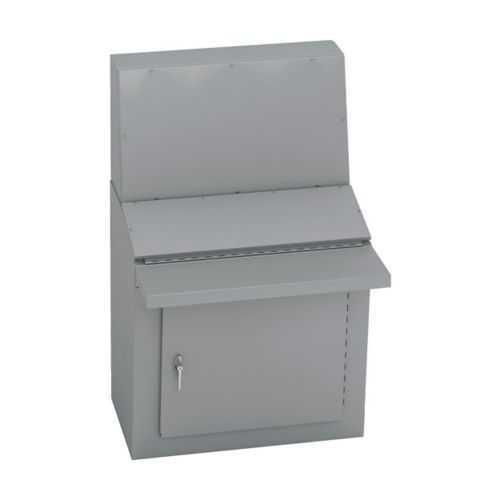

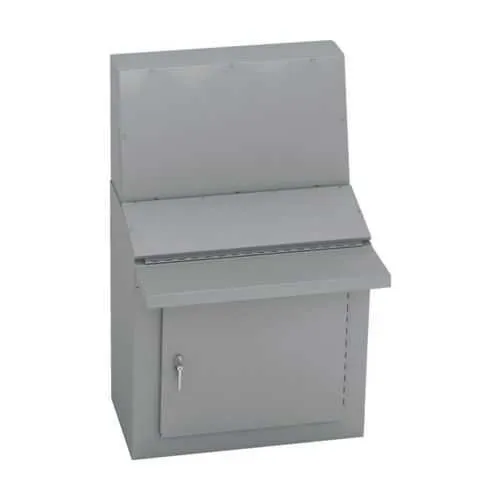

Eaton AC-1472B Console Enclosures - NEMA 12 UL 508A
Part Number: AC-1472B
Quick Summary
Eaton AC-1472B console enclosures protect electrical gear in industrial control rooms and harsh manufacturing environments. Facilities often struggle with corrosion resistance, secure access, and regulatory compliance in demanding settings. It carries UL 508A, CSA C22.2, and a NEMA 12 rating, reinforcing safety and performance. Designed for the B-Line series with ground mounting, hinged doors, and a 3-point latching system, this enclosure supports reliable, long-term operation. With carbon steel construction and an oil-resistant gasket, it delivers durable protection while helping teams meet code requirements and minimize maintenance costs in demanding facilities.
Product Information
Extended Description
AC-1472B Eaton: Eaton B-Line series console enclosures and accessories, 50" height, 72" length, 23" width, NEMA 12, Hinged cover, AC-14 Console, Ground mount, Medium double door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-1472B
UPC
782051425727
Product Length/Depth
72 in
Product Height
50 in
Product Width
23 in
Product Weight
317.6 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium double door
Model
AC-14 Console
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key locking
Closure type
Hinged
Special features
3-pt latching handle, plated screws
NEMA Rating
12
Country of origin
US
Feature: 14 gauge carbon steel construction with a painted ANSI 61 gray finish and 14 gauge wall thickness. Business Impact: exceptional strength and corrosion resistance for long service life in demanding environments, reducing repaint and replacement costs. Application: factory floors, switchgear rooms, and outdoor-rated cabinets in moderate climates. Feature: NEMA 12 rating with UL 508A and CSA C22.2 listings. Business Impact: protects sensitive electrical equipment from dust, splashes, and incidental moisture, improving reliability and uptime. Application: indoor industrial plants, automation panels, and control housings in harsh environments. Feature: Hinged cover, 3-point latching handle, and key locking. Business Impact: secure access and fast service with tamper resistance, lowering risk of unauthorized access while speeding maintenance. Application: live-control panels, drive cabinets, and mission-critical enclosures on the factory floor. Feature: Ground mounting design and absence of internal mounting provisions. Business Impact: simple, stable installation with flexible base options and straightforward field retrofits. Application: floor-mounted installations in existing facilities or new-builds where freestanding enclosures are preferred. Feature: Oil-resistant gasket and rugged exterior. Business Impact: maintains environmental integrity in oily or humid settings, reducing leaks and corrosion-related downtime. Application: machine shops, steel mills, and chemical-processing environments where gasketing resistance matters. Feature: B-Line compatibility and accessories readiness. Business Impact: streamlined procurement and rapid integration with Eaton accessories, improving project schedules and maintenance planning. Application: system integration in control rooms and equipment bays where modularity matters.
Get a Quick Quote for a Eaton AC-1472B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-1472B?
Enquire Now
FAQs
AC-1472B uses ground mounting and does not include internal mounting provisions for equipment. For installation, prepare a solid, level foundation and anchor the enclosure securely to the floor or base. This freestanding configuration supports straightforward placement in data rooms or on the shop floor while allowing easy relocation if facility layouts change.
Yes, the AC-1472B carries a NEMA 12 rating, providing protection against dust, light splashing, and incidental moisture in indoor settings. It also carries UL 508A and CSA C22.2 listings, confirming electrical safety and mechanical integrity for industrial control panels and automation equipment in typical manufacturing environments.
The enclosure features key locking and a 3-point latching handle to secure access, along with an oil-resistant gasket to maintain enclosure integrity in oily or humid environments. The hinged cover enables quick, tool-free door operation, while the 14-gauge carbon steel shell provides rugged protection for sensitive components in harsh facilities.
The AC-1472B measures 50 inches in height, 72 inches in length, and 23 inches in width, with a weight of approximately 317.6 pounds. These dimensions support generous internal space for control panels and cable management, while the substantial weight indicates a sturdy, vibration-resistant installation suitable for floor mounting.
AC-1472B is certified to UL 508A and CSA C22.2 standards and carries a NEMA 12 enclosure rating, confirming compliance for electrical equipment enclosures in industrial settings. Manufactured in the US, these credentials aid with regulatory audits and supplier qualification during plant modernization or upgrades.
