Eaton AC-16C20 Consolet Enclosures - NEMA 12, UL Listings
Part Number: AC-16C20
Quick Summary
Eaton AC-16C20 Consolet Enclosures provide rugged, surface-mounted housing for electrical components in industrial control panels. This enclosure line simplifies panel layout while protecting sensitive electronics from dust, debris, and moisture. Contractors often struggle with fitting large components into tight spaces and ensuring fast, secure access to wiring; the AC-16C20 addresses those challenges with a hinged cover and external mounting feet for quick installation. Built to UL 508A and CSA C22.2, with a NEMA 12 rating, these enclosures meet demanding safety and reliability standards. The B-Line series design emphasizes durable carbon steel construction and a painted ANSI 61 gray finish, delivering long-term protection in harsh environments. It also aligns with common procurement workflows through standard sizes and straightforward mounting.
Product Information
Extended Description

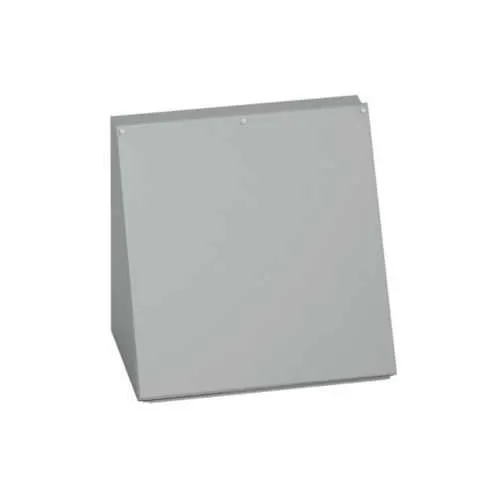

AC-16C20 Eaton: Eaton B-Line series consolet enclosures, 16" height, 11.12" length, 20" width, NEMA 12, Hinged cover, AC concolet, Surface mount, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-16C20
UPC
782051410105
Product Length/Depth
11.12 in
Product Height
16 in
Product Width
20 in
Product Weight
25.2 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC consolet
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous hinge, plated screws
NEMA Rating
12
Country of origin
US
Feature: Carbon steel construction with a 14 gauge wall and ANSI 61 gray painted finish. Business Impact: Provides robust mechanical protection against impact and corrosion, lowering maintenance costs and downtime in demanding environments. Application: Suitable for factory automation panels and process control cabinets where longevity matters. Feature: 16 in height, 20 in width, 11.12 in depth with a NEMA 12 rating. Business Impact: Optimizes internal layout for large components while delivering reliable enclosure protection against dust and light moisture. Application: Ideal for surface-mounted control housings in machine rooms and assembly lines.
Get a Quick Quote for a Eaton AC-16C20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-16C20?
Enquire Now
FAQs
To install, position the enclosure on the mounting surface, align with the external mounting feet, and secure using suitable fasteners. Use the hinged cover for quick wiring access and ensure a proper gasket seal to maintain NEMA 12 protection. The external feet allow straightforward mounting without a backbox, speeding up commissioning and service.
The AC-16C20 carries UL 508A and CSA C22.2 certifications and a NEMA rating of 12, which together confirm electrical safety, reliability, and environmental protection for indoor industrial settings. Compliance supports safe operation in dust-prone and mildly moist environments and aligns with common industrial codes and procurement requirements.
Yes. The enclosure features a continuous (Continous) hinge and plated screws as part of its standard hardware. This combination enhances door alignment, repeated access reliability, and corrosion resistance of fasteners, contributing to longer service life in harsh manufacturing environments and simplifying field maintenance.
Constructed from carbon steel with a 14 gauge wall thickness, the AC-16C20 is finished in ANSI 61 gray paint. This combination delivers robust mechanical protection, chemical resistance from the oil-resistant gasket, and a durable exterior suitable for long-term use in industrial facilities where exposure to dust and debris is common.
The rugged carbon steel body, hinged cover for fast access, and external mounting feet reduce installation time and routine servicing costs. Compliance with UL 508A CSA C22.2 NEMA 12 minimizes regulatory risk, while the durable finish lowers repainting and corrosion-related downtime, delivering a favorable total cost of ownership in continuous operation environments.
