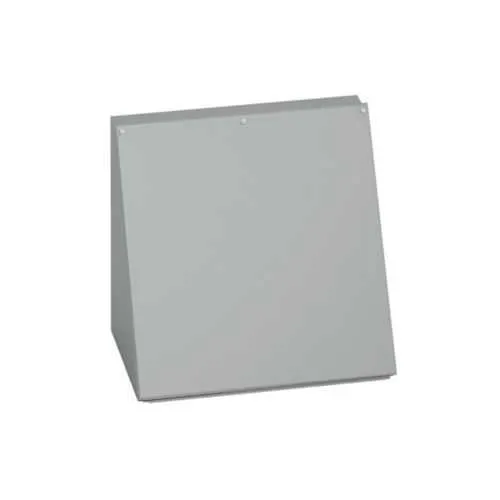

Eaton AC-16C20SS Consolet Enclosures - NEMA 12
Part Number: AC-16C20SS
Quick Summary
Eaton AC-16C20SS consolet enclosures protect control panels in harsh industrial environments while keeping service calls to a minimum. In many facilities, corrosion, leaks, and difficult maintenance shorten equipment life and drive up downtime costs; these enclosures address those pain points with durable construction and a corrosion-resistant finish. They are built to UL 508A and CSA C22.2 standards and carry a NEMA 12 rating, providing reliable dust, water, and oil resistance for demanding applications. The combination of surface mounting, external feet, and a screw-access cover further simplifies installation, inspection, and routine servicing. For OEMs and integrators, this means faster commissioning, consistent compliance, and lower total cost of ownership over the asset lifecycle.
Product Information
Extended Description
AC-16C20SS Eaton: Eaton B-Line series consolet enclosures, 16" height, 11.12" length, 20" width, NEMA 12, Screw cover, ACSS concolet, Surface mounted, Medium single door, External mounting feet, 304 stainless steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-16C20SS
UPC
782051143270
Product Length/Depth
11.12 in
Product Height
16 in
Product Width
20 in
Product Weight
25.8 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
14 gauge
Finish color
#4 brushed
Color
Gray
Style
Medium single door
Model
ACSS consolet
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Continous hinge
Special features
Stainless screws
NEMA Rating
12
Country of origin
US
Feature 304 stainless steel construction and 14 gauge wall thickness provides exceptional corrosion resistance and structural rigidity, reducing replacement cycles and maintenance costs. This robust shell is ideal for washdown zones in process and food/beverage facilities, where cleanliness and durability are critical. Business Impact: longer enclosure life, lower maintenance spend, and improved uptime. Application: OEM equipment housing in challenging environments where reliability matters. Feature NEMA 12 rating with UL 508A and CSA C22.2 compliance ensures electrical protection and regulatory alignment, cutting risk during audits and enabling safer panel assembly. Applications include industrial automation and machine controls in noisy, dusty plants. Business Impact: compliance confidence and streamlined approvals. Application: control panels subject to normative requirements. Feature Surface mounting with external feet and screw cover enables quick installation and straightforward service access, reducing commissioning time and field labor costs. This design supports modular layouts and easier cable management in tight cabinet footprints. Business Impact: faster project delivery and easier future upgrades. Application: retrofit projects and new equipment installs. Feature Continuous hinge and stainless screws deliver a durable seal and corrosion-resistant fastening, supporting long service intervals and secure access. Business Impact: lower maintenance intervals and enhanced safety. Application: process environments with frequent door access. Feature Dimension set of 16 in height, 20 in width, 11.12 in depth and weight of 25.8 lb, with 304 stainless construction and #4 brushed finish, ensures predictable fit with standard control panels and rack systems. Business Impact: standardized sizing simplifies design-in and footprint planning. Application: panel builders seeking consistent enclosure specs.
Get a Quick Quote for a Eaton AC-16C20SS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-16C20SS?
Enquire Now
FAQs
The AC-16C20SS is designed for surface mounting with external mounting feet, enabling straightforward installation on walls or equipment frameworks. The screw-cover access allows rapid wiring and inspection without compromising the enclosure seal. When planning installations, verify the available mounting holes and ensure the external feet align with the existing mounting surface to maximize stability and serviceability.
This model uses 304 stainless steel with a 14 gauge wall thickness, delivering excellent corrosion resistance and structural rigidity. It measures 16 in height, 20 in width, and 11.12 in depth, weighing 25.8 lb. The enclosure carries a NEMA 12 rating and is built to UL 508A and CSA C22.2 standards, aligning with typical industrial control panel requirements.
Yes. The AC-16C20SS is specified to UL 508A and CSA C22.2 standards, and it carries a NEMA 12 rating, making it suitable for control panels in dusty, oily, and washdown-prone environments. This combination supports compliant panel assembly and reliable operation in many industrial automation applications.
Industries such as manufacturing, packaging, process automation, and food and beverage processing benefit from the AC-16C20SS due to its corrosion resistance, robust stainless construction, and washdown compatibility. It is well-suited for OEM equipment housings, process control panels, and retrofit projects where durable protection and regulatory compliance are essential.
The stainless steel construction and stainless fasteners resist corrosion, reducing maintenance frequency and costs over the asset life. The screw cover and continuous hinge simplify opening for inspection while preserving enclosure integrity. These features contribute to lower downtime, easier servicing, and a favorable total cost of ownership for facilities with demanding environmental conditions.
