Eaton AC-16C24 Consolet Enclosures - NEMA 12, UL 508A
Part Number: AC-16C24
Quick Summary
Eaton AC-16C24 Consolet Enclosures protect control panels in harsh industrial environments. These rugged, surface-mounted housings are designed to withstand dust, oil, and incidental moisture while providing secure access for maintenance and operation. They carry UL 508A, CSA C22.2, and NEMA 12 protection to support compliant, durable installations across manufacturing, processing, and automation facilities. By combining robust carbon steel construction with a painted ANSI 61 gray finish, the AC-16C24 delivers long-term reliability, improved safety, and predictable lifecycle performance. For engineers and procurement teams, this enclosure offers a proven balance of protection, ease of installation, and cost efficiency in mixed-use environments.
Product Information
Extended Description

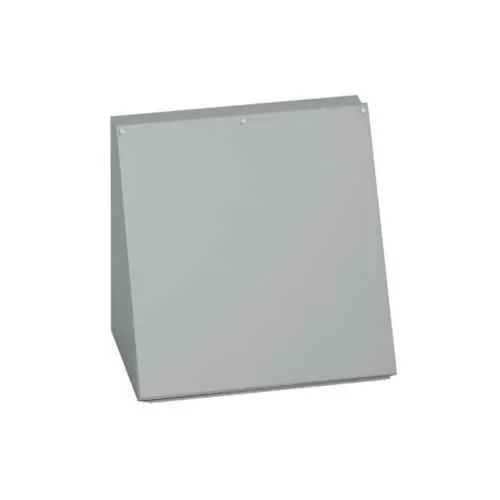

AC-16C24 Eaton: Eaton B-Line series consolet enclosures, 16" height, 11.12" length, 20" width, NEMA 12, Hinged cover, AC concolet, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-16C24
UPC
782051410129
Product Length/Depth
11.12 in
Product Height
16 in
Product Width
20 in
Product Weight
29.2 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC consolet
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous hinge, plated screws
NEMA Rating
12
Country of origin
US
Feature → Business Impact → Application: Carbon steel construction with a 14 gauge wall provides robust physical protection and structural rigidity, reducing damage risks in congested electrical rooms and on factory floors. This translates to lower maintenance costs and extended service life for critical control gear, especially in high-traffic areas and retrofit projects. Feature → Application → Long-term reliability: The ANSI 61 gray painted finish offers corrosion resistance and a clean, professional appearance in indoor environments, supporting compliance with downstream maintenance and audits while preserving enclosure aesthetics in framed installations. Feature → Compliance → Risk reduction: NEMA 12 rating and oil-resistant gasket protect internal components from dust, moisture, and incidental splashing, helping meet dust and oil exposure requirements in process automation, conveyors, and panel assemblies. Feature → Installation → Mounting versatility: Surface mounting with external feet simplifies site preparation and alignment, enabling rapid installation in constrained spaces and reducing field labor time. Feature → Operational efficiency → Access and serviceability: Hinged cover with continuous hinge and plated screws provides reliable, tool-friendly access, minimizing downtime during inspections and component exchanges. Feature → Compatibility → System integration: The enclosure is compatible with standard B-Line mounting patterns and common control panels, easing integration with existing enclosures, accessories, and cable management solutions.
