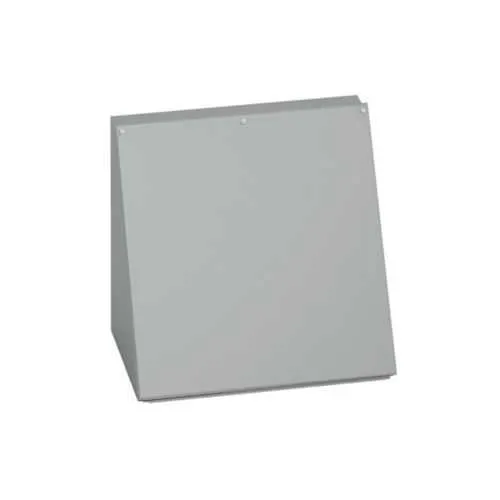

Eaton AC-16C30 Consolet Enclosures - NEMA 12
Part Number: AC-16C30
Quick Summary
AC-16C30 consolet enclosures by Eaton provide robust protection for electrical control panels in industrial environments. Installing durable, code-compliant enclosures that resist oil, dust, and moisture while simplifying mounting can be challenging. UL 508A, CSA C22.2, and NEMA 12 certifications support safe operation and regulatory compliance in harsh plant settings. With a carbon steel body, 14 gauge wall, ANSI gray painted finish, and external mounting feet for surface installation, these enclosures combine durability with installation flexibility. The medium single-door design and hinged cover streamline access, reduce downtime, and improve serviceability for panel builders and maintenance teams in manufacturing and process industries.
Product Information
Extended Description
AC-16C30 Eaton: Eaton B-Line series consolet enclosures, 16" height, 11.12" length, 30" width, NEMA 12, Hinged cover, AC concolet, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-16C30
UPC
782051410143
Product Length/Depth
11.12 in
Product Height
16 in
Product Width
30 in
Product Weight
35.1 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC consolet
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous hinge, plated screws
NEMA Rating
12
Country of origin
US
Feature: Carbon steel enclosure with 14 gauge wall and painted finish. Business Impact: Delivers rigid structural integrity and long service life in oil, dust, and humidity-rich environments. Application: Suitable for factory floor control panels and process line cabinets. Feature: NEMA 12 rating with oil-resistant gasket and continuous hinged cover. Business Impact: Provides reliable protection against dust, light splashing liquids, and ingress, reducing maintenance and ensuring regulatory compliance. Application: Indoor electrical rooms and equipment enclosures in manufacturing. Feature: Surface mounting with external mounting feet. Business Impact: Eases installation in tight spaces and allows quick relocation or reconfiguration of control panels. Application: Wall or pedestal installations in constrained plant layouts. Feature: Hinged cover with plated screws and continuous hinge. Business Impact: Improves serviceability and reduces wear over time, enabling faster, safer access for maintenance and wiring updates. Application: Routine inspections and control panel upgrades. Feature: Dimensions and weight: 16 in height, 30 in width, 11.12 in depth; 35.1 lb. Business Impact: Predictable footprint simplifies layout planning, shipping, and mounting hardware selection. Application: New installations and retrofits in commercial and industrial facilities. Feature: Finish and color: ANSI 61 gray painted carbon steel. Business Impact: Aesthetically matched to industry standards while providing corrosion resistance and easy cleaning in harsh environments. Application: Panel housings in environments with oils, coolants, and dust.
Get a Quick Quote for a Eaton AC-16C30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-16C30?
Enquire Now
FAQs
AC-16C30 features external mounting feet designed for surface mounting, offering straightforward alignment with existing wall or pedestal installations. Ensure adequate clearance for access to the hinged cover and inspections, and verify mounting holes align with the frame’s footprint to avoid rework during retrofits.
Key specs include height 16 in, width 30 in, depth 11.12 in, weight 35.1 lb, 14 gauge carbon steel walls, ANSI 61 gray painted finish, NEMA 12 rating, hinged cover, surface mounting, and external feet. The enclosure supports a medium single door configuration with continuous hinge and plated screws for long service life.
Yes. The NEMA 12 rating provides dust and light oil splash protection suitable for many process environments. The oil-resistant gasket and carbon steel construction offer robust protection, while the hinged cover permits quick access for wiring and maintenance in manufacturing settings.
The enclosure is associated with UL 508A and CSA C22.2 certifications and carries a NEMA rating of 12. These credentials help ensure electrical safety and compliance in industrial facilities, supporting safe installation, operation, and maintenance of control panels.
The durable carbon steel construction, continuous hinge, and oil-resistant gasket reduce routine maintenance and parts replacement. The enclosure’s reliable protection minimizes downtime, improves uptime, and lowers lifecycle costs for panel builders and maintenance teams across manufacturing and process industries.
