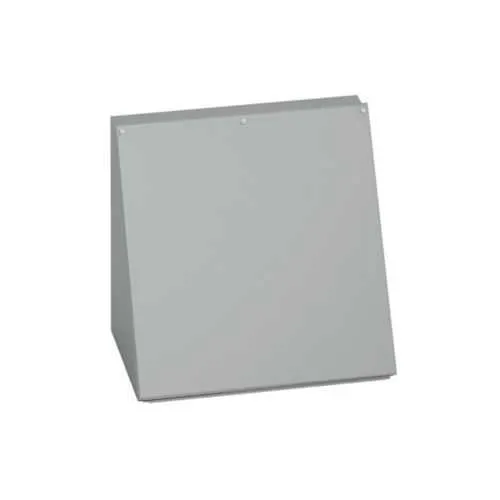

Eaton AC-20C20 Consolet Enclosures - NEMA 12 UL 508A
Part Number: AC-20C20
Quick Summary
Eaton AC-20C20 consolet enclosures protect electrical gear in industrial control panels. Designers and maintenance teams struggle with space constraints, corrosion risk, and limited service access in crowded installations. These enclosures meet UL 508A, CSA C22.2, and NEMA 12 certifications for reliable compliance in manufacturing, food, and process environments. With surface mounting, external feet, and a durable carbon-steel body, they deliver long-term value by simplifying installation and reducing downtime.
Product Information
Extended Description
AC-20C20 Eaton: Eaton B-Line series consolet enclosures, 20" height, 13.12" length, 20" width, NEMA 12, Hinged cover, AC concolet, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-20C20
UPC
782051410204
Product Length/Depth
13.12 in
Product Height
20 in
Product Width
20 in
Product Weight
31 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC consolet
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous hinge, plated screws
NEMA Rating
12
Country of origin
US
Eaton AC-20C20 consolet enclosures combine rugged carbon-steel construction with a 14 gauge wall for dependable protection against dust, impact, and oil exposure, supporting reliable panel operation in harsh facilities. The hinged cover with a continuous hinge and plated screws provides quick, tamper-resistance access, reducing maintenance time while preserving enclosure integrity. External mounting feet and surface mounting compatibility enable fast integration into existing spaces—ideal for wall-mounted control panels in compact plant layouts. The substantial 20 in by 20 in footprint with a 13.12 in depth and a 31 lb weight offer a balanced mix of protection and manageability for technicians installing or retrofitting control housings. The ANSI 61 gray painted finish resists incidental oils and ensures long-term visibility and compliance.
Get a Quick Quote for a Eaton AC-20C20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-20C20?
Enquire Now
FAQs
AC-20C20 supports surface mounting with external mounting feet, allowing quick integration into wall-mounted panels. The hinged cover and 14 gauge carbon steel body provide robust protection while enabling straightforward service access for routine maintenance or component upgrades.
The enclosure is compliant with UL 508A and CSA C22.2 for electrical equipment, and carries a NEMA 12 rating. This combination ensures protection against dust, oil, and ingress in industrial environments, supporting safe operation in manufacturing and processing facilities.
AC-20C20 has a height of 20 inches, width of 20 inches, and depth of 13.12 inches. The enclosure weighs 31 pounds, with a 14 gauge carbon steel wall and ANSI 61 gray painted finish.
Yes. The model includes an oil-resistant gasket and a painted ANSI 61 gray finish, providing resistance to incidental oil exposure and maintaining enclosure integrity in busy production settings.
Absolutely. The surface-mount design with external feet simplifies retrofits into existing control panels. Its medium single-door configuration accommodates standard control components while maintaining security and easy access during upgrades and inspections.
