Eaton AC-20C24 Consolet Enclosures - NEMA 12
Part Number: AC-20C24
Quick Summary
Eaton AC-20C24 consolet enclosures protect electrical controls in industrial environments. On the factory floor, panel access, gasket integrity, and mounting stability are constant challenges that drive maintenance costs and downtime. These enclosures meet UL 508A and CSA C22.2 standards and carry a NEMA 12 rating, with a continuous hinge and plated screws for long-term reliability. With surface mounting, external mounting feet, and a robust carbon steel body, they offer fast installation and predictable service life, making them a practical choice for control panels and automation cabinets.
Product Information
Extended Description

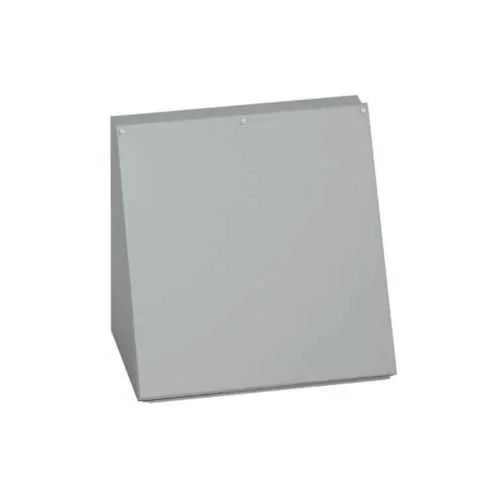

AC-20C24 Eaton: Eaton B-Line series consolet enclosures, 20" height, 13.12" length, 24" width, NEMA 12, Hinged cover, AC concolet, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-20C24
UPC
782051410228
Product Length/Depth
13.12 in
Product Height
20 in
Product Width
24 in
Product Weight
35.7 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC consolet
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous hinge, plated screws
NEMA Rating
12
Country of origin
US
Feature: Robust carbon steel construction with 14 gauge walls and ANSI 61 gray painted finish. Business impact: Delivers durable protection for sensitive electrical components in dusty, oily factory floors, reducing damage and downtime. Application: Ideal for industrial control panels and automation cabinets in manufacturing environments. Feature: Exact 20 in height, 24 in width, and 13.12 in depth with a medium single door configuration. Business impact: Provides ample internal space for drives, terminal blocks, and relays while preserving serviceability. Application: Surface-mounted enclosures for compact control nodes. Feature: Hinged cover with continuous hinge and plated screws. Business impact: Improves long-term access, reduces misalignment risk, and speeds maintenance cycles. Application: Quick, maintenance-friendly access on machine enclosures. Feature: Oil-resistant gasket and NEMA 12 protection. Business impact: Enhances protection against liquids and dust, supporting compliance and uptime. Application: Enclosures in environments with lubricants or moisture exposure. Feature: External mounting feet and surface mounting method. Business impact: Simplifies installation on uneven floors and minimizes installation time. Application: Factory floor and control room installations that require fast, secure mounting. Feature: Certifications including UL 508A, CSA C22.2, and NEMA ratings. Business impact: Ensures regulatory compliance and eases procurement for regulated projects. Application: Industrial electrical infrastructure projects requiring certified enclosures.
