Eaton AC-20C30 Enclosures - NEMA 12, Carbon Steel
Part Number: AC-20C30
Quick Summary
Eaton B-Line consolet enclosures protect control panels in industrial settings. Operators face corrosion, downtime, and cluttered wiring that slow deployment and increase risk. UL 508A and CSA C22.2 certifications, together with a NEMA 12 rating, support safety and regulatory compliance. The rugged carbon steel enclosure with 14 gauge walls and a hinged continuous cover reduces maintenance costs while simplifying installation. Designed for surface mounting with external feet, AC-20C30 aligns with the B-Line portfolio to streamline upgrades and spare-part compatibility. This makes it a practical choice for panel builders and OEMs seeking reliable, code-compliant enclosures that can be serviced quickly.
Product Information
Extended Description

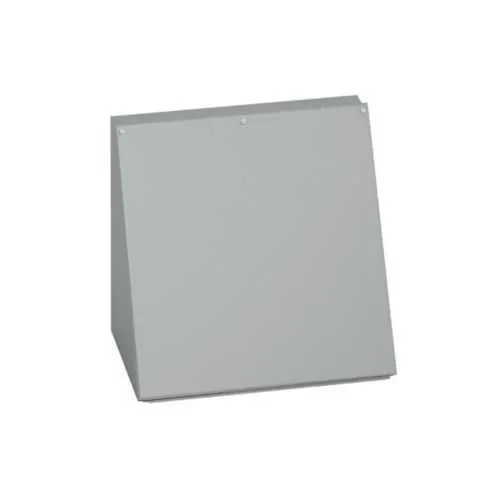

AC-20C30 Eaton: Eaton B-Line series consolet enclosures, 20" height, 13.12" length, 30" width, NEMA 12, Hinged cover, AC concolet, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-20C30
UPC
782051410242
Product Length/Depth
13.12 in
Product Height
20 in
Product Width
30 in
Product Weight
42.8 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC consolet
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous hinge, plated screws
NEMA Rating
12
Country of origin
US
Feature: The AC-20C30 enclosure offers 20 in height, 30 in width, and 13.12 in depth for mid-size control panels. Business Impact: This dimensional footprint optimizes cabinet real estate, improves cable management, and supports easier component layout, which can shorten wiring times and reduce field errors. Application: Ideal for surface-mounted installations in machine rooms, packaging lines, and process panels where space is constrained but access must be preserved. Feature: Hinged cover with continuous hinge and oil-resistant gasket provides a secure seal against dust and moisture. Business Impact: Enhances reliability in harsh environments and reduces re-work from environmental intrusion. Application: Suitable for indoor process plants and automated lines requiring long service intervals. Feature: External mounting feet simplify installation and align with standardized mounting patterns. Business Impact: Cuts mounting time and minimizes field modifications, enabling faster panel upgrades. Application: Factory floors and service areas where on-site adjustments are common. Feature: Carbon steel construction with 14 gauge walls and ANSI 61 gray paint finish delivers durable protection. Business Impact: Extends enclosure life in demanding environments and lowers total cost of ownership through fewer replacements. Application: Industrial automation controls in manufacturing, packaging, and material handling. Feature: UL 508A and CSA C22.2 certifications with a NEMA 12 rating ensure compliance and safety. Business Impact: Helps meet regulatory requirements and reduces risk during audits. Application: Electrical subpanels, PLCs, and drive controllers in compliant facilities. Feature: Surface mounting with external feet and a medium single-door model supports flexible deployment. Business Impact: Facilitates modular installations and scalable upgrades. Application: OEM builds and retrofit projects in machine shops and assembly lines.
