Eaton AC-8C20 Enclosure - NEMA 12 UL 508A Certification
Part Number: AC-8C20
Quick Summary
AC-8C20 enclosures from Eaton protect electrical gear in industrial control panels and wiring closets. This design addresses common downtime and contamination concerns by delivering robust protection in challenging environments. It carries UL 508A, CSA C22.2, and NEMA ratings to ensure safe, compliant operation across demanding applications. The surface-mount geometry, external mounting feet, and continuous hinge lid streamline installation, servicing, and future upgrades. For engineers and procurement professionals, the combination of a carbon steel body, precise 14 gauge wall thickness, and painted ANSI 61 gray finish translates to predictable performance, easier sourcing, and reduced maintenance costs over the life of the panel.
Product Information
Extended Description

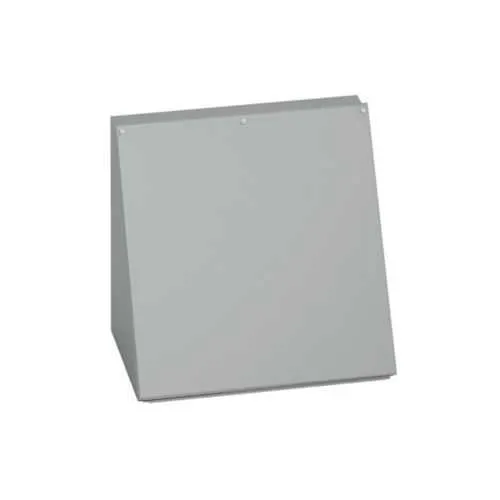

AC-8C20 Eaton: Eaton B-Line series consolet enclosures, 8" height, 7.12" length, 20" width, NEMA 12, Hinged cover, AC concolet, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-8C20
UPC
782051410389
Product Length/Depth
7.12 in
Product Height
8 in
Product Width
20 in
Product Weight
14.5 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC consolet
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous hinge, plated screws
NEMA Rating
12
Country of origin
US
Feature: Carbon steel construction with 14 gauge wall thickness. Business Impact: Provides durable, impact-resistant enclosure capable of withstanding industrial vibrations and harsh environments, reducing field replacements. Application: Ideal for control panels in manufacturing and packaging lines that demand long service life. Feature: NEMA 12 rating with oil-resistant gasket and hinged cover. Business Impact: Delivers superior protection against dust, water, and oil intrusion, minimizing downtime and maintenance. Application: Wet or dusty plant floors, machine rooms, and electrical rooms requiring ingress protection. Feature: Continuous hinge and plated screws. Business Impact: Enhances durability, reduces door misalignment, and speeds maintenance routines with reliable, repeatable access. Application: Frequent panel access scenarios in automation setups. Feature: Surface mounting with external feet. Business Impact: Simplifies mounting on walls or cabinets, enabling flexible layouts and fast retrofits. Application: Retrofit projects and new installations where quick deployment matters. Feature: Medium single-door, AC consolet model. Business Impact: Balances space efficiency with serviceability for mid-size control panels, improving workspace ergonomics. Application: Industrial automation cabinets and electrical infrastructure rooms.
Get a Quick Quote for a Eaton AC-8C20
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-8C20?
Enquire Now
FAQs
The AC-8C20 is a surface-mount enclosure measuring 8 in high, 20 in wide, and 7.12 in deep, built from 14-gauge carbon steel with a painted finish (ANSI 61 gray). It weighs approximately 14.5 lb and features external mounting feet for quick installation.
Yes. The AC-8C20 carries UL 508A and NEMA 12 ratings, along with CSA C22.2, ensuring compliant protection for electrical components in industrial environments.
Yes. It is designed for surface mounting and includes external mounting feet to simplify installation on walls or support structures. The hinged cover and continuous hinge also ease access during maintenance.
This enclosure is well-suited for control panels, automation cabinets, and other electrical infrastructure in manufacturing, process automation, and energy-management environments where robust protection and easy service access are required.
Official documentation is available via Eaton’s download links, including the Pushbutton Enclosure operator catalog and the Eaton Specification Sheet for AC-8C20, which provide detailed dimensions, materials, and installation guidelines.
