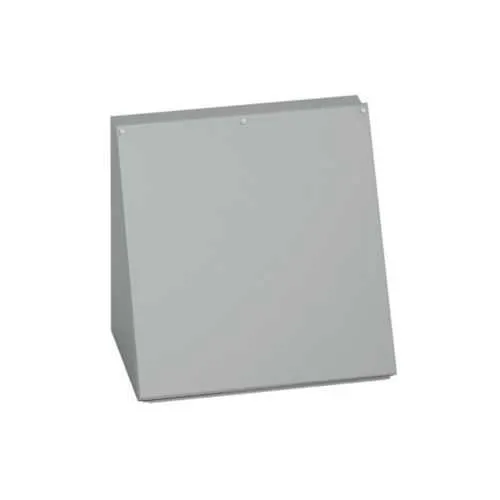

Eaton AC-8C20SS Consolet Enclosures - NEMA 12
Part Number: AC-8C20SS
Quick Summary
The Eaton AC-8C20SS consolet enclosure is a rugged stainless-steel solution for protecting electrical controls in industrial environments. It helps address corrosion, downtime, and ingress challenges that plague harsh washdown or oily production lines. UL 508A, CSA C22.2, and NEMA ratings underpin reliable compliance and safe operation across OEMs and integrators. With 304 stainless steel construction, 14 gauge walls, and a surface-mount design, it delivers long service life and simple installation, while ensuring easy maintenance and compatibility with Eaton B-Line accessories for scalable control panels.
Product Information
Extended Description
AC-8C20SS Eaton: Eaton B-Line series consolet enclosures, 8" height, 7.12" length, 20" width, NEMA 12, Screw cover, ACSS concolet, Surface mounted, Medium single door, External mounting feet, 304 stainless steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-8C20SS
UPC
782051140897
Product Length/Depth
7.12 in
Product Height
8 in
Product Width
20 in
Product Weight
14.8 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
304 stainless steel
Wall thickness
14 gauge
Finish color
#4 brushed
Color
Gray
Style
Medium single door
Model
ACSS consolet
Cover type
Screw
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Continous hinge
Special features
Stainless screws
NEMA Rating
12
Country of origin
US
Durable stainless-steel construction provides outstanding corrosion resistance in washdown and chemical exposure areas, extending service life and reducing replacement costs for food & beverage, pharmaceutical, and general manufacturing facilities. The 14 gauge wall thickness delivers robust stiffness and protection without adding excessive enclosure mass, improving installation efficiency and panel integrity in tight spaces. The NEMA 12 rating protects internal components from dust, light oil, and splashes, minimizing downtime and ensuring reliable operation in demanding environments. Surface mounting with external feet simplifies retrofits and new installs, saving time during integration and enabling quick alignment in crowded switchgear rooms. A screw cover and continuous hinge seal out contaminants while maintaining access for maintenance, while the oil-resistant gasket enhances long-term sealing performance under process fluids. Stainless steel screws and a #4 brushed finish contribute to sustained aesthetics and corrosion resistance in harsh climates. This consolet enclosure is designed to accommodate standard control hardware and Eaton B-Line accessories, delivering compatibility and scalable configurations for evolving automation needs.
Get a Quick Quote for a Eaton AC-8C20SS
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-8C20SS?
Enquire Now
FAQs
The AC-8C20SS consolet enclosure measures 8 inches in height, 7.12 inches in depth, and 20 inches in width. It is surface-mounted with external mounting feet, designed for quick installation in constrained spaces and for straightforward retrofits alongside existing control panels.
Yes. Constructed from 304 stainless steel with a 14 gauge wall, and featuring an oil-resistant gasket, screw cover, and continuous hinge, the AC-8C20SS provides robust ingress protection and corrosion resistance appropriate for washdown and oil-prone industrial settings.
The enclosure aligns with UL 508A and CSA C22.2 safety standards and carries a NEMA rating of 12, indicating protection against dust, splashes, and light oil exposure. These certifications support compliance in regulated manufacturing and automation environments.
Absolutely. The surface-mount design pairs with external feet and compatible Eaton B-Line accessories, enabling flexible mounting configurations, easier cable management, and scalable layouts for evolving control architectures.
The enclosure uses 304 stainless steel with a 14 gauge wall and a #4 brushed finish in gray. This combination delivers durability, low maintenance, and an aesthetically consistent appearance in industrial environments while supporting long service life in corrosive or demanding settings.
