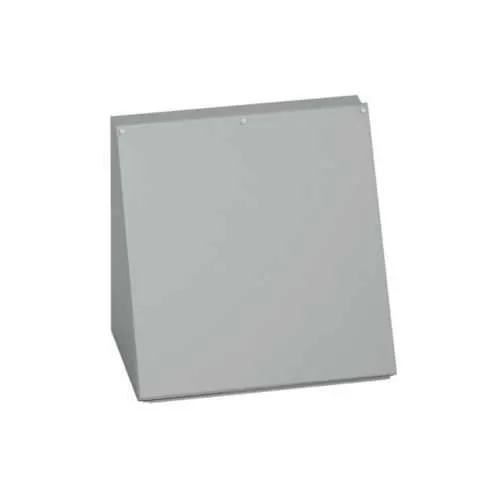

Eaton AC-8C8 Enclosures - NEMA 12
Part Number: AC-8C8
Quick Summary
Eaton AC-8C8 Enclosures provide rugged, surface-mounted control housings for industrial electrical panels. When space is tight and exposure to dust, oil, or moisture threatens uptime, a dependable enclosure is essential. These units are UL 508A and CSA C22.2 certified with a NEMA 12 rating, ensuring safety and protection in harsh environments. As part of the Eaton B-Line series consolet enclosures, this model combines robust carbon steel construction with a durable painted finish, delivering reliable performance and straightforward integration into existing panel architectures while supporting scalable automation projects.
Product Information
Extended Description
AC-8C8 Eaton: Eaton B-Line series consolet enclosures, 8" height, 7.12" length, 8" width, NEMA 12, Hinged cover, AC concolet, Surface mounted, Medium single door, External mounting feet, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series consolet enclosures
Catalog Number
AC-8C8
UPC
782051410402
Product Length/Depth
7.12 in
Product Height
8 in
Product Width
8 in
Product Weight
7.2 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC consolet
Cover type
Hinged
Mounting method
Surface
Mounting hole details
External mounting feet
Closure type
Hinged
Special features
Continous hinge, plated screws
NEMA Rating
12
Country of origin
US
Feature: NEMA 12 rating with an oil-resistant gasket. Business Impact: it keeps dust, moisture, and lubricants from reaching sensitive components, lowering maintenance needs and extending service life. Application: ideal for machine control panels in automotive, food processing, and general manufacturing environments. Feature: 14 gauge carbon steel walls and a painted ANSI 61 gray finish provide durable physical protection. Business Impact: the heavy-wall construction resists impact in busy plant corners, while the finish offers long-term corrosion resistance under typical manufacturing exposure. Application: suitable for wall- or surface-mounted enclosures near conveyors, presses, and robotics stations. Feature: Hinged cover with a continuous hinge and plated screws. Business Impact: delivers quick access for routine maintenance and wiring terminations without compromising security. Application: preferred for control panels in high-turnover maintenance environments. Feature: Surface mounting with external feet. Business Impact: installation flexibility in tight spaces and on various surfaces. Application: overhead, wall, or pedestal integrations in limited-access areas. Feature: Compact 8x8x7.12 in footprint with a 7.2 lb weight. Business Impact: minimizes enclosure footprint while preserving protective capabilities. Application: ideal for small control panels and space-constrained automation layouts. Feature: Certifications including UL 508A, CSA C22.2, and NEMA 12. Compliance Impact: supports safety audits and regulatory alignment across industrial facilities. Application: suitable for rigorous manufacturing environments and multi-site deployments.
Get a Quick Quote for a Eaton AC-8C8
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-8C8?
Enquire Now
FAQs
The AC-8C8 is expressly designed for surface mounting and uses external mounting feet, enabling straightforward installation on walls or machine frames. It integrates with standard B-Line accessories for wiring space planning and quick service access in automation environments.
The enclosure measures 8 inches in height and width, with a 7.12 inch depth, and weighs 7.2 pounds. This compact footprint provides solid protection for control components while fitting in tight panel areas.
The AC-8C8 carries UL 508A and CSA C22.2 certifications along with a NEMA 12 rating. These attest to electrical safety, enclosure integrity, and suitability for dusty, moist, or oily industrial environments, supporting compliance and audits.
Yes. The AC-8C8 features an oil-resistant gasket that helps seal out lubricants and hydrocarbons, reducing risk of lubricant ingress and extending service life in automated machinery areas.
Common uses include industrial automation panels, machine control cabinets, and process equipment enclosures where reliable protection, easy maintenance access, and quick installation are required in manufacturing environments.
