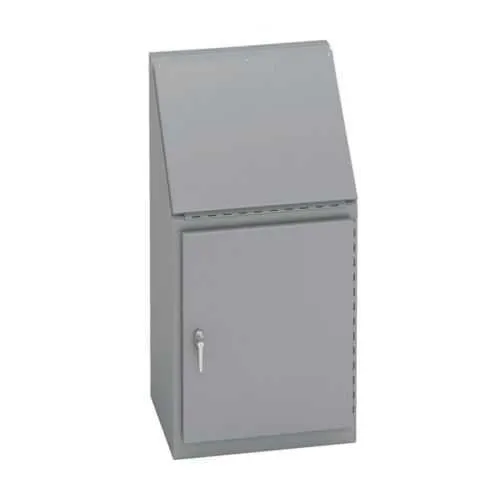

Eaton AC-936B Console Enclosure - NEMA 12
Part Number: AC-936B
Quick Summary
AC-936B is an Eaton B-Line console enclosure that protects control panels in industrial settings. Facility teams often struggle with mounting options, secure access control, and routine maintenance in demanding environments. UL 508A, CSA C22.2, and a NEMA 12 rating establish robust compliance and rugged protection for dusty or oil-laden indoor applications. Ground mounting with a hinged cover, combined with 14-gauge carbon steel and an ANSI 61 gray finish, delivers long service life and straightforward installation. This enclosure is well suited for machine control cabinets and automation panels, helping reduce downtime and simplify compliance documentation. Its 48 in height, 36 in width, and 18 in depth align with common control layouts.
Product Information
Extended Description
AC-936B Eaton: Eaton B-Line series console enclosures and accessories, 48" height, 18" length, 36" width, NEMA 12, Hinged cover, AC-9 Console, Ground mount, Medium single door, No mounting provisions, Carbon steel, Oil-resistant gasket
Product Name
Eaton B-Line series console enclosures and accessories
Catalog Number
AC-936B
UPC
782051427028
Product Length/Depth
18 in
Product Height
48 in
Product Width
36 in
Product Weight
142.3 lb
Certifications
UL 508A CSA C22.2. NEMA
Material
Carbon steel
Wall thickness
14 gauge
Finish color
Painted
Color
ANSI 61 gray
Style
Medium single door
Model
AC-9 Console
Cover type
Hinged
Mounting method
Ground
Mounting hole details
No mounting provisions
Locking provisions
Key locking
Closure type
Hinged
Special features
3-pt latching handle, plated screws
NEMA Rating
12
Country of origin
US
Large dimensions and a robust 14-gauge carbon steel wall provide ample interior space for standard control panels while resisting impact and abuse in busy plant environments. The 18 inch depth, 36 inch width, and 48 inch height support layout flexibility for swing-out components and cable management, improving wire routing and service access. Mounting method is ground-based and there are no built-in mounting provisions, which simplifies site adaptation but may require a custom base or mounting brackets. Security is enhanced by key locking and a 3-point latching handle with plated screws, reducing tampering risk and supporting regulated access control for sensitive automation equipment. The enclosure’s NEMA 12 rating, plus an oil-resistant gasket, delivers dust and oil protection for indoor applications, minimizing maintenance. The painted ANSI 61 gray finish reduces corrosion concerns and provides a professional, code-compliant appearance for factory floors. As part of the Eaton B-Line family, AC-936B offers compatibility with AC-9 Console components and similar mid-size enclosures, enabling scalable, modular control rooms. This combination translates to lower total cost of ownership by decreasing downtime, simplifying installation, and improving long-term reliability in industrial environments.
Get a Quick Quote for a Eaton AC-936B
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC-936B?
Enquire Now
FAQs
AC-936B is designed for ground mounting with no built-in mounting provisions. For installation, use a compatible base or brackets on the floor or a designated base system, ensuring the enclosure remains stable and aligned with service access.
AC-936B carries a NEMA 12 rating, which protects against dust and light oil ingress in indoor environments. It is not rated for outdoor or washdown/barrier-intensive conditions; for harsher environments, consider a higher NEMA rating enclosure and appropriate protection.
The enclosure measures 18 inches in depth, 36 inches in width, and 48 inches in height, with a listed weight of 142.3 lb. It uses 14-gauge carbon steel and features a hinged cover with a painted ANSI 61 gray finish.
The AC-936B includes key locking and a 3-point latching handle with plated screws, providing tamper resistance and reliable access control for sensitive automation equipment.
Eaton provides a specification sheet and a pushbutton-enclosure operator catalog that includes AC-936B details. The datasheets cover product features, dimensions, certifications (UL 508A, CSA C22.2, NEMA), and installation guidance.
