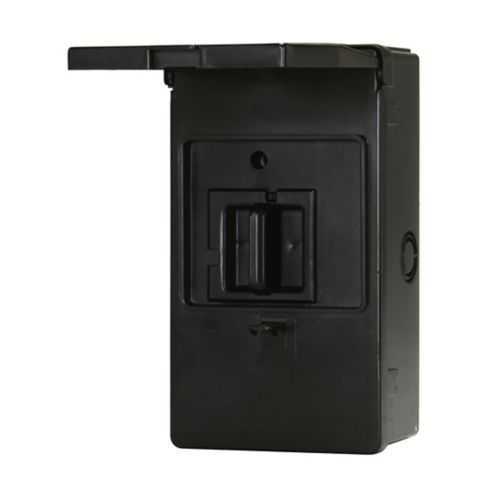

Eaton AC222RNMP Air Conditioning Disconnect - UL Listed
Part Number: AC222RNMP
Quick Summary
AC222RNMP Eaton air conditioning disconnect is a dedicated 60A fused pullout designed for 120/240 V outdoor or indoor equipment. This product helps installers safely isolate power to commercial and residential AC units, reducing the risk of arc-flash and accidental energization. The unit carries UL Listed and CSA Certified markings, and its NEMA 3R polycarbonate enclosure stands up to weather, impact, and UV exposure. With DIY packaged packaging for retail, it also streamlines procurement and on-site install. By combining a compact 5 in depth, 3.5 in width, and 8.63 in height with a 10 kAIC interrupt rating, it supports compliant, reliable performance while keeping wiring simple for #14-2 Cu/Al on 120/240 V systems. This translates to faster projects and fewer field adjustments.
Product Information
Extended Description
AC222RNMP Eaton: Eaton air conditioning disconnect, Fused pullout, DIY packed, 60A, 120/240V, 10 kAIC, #14-2 Cu/Al 60°C or 75°C, NEMA 3R Polycarbonate enclosure, 3 hp at 120V, 10 hp at 240V, Black
Product Name
Eaton air conditioning disconnect
Catalog Number
AC222RNMP
UPC
786676406253
Product Length/Depth
5 in
Product Height
8.63 in
Product Width
3.5 in
Product Weight
15 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Catalog Notes
Packaged for retail sale. DIY Packaged
Special features
DIY packed
Type
Fused pullout
Amperage Rating
60A
Horsepower
3 hp at 120 V, 10 hp at 240 V
Voltage rating
120/240 V
Wire size
#14-2 AWG Cu/Al
Color
Black
Enclosure
NEMA 3R
Enclosure material
Polycarbonate
Interrupt rating
10 kAIC
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - AC222RNMP
Feature: Fused pullout design for safe, visible isolation. Business Impact: Reduces fault propagation and enables straightforward service procedures, lowering downtime during HVAC maintenance. Application: Ideal for residential and light commercial air conditioning installs where quick disconnection is required. Feature: 60A amperage rating with 3 hp at 120 V and 10 hp at 240 V. Business Impact: Supports common HVAC loads with minimal voltage drop, improving overall system reliability. Application: Suitable for 120/240 V circuits in outdoor or semi-protected environments. Feature: NEMA 3R Polycarbonate enclosure. Business Impact: Weather and impact resistance translates to longer service life in exposed installations. Application: Outdoor condensers and protected mechanical rooms benefit from durable enclosures. Feature: Wire size compatibility #14-2 Cu/Al and termination up to 60°C or 75°C. Business Impact: Simplifies field wiring and reduces termination errors, speeding up installation. Application: Aligns with standard HVAC conductor runs for reliable operation. Feature: 10 kAIC interrupt rating. Business Impact: High fault-current withstand ensures safer shutdown during short circuits. Application: Critical for electrical protection in service entrances and equipment disconnects. Feature: DIY packaged for retail. Business Impact: Streamlines procurement and reduces on-site fabrication, cutting project lead times. Application: Great fit for contractor stock and rapid installations in residential and light commercial projects. Feature: Certifications UL Listed and CSA Certified. Business Impact: Meets stringent safety and performance standards, supporting compliance audits. Application: Required for code-backed installations and warranty enforcement. Feature: Compact dimensions (5 in depth, 3.5 in width, 8.63 in height) and black finish. Business Impact: Space-efficient design simplifies enclosure layouts and aesthetic integration. Application: Mounting in tight electrical spaces and service panels.
Get a Quick Quote for a Eaton AC222RNMP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AC222RNMP?
Enquire Now
FAQs
AC222RNMP is designed for 60A HVAC circuits using #14-2 Cu/Al conductors and supports 120/240 V operation. Its fused pullout, NEMA 3R enclosure, and 10 kAIC interrupt rating align with common Eaton and standard electrical panels, simplifying retrofit installs. Ensure enclosure clearance and proper terminal torque per spec sheet, and verify external disconnect interlock if required by local code.
Key specs include a 60A amperage rating, 120/240 V voltage rating, 3 hp at 120 V and 10 hp at 240 V, #14-2 Cu/Al wire size, NEMA 3R polycarbonate enclosure, 10 kAIC interrupt rating, and UL Listed plus CSA Certified certifications. This combination supports safe operation for residential and light commercial HVAC disconnect needs while meeting common industry standards.
Yes. The NEMA 3R polycarbonate enclosure is weather-rated for outdoor or damp environments, providing robust protection against rain, corrosion, and impact. The 60A fused pullout supports outdoor condensers and other external equipment, and the UL Listed/CSA Certified status ensures regulatory compliance for outdoor installations in residential and light commercial settings.
AC222RNMP carries UL Listed and CSA Certified markings, signaling adherence to recognized safety and performance standards. These certifications facilitate code compliance, insurance approvals, and warranty validity, and they reassure procurement teams and installers that the disconnect meets national safety requirements for electrical protection in HVAC applications.
The DIY packaged design reduces procurement lead times and on-site labor, speeding up installation for residential and light commercial projects. Its durable enclosure, high interrupt rating, and compatibility with common conductor sizes help minimize field revisions and maintenance costs, delivering faster project completion and improved long-term reliability for HVAC disconnects.
