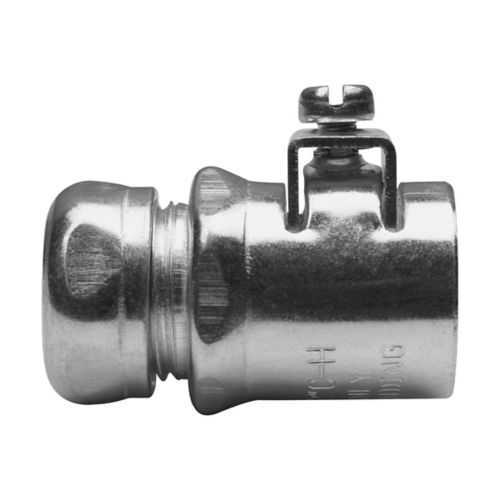

Eaton ACC75 Coupling - EMT to AC/MC/FMC, Combination type
Part Number: ACC75
Quick Summary
The Eaton ACC75 Coupling is a combination EMT to AC/MC/FMC conduit connector for industrial electrical installations. Mismatched fittings and slow assembly can delay projects and raise labor costs. It carries NEC/CEC compliance and Ordinary/Non-Hazardous area ratings, with UL Canada certification supporting safe installations. This rugged steel coupling also aligns with 3/4 in trade size demands, offering reliable performance for contractors and OEMs.
Product Information
Extended Description
ACC75 Eaton: Eaton Crouse-Hinds series ACC combination coupling, EMT (compression) to AC/MC/FMC (saddle clamp), Steel, Combination type, 3/4"-3/4"
Product Name
Eaton Crouse-Hinds series ACC combination coupling
Catalog Number
ACC75
UPC
784564003201
Product Length/Depth
2.15 in
Product Height
1.39 in
Product Width
1.3 in
Product Weight
0.16 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
EMT, AC/MC and FMC
Style
Combination
Combination type
EMT (compression) to AC/MC/FMC (saddle clamp)
Trade size
3/4"-3/4"
Material
Steel
Crouse-Hinds series Combination Couplings - EMT catalog page
Combination Couplings - EMT Canadian certification
Combination Couplings - EMT Canadian certification
Eaton Specification Sheet - ACC75
Steel construction delivers mechanical strength and long service life. This rugged steel body reduces replacement cycles and maintenance costs. Ideal for control cabinets and conduit runs in factory floors where sturdiness matters. Compatibility and versatility: It accepts EMT compression to AC/MC/FMC via saddle clamp in a single coupling. This simplifies installation and reduces the number of different fittings required, lowering procurement time and on-site complexity. Applications include new builds and retrofit projects in machine rooms and panel assemblies, where fast, reliable connections support tight project schedules. Compact dimensions and light weight: with a length of 2.15 in, height of 1.39 in, width of 1.3 in, and weight about 0.16 lb, it fits tight spaces and supports efficient labor. Certifications and compliance: NEC/CEC aligned and Ordinary/Non-Hazardous area rating ensure code-conforming installations with reduced risk during audits. Documentation and procurement advantages: catalog pages and Eaton specifications simplify design-in and sourcing for engineers and procurement teams.
Get a Quick Quote for a Eaton ACC75
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ACC75?
Enquire Now
FAQs
Install ACC75 by aligning EMT conduit into the compression end and tightening the compression mechanism, then secure the saddle clamp to MC or FMC conductors as appropriate. Ensure the fitting is fully seated and that the conduit is supported to prevent movement. Verify NEC/CEC compliance after installation.
ACC75 is a 3/4 inch–3/4 inch combination coupling with steel construction. Dimensions are approximately 2.15 in length, 1.39 in height, and 1.3 in width, with a weight of about 0.16 lb.
ACC75 is rated for Ordinary/Non-Hazardous Locations and complies with NEC/CEC standards. For hazardous locations, verify project-specific classifications and alternative fittings.
ACC75 carries NEC/CEC compliance and UL Canada certification, supporting safe, code-conformant installations in North America and helping streamline regulatory approvals during audits.
Using ACC75 reduces parts count by combining EMT compression with MC/FMC saddle clamp in a single fitting, speeds field installation, lowers labor costs, and simplifies procurement with clear Eaton documentation and catalog references.
