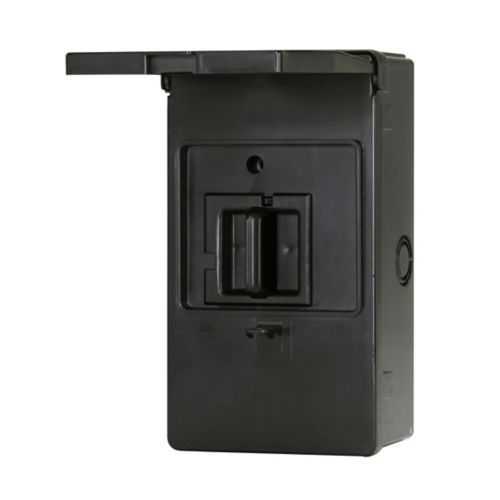

Eaton ACD221RNM Air Conditioning Disconnect - UL Listed
Part Number: ACD221RNM
Quick Summary
Eaton air conditioning disconnect is a fused pullout that provides safe isolation for outdoor HVAC equipment. This solution addresses the common challenge of reliable fault isolation in harsh environments without compromising serviceability. It carries CSA Certified and UL Listed markings for regulatory confidence, and its NEMA 3R polycarbonate enclosure offers weather resistance in rain, dust, and temperature swings. The combination of rugged construction and clear wiring guidance helps maintain uptime, reduce field errors, and support quick maintenance. Secondary benefits include compatibility with #14-2 Cu/Al conductors and 60°C/75°C terminal ratings, enabling straightforward integration into existing electrical protection and circuit control strategies for commercial and light industrial HVAC installations.
Product Information
Extended Description
ACD221RNM Eaton: Eaton air conditioning disconnect, Fused pullout, 30A, 120/240V, 10 kAIC, #14-2 Cu/Al 60°C or 75°C, NEMA 3R Polycarbonate enclosure, 2 hp at 120V, 3 hp at 240V, Black
Product Name
Eaton air conditioning disconnect
Catalog Number
ACD221RNM
UPC
786676405904
Product Length/Depth
5 in
Product Height
8.63 in
Product Width
3.5 in
Product Weight
15 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Catalog Notes
For replacement pullout head, order part number 96-3258-4.
Type
Fused pullout
Amperage Rating
30A
Horsepower
2 hp at 120 V, 3 hp at 240 V
Voltage rating
120/240 V
Wire size
#14-2 AWG Cu/Al
Color
Black
Enclosure
NEMA 3R
Enclosure material
Polycarbonate
Interrupt rating
10 kAIC
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - ACD221RNM
Feature: Fused pullout design provides intentional, protected switching for outdoor HVAC circuits. Business Impact: reduces arc flash exposure and limits fault energy, improving worker safety and system reliability. Application: ideal for rooftop units and exterior condensers where robust isolation is required and service access is frequent. Long-tail keywords integrated include fused pullout, outdoor HVAC disconnect, and arc-flash reduction. Feature: 30A amperage rating with 120/240V capability supports common HVAC loads. Business Impact: matches typical equipment horsepower (2 hp at 120V / 3 hp at 240V) to minimize overdesign and wiring complexity. Application: new installations and retrofits in light commercial environments. Long-tail keywords: 30A disconnect, 120/240V HVAC, HVAC load matching. Feature: 10 kAIC interrupt rating and CSA/UL certifications. Business Impact: ensures compliance with safety standards and enhances supplier credibility in regulated facilities. Application: facilities with stringent procurement requirements and audit-ready documentation. Long-tail keywords: 10 kAIC, CSA certified, UL listed. Feature: NEMA 3R polycarbonate enclosure. Business Impact: superior outdoor durability against weather, impact, and UV exposure, lowering maintenance costs. Application: outdoor rooftops, external walls, and plant exteriors. Long-tail keywords: NEMA 3R polycarbonate, outdoor protection, weather resistant enclosure. Feature: Wiring compatibility with #14-2 Cu/Al and 60°C/75°C terminals. Business Impact: simplifies wiring, reduces installer error, and supports standard conductor practices. Application: upgrades and new builds where common conductors are already in use. Long-tail keywords: #14-2 Cu/Al, 60°C terminals, 75°C terminals. Feature: Replacement head option 96-3258-4 reduces downtime and service costs. Business Impact: streamlines maintenance planning and extends product lifecycle. Application: service fleets and long-term HVAC installations. Long-tail keywords: replacement pullout head, maintenance efficiency, serviceable disconnect.
Get a Quick Quote for a Eaton ACD221RNM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ACD221RNM?
Enquire Now
FAQs
Yes. The Eaton ACD221RNM is designed for 120/240V HVAC equipment with a 30A fused pullout, supporting motors up to 2 hp at 120V or 3 hp at 240V. It accepts #14-2 Cu/Al conductors and fits common outdoor disconnect footprints, simplifying integration with rooftop units and exterior condensers.
The ACD221RNM carries CSA Certified and UL Listed markings, signaling compliance with key electrical safety standards. Combined with a 10 kAIC interrupt rating, these certifications help meet regulatory requirements and provide assurance during audits for commercial and light industrial installations.
The ACD221RNM uses a NEMA 3R polycarbonate enclosure designed for outdoor exposure. This enclosure offers weather resistance against rain, dust, and temperature variations, helping maintain reliability and reducing maintenance cycles for outdoor HVAC equipment.
Plan for #14-2 Cu/Al conductors rated 60°C or 75°C. The unit operates at 120/240V with a 30A rating and 10 kAIC interrupt capacity. Use the replacement head when needed (part 96-3258-4) and follow enclosure mounting guidelines to ensure proper venting and clearance for safe operation.
Maintenance benefits include long service life from a rugged NEMA 3R enclosure and the availability of a dedicated replacement head (96-3258-4), minimizing downtime. The 1‑year warranty (or 18 months from shipment) provides upfront protection, while UL/CSA certification supports regulatory confidence and lower lifecycle risk.
