Eaton ACD222RNM Air Conditioning Disconnect - UL Listed 10 kAIC
Part Number: ACD222RNM
Quick Summary
Eaton air conditioning disconnect provides reliable fused protection for HVAC condenser loads in commercial and light industrial panels. Engineers often struggle with compact footprint, rugged enclosure, and safe disconnects in damp or outdoor environments. This device carries CSA Certified and UL Listed marks, plus a NEMA 3R polycarbonate enclosure for outdoor durability. Its 60A, 120/240V rating and compatibility with #14-2 Cu/Al wiring deliver a cost-effective, space-saving solution for control panels and HVAC sub-panels. By combining robust protection with easy maintenance, it supports uptime and regulatory compliance for industrial facilities. This translates to lower lifecycle costs and smoother procurement for facilities teams.
Product Information
Extended Description

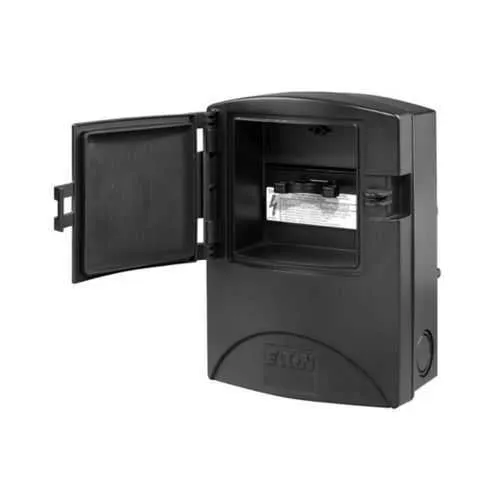

ACD222RNM Eaton: Eaton air conditioning disconnect, Fused pullout, 60A, 120/240V, 10 kAIC, #14-2 Cu/Al 60°C or 75°C, NEMA 3R Polycarbonate enclosure, 3 hp at 120V, 10 hp at 240V, Black
Product Name
Eaton air conditioning disconnect
Catalog Number
ACD222RNM
UPC
786676405959
Product Length/Depth
5 in
Product Height
8.63 in
Product Width
3.5 in
Product Weight
1.6 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
CSA Certified UL Listed
Catalog Notes
For replacement pullout head, order part number 96-3258-4.
Type
Fused pullout
Amperage Rating
60A
Horsepower
3 hp at 120 V, 10 hp at 240 V
Voltage rating
120/240 V
Wire size
#14-2 AWG Cu/Al
Color
Black
Enclosure
NEMA 3R
Enclosure material
Polycarbonate
Interrupt rating
10 kAIC
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - ACD222RNM
Feature: Fused pullout design provides simple, visible disconnecting means with integrated overcurrent protection. Business Impact: Reduces arc-flash exposure and confines faults to the disconnect, protecting downstream components. Application: Ideal for condenser units, compressors, and control cabinets in commercial HVAC installations. Feature: 60A amperage rating at 120/240V with 3 hp at 120V and 10 hp at 240V. Business Impact: Supports typical HVAC motors without oversizing, enabling cost-effective protection and easier panel planning. Application: Suitable for motor loads and control circuits in light industrial panels. Feature: NEMA 3R polycarbonate enclosure. Business Impact: Weather- and corrosion-resistant housing enables reliable outdoor or damp-location performance. Application: Outdoor condensers and exterior-mounted disconnects in harsh environments. Feature: Wire size compatibility of #14-2 Cu/Al (60°C or 75°C). Business Impact: Simplifies field wiring and reduces terminal crowding, speeding installation. Application: Standard HVAC power feeds and interconnects in commercial panels. Feature: Interruption rating 10 kAIC and CSA Certified / UL Listed. Business Impact: Meets stringent safety standards, simplifying compliance audits and procurement. Application: Regulated facilities and safety-critical installations in HVAC controls. Feature: Replacement pullout head available (96-3258-4). Business Impact: Reduces maintenance downtime and extends service life without full unit replacement. Application: Routine upgrades or field servicing of existing installations.
