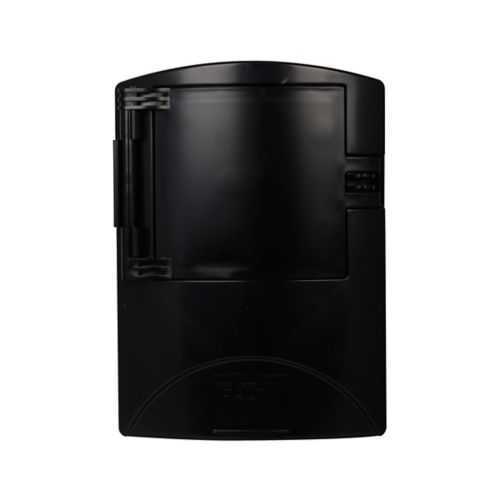

Eaton ACD222URNM Air Conditioning Disconnect - UL Listed
Part Number: ACD222URNM
Quick Summary
ACD222URNM air conditioning disconnect provides safe, code-compliant isolation for HVAC equipment and motor loads in commercial and industrial settings. Many operators struggle with unreliable pullout heads and weather exposure, leading to downtime and maintenance headaches. This Eaton unit carries UL Listed and CSA Certified markings, plus a NEMA 3R polycarbonate enclosure for durable outdoor service and dust resistance. With a 60A, 120/240V rating, it supports scalable protection for service entrances and remote equipment, while compatible wiring (#14-2 Cu/Al 60°C or 75°C) simplifies installation and future upgrades.
Product Information
Extended Description
ACD222URNM Eaton: Eaton air conditioning disconnect, Non-fused pullout, 60A, 120/240V, 10 kAIC, #14-2 Cu/Al 60°C or 75°C, NEMA 3R Polycarbonate enclosure, 3 hp at 120V, 10 hp at 240V, Black
Product Name
Eaton air conditioning disconnect
Catalog Number
ACD222URNM
UPC
786676406086
Product Length/Depth
5 in
Product Height
8.63 in
Product Width
3.5 in
Product Weight
15 lb
Warranty
Eaton Selling Policy 25-000, one (1) year from the date of installation of the Product or eighteen (18) months from the date of shipment of the Product, whichever occurs first.
Certifications
UL Listed CSA Certified
Catalog Notes
For replacement pullout head, order part number 96-3258-4.
Type
Air conditioning disconnect
Amperage Rating
60A
Horsepower
3 hp at 120 V, 10 hp at 240 V
Voltage rating
120/240 V
Wire size
#14-2 AWG Cu/Al
Color
Black
Enclosure
NEMA 3R
Enclosure material
Polycarbonate
Interrupt rating
10 kAIC
Residential and Light Commercial, Air Conditioning Disconnects, Volume 1 Tab 6
Eaton Specification Sheet - ACD222URNM
Selling Policy 25-000 - Distribution and Control Products and Services
Feature: 60A, 120/240V rating enables reliable isolation of HVAC and motor loads. Business Impact: Enables safe startup/shutdown and protects circuits from faults, reducing unplanned downtime. Application: Ideal for 60A air conditioning systems and light commercial compressor rooms, supporting efficient service coordination and upgrade paths. Feature: 10 kAIC interrupt rating enhances fault clearance capability. Business Impact: Improves safety margins in high-short-circuit environments, lowering risk of equipment damage and downtime. Application: Suitable for service entrances and utility feeds where fault currents can spike. Feature: NEMA 3R polycarbonate enclosure provides weather and dust resistance. Business Impact: Extends Installer confidence for outdoor installations and harsh indoor zones, reducing enclosure maintenance cost. Application: Outdoor condensers, mechanical rooms, and protected exterior walls. Feature: Compatible wire size #14-2 Cu/Al and 60°C/75°C ratings simplify wiring and future upgrades. Business Impact: Speeds installation, minimizes rework, and supports long-term compatibility with modern conductors. Application: New builds and retrofit projects for HVAC control circuits. Feature: Certifications UL Listed and CSA Certified support regulatory compliance. Business Impact: Streamlines procurement and ensures alignment with building codes and safety standards. Application: Approved for projects requiring recognized safety credentials; enhances traceability and warranty posture. Feature: Replacement pullout head option 96-3258-4 reduces maintenance costs. Business Impact: Quick field service minimizes downtime and extends asset life. Application: Field upgrades and spare-part planning for high-availability installations.
Get a Quick Quote for a Eaton ACD222URNM
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ACD222URNM?
Enquire Now
FAQs
Plan for wall or equipment-dedicated mounting with clear access to the pull-out head, allow space for wiring and thermal expansion, and wire with #14-2 Cu/Al conductors rated 60°C or 75°C. Ensure the enclosure is a suitable NEMA 3R location and replace the pullout head with part 96-3258-4 when needed. Follow UL/CSA guidelines throughout.
The device is a 60A disconnect rated for 120/240V with a 10 kAIC interrupt rating. It supports 3 hp at 120V and 10 hp at 240V, and uses #14-2 Cu/Al conductors. The enclosure is NEMA 3R and the unit is UL Listed and CSA Certified. These specs enable safe isolation for HVAC and related equipment.
Yes. The ACD222URNM uses a NEMA 3R polycarbonate enclosure designed for outdoor and dusty environments, protecting electrical connections and the disconnect mechanism from weather and debris. This makes it ideal for exterior HVAC units, mechanical rooms, and exposed installations where reliable operation is critical.
The unit carries UL Listed and CSA Certified markings, indicating compliance with recognized safety and performance standards. These certifications simplify procurement within regulated facilities, support warranty validity, and help ensure conformity with safety codes for commercial and industrial installations.
The unit offers durable protection, high fault current handling, and a field-replaceable pullout head (96-3258-4), all of which reduce maintenance time and downtime. With standard wiring and a robust enclosure, it minimizes service interruptions and supports longer service life, delivering a favorable return on investment for HVAC protection schemes.
