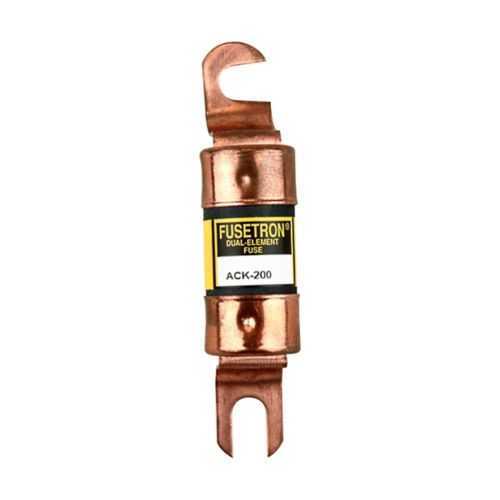

Eaton ACK-200 Fuse - Time-delay Stud-Mount 72 Vdc
Part Number: ACK-200
Quick Summary
The Eaton ACK-200 fuse provides reliable DC protection for forklift power systems and battery chargers. Engineers often contend with nuisance trips and downtime when protecting high-current DC circuits under dynamic load profiles. Certification coverage for such components typically includes CE, UL, and CSA depending on regional requirements; consult the Eaton datasheet for exact certifications. This time-delay, dual-element design uses a copper terminal and stud mounting to support quick, secure installation in standard enclosures. With a 72 Vdc rating and 200 A capacity, it protects wiring and power electronics from overloads while enabling fast, predictable response to faults. Its compact footprint helps simplify integration in crowded electrical bays and minimizes wiring complexity.
Product Information
Extended Description
ACK-200 Eaton: Eaton Bussmann series ACK fuse, Time-delay stud-mounted fuse, DC circuits protection for fork lift truck and battery chargers, 200 A, Dual, Non-indicating, 100 sec at 200%, 35 sec 300%, 13 sec at 500%, Copper terminal, Stud, 72 Vdc
Product Name
Eaton Bussmann series ACK fuse
Catalog Number
ACK-200
UPC
051712701440
Product Length/Depth
3.63 in
Product Height
0.56 in
Product Width
0.56 in
Product Weight
0.195 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
200 A
Response time
100 sec at 200%, 35 sec 300%, 13 sec at 500%
Voltage rating
72 Vdc
Material
Copper terminal
Number of elements
Dual
Packaging type
Standard
Fuse indicator
Non-indicating
Mounting method
Stud
Special features
One time fuse
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - ACK-200
Bussmann series ACK stud-mount fuse data sheet no. 1040
Bussmann series ACK stud-mount fuse data sheet no. 1040
Datasheet - FNQ-30
Time-delay operation with dual elements provides selective protection for high-current DC feeds. The ACK-200 delivers 200 A at 72 Vdc, tolerating startup surges common to forklift power systems and battery chargers. Its time-delay behavior—100 seconds at 200% overload, 35 seconds at 300%, and 13 seconds at 500%—minimizes nuisance trips while preserving safe, predictable protection during faults. Copper terminals and stud mounting deliver robust electrical contact and secure field installation, supporting quick replacement and reliable connections in standard control panels and battery charging stations. The compact footprint (3.63 in L × 0.56 in W × 0.56 in H) and light weight (0.195 lb) maximize enclosure density and improve thermal performance in crowded industrial spaces. Non-indicating design reduces front-panel complexity, while the one-time fuse feature enforces maintenance discipline and predictable replacement in routine servicing. This combination simplifies integration with Eaton Bussmann series devices and aligns with common hardware in forklift and charging applications, minimizing wiring entropy and installation time.
