Eaton ACK-225 Fuse - Time-delay Dual Element 80 Vdc
Part Number: ACK-225
Quick Summary
The ACK-225 fuse from Eaton is a time-delay, stud-mounted DC protection device designed for forklift charging and other high-current battery systems. Engineers often contend with nuisance trips during peak charging or surge events, which can drive downtime and maintenance costs. While no explicit certifications are listed for this exact model, it’s important to verify site requirements for SIL, CE, or IP ratings against your local standards and Eaton datasheets. By selecting the correct amperage and voltage rating with a rugged stud-mount design, customers gain reliable protection, easier installation, and reduced overall operating expense in mixed fleet environments.
Product Information
Extended Description
ACK-225 Eaton: Eaton Bussmann series ACK fuse, Time-delay stud-mounted fuse, DC circuits protection for fork lift truck and battery chargers, 225 A, Dual, Non-indicating, 100 sec at 200%, 35 sec 300%, 13 sec at 500%, Copper terminal, Stud, 80 Vdc
Product Name
Eaton Bussmann series ACK fuse
Catalog Number
ACK-225
UPC
051712701457
EAN
5027590056007
Product Length/Depth
3.87 in
Product Height
0.56 in
Product Width
0.56 in
Product Weight
0.29 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
225 A
Response time
100 sec at 200%, 35 sec 300%, 13 sec at 500%
Voltage rating
80 Vdc
Material
Copper terminal
Number of elements
Dual
Packaging type
Standard
Fuse indicator
Non-indicating
Mounting method
Stud
Special features
One time fuse

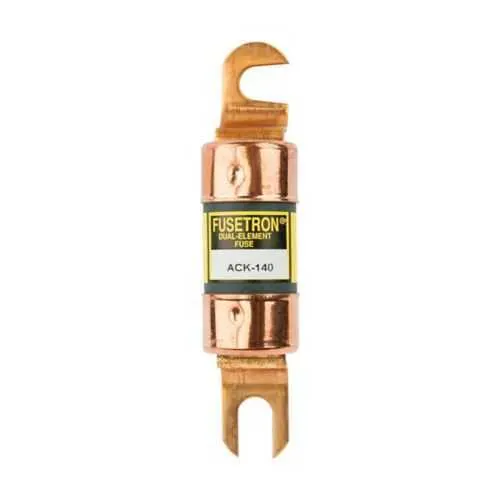

ACK-225~FUSETRON DUAL ELEMENT
ACK-225~FUSETRON DUAL ELEMENT
Bussmann series Fuseology
Eaton Specification Sheet - ACK-225
Feature: Time-delay, dual-element design provides coordinated protection against inrush and sustained overcurrent. Benefit: Minimizes nuisance trips while safeguarding battery chargers and DC motors, improving uptime in forklift fleets. Application: Suitable for DC charging stations and power distribution in industrial warehouses, where reliability matters for productivity.Feature: 225 A amperage rating with 80 Vdc voltage rating. Benefit: Delivers robust protection for high-current DC circuits without compromising performance, enabling safe operation of heavy equipment. Application: Forklift battery chargers and other high-current DC circuits in material handling.Feature: Stud mounting with copper terminals. Benefit: Easy, secure installation with low contact resistance and durable performance in harsh environments. Application: Direct panel or busbar connections in industrial control enclosures.Feature: Non-indicating fuse with one-time use design. Benefit: Reduces false indicators and tamper-resistance, ensuring a single-use protective event that prompts timely replacement. Application: Service panels and equipment bays where minimal visual indicators are preferred.Feature: Comprehensive compatibility with Bussmann series catalogs and datasheets. Benefit: Streamlines procurement, improved part traceability, and quicker replacement planning. Application: Fleet-wide deployments across mixed equipment from Jones Power to Eaton Bussmann components.Feature: Time-delay performance specifications. Benefit: Predictable response—100 s at 200%, 35 s at 300%, 13 s at 500%—translates to controlled protection for battery chargers and DC drives. Application: Heavy-duty charging stations and DC distribution where controlled interruption limits damage and downtime.
