Eaton ACMF38 AC/MC Set Screw Connector - NEC/CEC
Part Number: ACMF38
Quick Summary
ACMF38 is an Eaton AC/MC set screw connector designed to terminate and secure AC/MC armored cables in industrial electrical installations. For engineers and installers, unreliable terminations and loose connections can slow projects and compromise safety; ACMF38 provides a robust, easy-to-install solution with a dependable set-screw mechanism. The product aligns with NEC/CEC standards and is rated for Ordinary/Non-Hazardous Locations, with Canadian certification documentation available through Eaton's resources. In the Crouse-Hinds series, its zinc die cast body and 3/8 inch trade size offer durability and compatibility across common conduit systems. Adopting ACMF38 supports procurement consistency and reduces field maintenance by delivering a compliant, corrosion-resistant connection suitable for demanding environments.
Product Information
Extended Description

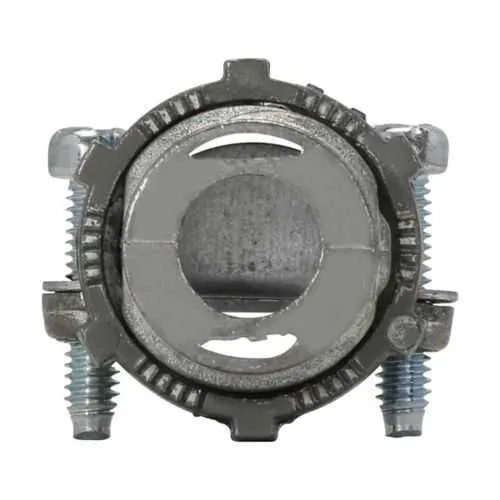

ACMF38 Eaton: Eaton Crouse-Hinds series AC/MC set screw type connector, AC/MC, Zinc die cast, 3/8"
Product Name
Eaton Crouse-Hinds series AC/MC set screw type connector
Catalog Number
ACMF38
UPC
662277026321
Product Length/Depth
1.13 in
Product Height
0.88 in
Product Width
0.95 in
Product Weight
0.25 lb
Area classification
Ordinary/Non-Hazardous Locations
Standards type
NEC/CEC
Conduit type
AC/MC
Style
Set screw
Material
Zinc die cast
Trade size
3/8"
Crouse-Hinds series Connectors and Couplings - AC/MC catalog page
Connectors and Couplings - AC/MC Canadian certification
Connectors and Couplings - AC/MC Canadian certification
Eaton Specification Sheet - ACMF38
ACMF38 is compatible with AC/MC armored cable, simplifying panel and equipment terminations and reducing field rework by providing a proven, quick-install solution in industrial wiring. The set screw design delivers a secure, vibration-resistant grip, minimizing loosening over time and extending service intervals in machinery and panel assemblies. The zinc die cast construction delivers corrosion resistance and rugged durability, especially in environments with exposure to dust, moisture, or incidental impacts. With a 3/8 inch trade size, this connector fits standard AC/MC cables and aligns with common conduit systems used in manufacturing and processing facilities, improving procurement efficiency and stocking.
Get a Quick Quote for a Eaton ACMF38
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton ACMF38?
Enquire Now
FAQs
ACMF38 accepts standard AC/MC armored cables with a 3/8 inch trade size. Align the conductor, insert into the connector body, and tighten the set screws to secure, ensuring the cable is properly seated and the screws are torqued per OEM guidelines. The rugged zinc die cast body provides durable performance in ordinary locations.
ACMF38 is designed for NEC/CEC compliance and Ordinary/Non-Hazardous Locations. Canadian certification documents are available through Eaton’s resources, and the catalog pages and specification sheets provide the necessary compliance details for audit and installation validation.
No. ACMF38 is rated for Ordinary/Non-Hazardous Locations, which means it is not intended for use in hazardous or classified environments. For hazardous locations, select an ACMF variant specifically rated for those conditions.
ACMF38 has a length of 1.13 inches, a height of 0.88 inches, and a width of 0.95 inches, with a product weight of 0.25 pounds. It features a zinc die cast body and a 3/8 inch trade size for standard AC/MC conduit connections.
Eaton provides the ACMF38 specification sheet and catalog pages, along with Canadian certification references. Access to additional technical support and installation guidance is available through Eaton’s online resources and distributor networks to assist with compliance checks and application assessments.
