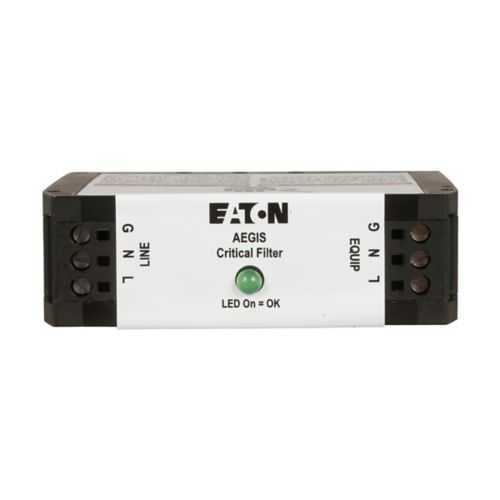

Eaton AGCF02410-DIN Powerline Filter - UL 1283
Part Number: AGCF02410-DIN
Quick Summary
The Eaton AGCF02410-DIN Powerline Filter is a compact EMI filter designed to shield single‑phase control systems from noise and transient surges. In many installations, EMI and electrical interference cause PLC faults and unexpected trips, driving maintenance costs and downtime. Certified to CSA, UL 1283 and UL 1449, it helps meet safety and compliance needs while continuing to operate in DIN-rail panels. With a 24 Vdc rating, 10 A capacity, and a 10-year warranty, it offers reliable protection without complicating the panel design. Designed for DIN mounting in automation environments, it complements other Eaton AEGIS devices and standard control cabinets. This combination delivers stable PLC inputs and longer equipment life.
Product Information
Extended Description
AGCF02410-DIN Eaton: Eaton Powerline filter, 10A, 24 Vdc rating, 50/60 Hz, DIN mount, Critical protection with filtering, EMI filter, used with Single-phase two or three-wire grounded systems
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGCF02410-DIN
UPC
786685857534
Product Length/Depth
4 in
Product Height
5 in
Product Width
2 in
Product Weight
3 lb
Warranty
10 year
Certifications
CSA Certified UL 1283 UL 1449
Amperage Rating
10A
Voltage rating
24 Vdc
Protection filtering
Critical protection with filtering, EMI filter
Type
Powerline filter
Eaton surge protection capabilities overview brochure
Eaton surge protection capabilities overview brochure
Eaton surge protection capabilities overview brochure
AEGIS Series line filters and surge protectors Product Aid
Eaton Specification Sheet - AGCF02410-DIN
Eaton AEGIS series technical data
Feature: 10 A amperage rating and 24 Vdc input rating provide compatible protection for PLCs, relays and sensors in standard automation architectures. Business Impact: Reduces risk of nuisance tripping and unscheduled downtime by limiting voltage transients on control circuits. Application: Suitable for single-phase two- or three-wire grounded systems in DIN-rail mounted control panels. Feature: Critical protection with EMI filtering minimizes conducted emissions and high-frequency noise. Business Impact: Improves reliability of sensitive electronics and reduces interference with nearby drives and sensors. Application: Ideal for machine controls and robotics cells where clean power signals are essential for precision. Feature: DIN rail mountability with compact 4 in length, 5 in height, and 2 in width. Business Impact: Saves panel space and simplifies installation, reducing assembly time and labor costs. Application: Compatible with standard 35 mm DIN rails in panel enclosures. Feature: 3 lb weight and robust construction with 10-year warranty. Business Impact: Lowers total cost of ownership and provides long-term protection against performance degradation. Application: Suitable for demanding industrial environments and long-life automation deployments. Feature: Certifications CSA Certified, UL 1283, UL 1449. Business Impact: Demonstrates compliance with established safety and surge protection standards, easing procurement and compliance audits. Application: Essential for regulated industries and critical process control deployments. Feature: 50/60 Hz operation and 24 Vdc rating. Business Impact: Ensures compatibility with common control system voltages and worldwide electrical standards. Application: Fits typical automation panels, PLC inputs, and sensor networks in manufacturing plants.
Get a Quick Quote for a Eaton AGCF02410-DIN
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGCF02410-DIN?
Enquire Now
FAQs
Yes. The AGCF02410-DIN is specifically designed for DIN rail mounting and supports single-phase two-wire or three-wire grounded systems. It installs quickly in standard control panels, enabling reliable EMI suppression without requiring custom enclosures or additional mounting hardware.
The filter is rated for 10 A with a 24 Vdc supply and operates at 50/60 Hz. It delivers critical protection with filtering to suppress conducted emissions, minimizing transients that can affect PLCs, relays and sensors. This combination reduces faults and improves signal integrity in automation networks.
Industries with stringent control requirements, such as manufacturing automation, machine tools, packaging lines, robotics cells and process automation, benefit most. Any DIN-rail controlled system needing stable 24 Vdc logic signals and EMI suppression will see reliability gains and reduced downtime.
The AGCF02410-DIN carries CSA Certified, UL 1283 and UL 1449 certifications. These approvals confirm electrical safety, surge protection performance, and compliance with common industrial safety standards, helping with audits, procurement approvals, and regulatory requirements.
The device comes with a 10-year warranty, reducing long-term maintenance risk and repair costs. Routine checks are minimal—inspect for physical damage and ensure proper DIN rail mounting. The combination of reliability, standard mounting, and warranty contributes to lower TCO in capital-intensive automation projects.
