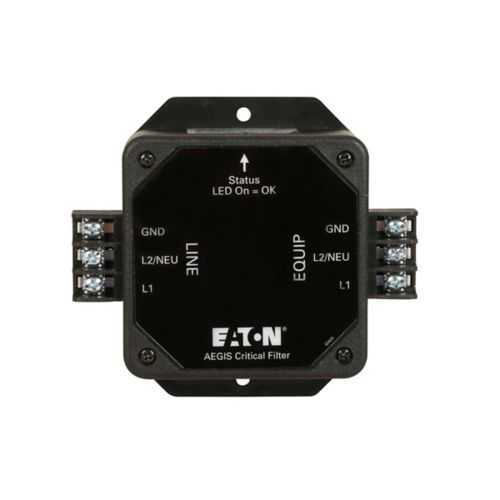

Eaton AGCF04810 Powerline filter - UL 1283
Part Number: AGCF04810
Quick Summary
Powerline filter AGCF04810 from Eaton provides EMI suppression for 48 Vdc control circuits in industrial automation. Many facilities struggle with EMI interference and unscheduled downtime that impact productivity. Eaton's AGCF04810 carries UL 1283, UL 1449, and CSA certifications, supporting safe operation in stringent industrial environments. With a compact footprint and clear ratings for single-phase grounded systems, it simplifies installation in control panels while enhancing equipment reliability and lifecycle. Engineers appreciate predictable performance across 50/60 Hz environments and in both single-wire and three-wire grounded configurations. Designed for critical protection with minimal insertion loss, it preserves control signals while suppressing conducted EMI.
Product Information
Extended Description
AGCF04810 Eaton: Eaton Powerline filter, 10A, 48 Vdc rating, 50/60 Hz, Critical protection with filtering, EMI filter, used with Single-phase two or three-wire grounded systems
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGCF04810
UPC
786685857541
Product Length/Depth
4 in
Product Height
5 in
Product Width
2 in
Product Weight
3 lb
Warranty
10 year
Certifications
UL 1283 CSA Certified UL 1449
Amperage Rating
10A
Voltage rating
48 Vdc
Protection filtering
Critical protection with filtering, EMI filter
Type
Powerline filter
AEGIS series line filters and surge protectors
AEGIS series line filters and surge protectors
AEGIS series line filters and surge protectors
AEGIS Series line filters and surge protectors Product Aid
Eaton Specification Sheet - AGCF04810
Eaton AEGIS series technical data
Feature: 10A amperage rating and 48 Vdc voltage rating provide robust protection for common automation loads. This combination minimizes the risk of overcurrent and voltage transients reaching sensitive controllers, improving uptime and reducing warranty costs. It is well suited for control panels powering PLCs, sensors, and motor drives in single-phase systems. Business Impact: Enhanced reliability and reduced downtime translate to lower overall operating costs. Application: Ideal for control cabinets where tight voltage regulation and predictable current handling are required for automation loops.Feature: EMI filtering delivers conducted EMI suppression for improved signal integrity. This reduces noise coupling into sensors and PLCs, resulting in more reliable data, fewer debugging cycles, and smoother control loops. Ideal for cabinets and enclosures in manufacturing environments where precise timing and dependable communication are critical. Business Impact: Clearer signals, fewer misreads, and improved process stability. Application: Applies to industrial controllers, I/O modules, and communication lines in single-phase systems.Feature: Certifications UL 1283, UL 1449, CSA Certified. Impact: Demonstrates safety, reliability, and regulatory compliance for industrial deployments. Application: Suitable for regulated environments and safety-conscious facilities that require formal approvals before integration into control architectures.Feature: Compact footprint (4 in deep, 2 in wide, 5 in tall) and 3 lb weight; 10-year warranty. Impact: Easier cabinet integration, reduced spare parts inventory, and a long-term owner cost advantage. Application: Fits tight electrical enclosures in automation racks and control panels, providing durable protection with long-term support.Feature: Designed for single-phase two- or three-wire grounded systems. Impact: Simplifies system upgrades and reduces wiring mistakes during retrofit projects. Application: Seamless integration with standard industrial power rails and Eaton AEGIS line filters in new or expanded control systems.
Get a Quick Quote for a Eaton AGCF04810
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGCF04810?
Enquire Now
FAQs
AGCF04810 installs inside a control panel on a suitable mounting surface and is sized for compact cabinets. Begin by securing the unit in a clean, dry enclosure, connect the 48 Vdc load to the rated 10 A path, attach the grounded conductor as specified, and verify polarity and grounding. Always refer to the Eaton AGCF04810 specification sheet for wiring diagrams and safety notes.
The AGCF04810 provides conducted EMI filtering intended to suppress high-frequency noise that can couple into sensors, PLCs, and actuators. This helps stabilize control loops, improve data integrity, and reduce intermittent faults in demanding industrial environments. The result is more reliable automation performance with less engineering rework.
Yes. The AGCF04810 is designed for single-phase 48 Vdc control circuits and works well in two-wire or three-wire grounded systems. It enables controlled power delivery to PLCs, sensors, and auxiliary devices while providing EMI filtration. Its compact form factor and rated current support typical automation cabinet configurations without overloading the circuits.
AGCF04810 carries UL 1283, UL 1449, and CSA certification. These marks confirm electrical safety, compatibility with surge-like transients, and compliance with recognized North American safety standards. This reduces procurement risk and simplifies regulatory alignment for industrial automation projects in North America.
The product features a 10-year warranty and a compact, robust design that minimizes maintenance needs. By reducing EMI-induced faults and protecting critical control circuitry, AGCF04810 lowers downtime, extends equipment life, and decreases total cost of ownership for automation projects. This makes it a compelling choice for long-term process reliability.
