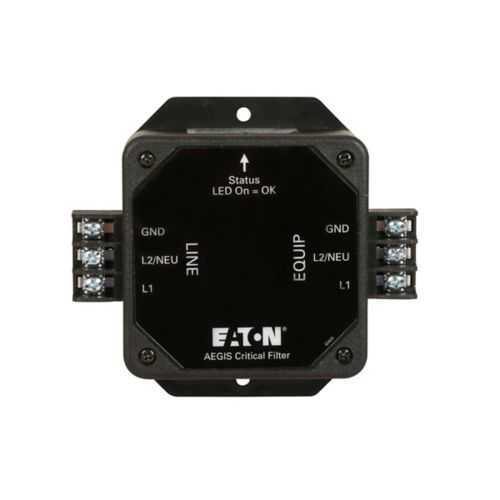

Eaton AGCF12010 Powerline Filter - UL 1449 Certified
Part Number: AGCF12010
Quick Summary
The Eaton AGCF12010 Powerline Filter protects sensitive equipment from surges on 120 VAC lines in industrial controls. Many facilities struggle with nuisance tripping and downtime caused by transient surges and EMI. Compliant with UL 1449, ISO 9001, and ANSI/IEEE surge standards, it provides reliable protection in tough environments. Designed for single-pole installations, it offers easy integration with control panels and motor drives. By delivering robust surge protection and EMI filtering, it helps reduce downtime and extend equipment life while supporting compliance. Its compact 5x5x2 in form and 2 lb weight simplify panel mounting. With a 10-year warranty, customers gain long-term protection against unplanned outages.
Product Information
Extended Description
AGCF12010 Eaton: Eaton Powerline filter, 10A, 120 Vac rating, Single-pole, Critical protection with filtering
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGCF12010
UPC
786685758220
Product Length/Depth
5 in
Product Height
2 in
Product Width
5 in
Product Weight
2 lb
Warranty
10 year
Compliances
ISO 9001
Certifications
UL 1449 ANSI/IEEE Std C62.41.2 ANSI/IEEE Std C62.43-2005 ANSI/IEEE Std C62.48-2005 ANSI/IEEE Std. C62.45-2002 UL 1283 ANSI/IEEE Std C62.41.1 ANSI/IEEE Std C62.62-2010
Amperage Rating
10A
Voltage rating
120 V
Phase
Single-phase
Protection filtering
Critical protection with filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protection capabilities overview brochure
Eaton surge protection capabilities overview brochure
Eaton surge protection capabilities overview brochure
AEGIS Series line filters and surge protectors Product Aid
Eaton Specification Sheet - AGCF12010
Eaton AEGIS series technical data
Feature: Amperage rating and voltage specification of 10A at 120V single-phase. Business impact: Protects common 120V control circuits without oversizing your protection and minimizes nuisance outages. Application: PLC inputs, motor starters, and sensors in standard industrial panels. Feature: Critical protection with filtering. Business impact: Reduces conducted EMI and voltage transients that degrade control performance, improving signal integrity and equipment life. Application: CNC machines, packaging lines, and process control systems. Feature: Certifications and compliance. Business impact: UL 1449 and UL 1283 listings, ISO 9001, and ANSI/IEEE surge standards ensure regulatory alignment and audit readiness. Application: Any facility requiring proven surge protection and quality management. Feature: Physical form factor and mounting ease. Business impact: 5 in length, 5 in width, 2 in height, and 2 lb weight enable straightforward installation in compact panels. Application: Automotive, food & beverage, and HVAC control panels where space is at a premium. Feature: Warranty and lifecycle. Business impact: A 10-year warranty reduces total cost of ownership and provides peace of mind for long-term uptime. Application: OEM equipment and aftermarket installations seeking durable protection.
Get a Quick Quote for a Eaton AGCF12010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGCF12010?
Enquire Now
FAQs
Install the AGCF12010 by wiring the line and load conductors through its single-pole filter within a standard 120 VAC control panel. Ensure the device is mounted in a location with adequate clearances and compatible with panel height. Mounting hardware is compatible with typical DIN-rail or panel mounting schemes, and the 5x5x2 in footprint fits compact panels used in PLC-based systems.
The AGCF12010 offers 10A amperage rating with 120V single-phase operation and includes critical protection with filtering. It delivers suppression for transient surges and reduces conducted EMI, helping maintain signal integrity for PLCs, sensors, and drives in demanding factory environments.
Yes. The AGCF12010 is designed for 120 VAC control circuits, making it ideal for PLCs, sensors, and control devices used in manufacturing, packaging, and HVAC applications. Its compact form factor and filtering capabilities support reliable operation without requiring large equipment reinforcements.
The AGCF12010 is UL 1449 listed with additional protections such as UL 1283, and it aligns with ANSI/IEEE surge standards including C62.41.2, C62.43, C62.48, and C62.45, plus ISO 9001 compliance, ensuring regulatory risk reduction and quality management in industrial settings.
Eaton backs the AGCF12010 with a 10-year warranty, delivering long-term protection and predictable maintenance costs. By preventing unplanned outages and reducing EMI-related failures, it offers a favorable return on investment through improved uptime and lower maintenance expenses in control panels and critical equipment.
