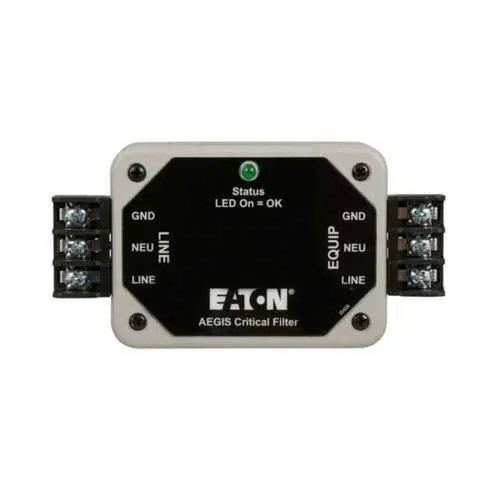

Eaton AGCF12010-CP Powerline Filter - UL 1449
Part Number: AGCF12010-CP
Quick Summary
Powerline Filter protects critical equipment by suppressing surges and filtering EMI on industrial control panels. Many facilities struggle with nuisance trips, EMI noise, and accelerated component wear caused by irregular mains power. This model aligns with UL 1449 safety standards and ANSI/IEEE surge protection specifications, alongside ISO 9001 quality management, providing reliable performance in challenging environments. In fast-paced automation settings, a compact, compliant filter like AGCF12010-CP reduces maintenance costs, simplifies panel layouts, and improves overall equipment uptime across motors, drives, and PLC-based systems.
Product Information
Extended Description
AGCF12010-CP Eaton: Eaton AEGIS Powerline Filter, 10A, 120 Vac rating, Single-pole, Critical protection with filtering, Compact option
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGCF12010-CP
UPC
786685758237
Product Length/Depth
5 in
Product Height
2 in
Product Width
5 in
Product Weight
0.9 lb
Warranty
10 year
Compliances
ISO 9001
Certifications
ANSI/IEEE Std C62.43-2005 ANSI/IEEE Std. C62.45-2002 ANSI/IEEE Std C62.48-2005 UL 1449 ANSI/IEEE Std C62.41.1 UL 1283 ANSI/IEEE Std C62.62-2010 ANSI/IEEE Std C62.41.2
Amperage Rating
10A
Voltage rating
120 V
Phase
Single-phase
Protection filtering
Critical protection with filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
AEGIS Series line filters and surge protectors Product Aid
Eaton Specification Sheet - AGCF12010-CP
Eaton AEGIS series technical data
Feature → Business Impact → Application: The AGCF12010-CP offers 10A at 120V single-phase operation in a compact 5 in x 5 in x 2 in footprint, weighing 0.9 lb. Business impact: saves panel space while delivering robust surge suppression and EMI filtering, enabling denser control architectures and lower installation costs. Application: ideal for control cabinets housing PLCs, servo drives, and relays in conveyors and packaging lines. Feature → Business Impact → Application: Critical protection with filtering reduces conducted EMI and transients, improving PLC uptime and preventing nuisance faults. Application: suitable for sensitive drives, sensors, and instrumentation in automation cells. Feature → Business Impact → Application: 10-year warranty and ISO 9001 compliance provide long-term reliability and supplier confidence, cutting lifecycle risk. Application: preferred in regulated environments requiring formal quality management. Feature → Business Impact → Application: UL 1449 and ANSI/IEEE certifications support regulatory compliance and customer audits. Application: essential for OEMs and integrators delivering certified protection in new builds. Feature → Business Impact → Application: Lightweight, single-pole design simplifies installation and retrofits, offering quick panel alignment and reduced assembly time. Application: ideal for retrofits in existing panels and retrofit projects in machine tenders.
Get a Quick Quote for a Eaton AGCF12010-CP
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGCF12010-CP?
Enquire Now
FAQs
Install the Eaton AGCF12010-CP as a single-pole, 120V line filter inside the designated control panel. Wire per the product’s general specifications, ensure secure terminal connections within panel clearance, follow torque guidelines for stability, and mount in a location with adequate ventilation. Its compact 5 in x 5 in footprint and 0.9 lb weight simplify wiring lash-ups and reduce panel depth considerations.
AGCF12010-CP provides critical protection with filtering, reducing EMI and transient spikes that can cause PLC resets or drive faults. With 10A capacity and 120V rating, it supports common industrial automation loads, helping to maintain deterministic performance, minimize noise-induced errors, and extend the service life of sensitive control devices.
Yes. The AGCF12010-CP is certified to UL 1449 and participates in ANSI/IEEE surge protection standards, including C62.43-2005, C62.45-2002, C62.41.x series, and additional relevant certifications listed for the AEGIS line. This ensures regulatory compliance, audit readiness, and trusted protection for critical loads in industrial environments.
The filter reduces downtime by suppressing surges and EMI, lowers maintenance costs, and extends component life. With a 10-year warranty and ISO 9001 quality backing, customers often see lower total cost of ownership due to fewer panel faults, reduced spare-part consumption, and smoother operation of PLCs, drives, and sensors across the manufacturing line.
Electrical specs: 10A amperage rating, 120 V, single-phase, single-pole. Physical specs: 5 in length, 5 in width, 2 in height, weight 0.9 lb. Certification and compliance include UL 1449 and ISO 9001, with multiple ANSI/IEEE surge protection standards. This combination supports compact panel installation and reliable protection for industrial loads.
