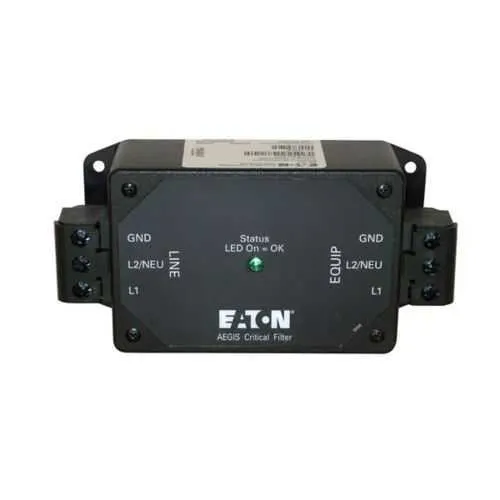

Eaton AGCF12030 Powerline filter - UL 1449
Part Number: AGCF12030
Quick Summary
The Eaton AGCF12030 Powerline filter provides clean, reliable power for sensitive equipment in industrial environments. Nuisance surges and electrical noise can cause unpredictable downtime, premature equipment wear, and degraded performance if left unchecked. It carries UL 1449 and UL 1283 listings, plus ANSI/IEEE surge standards, with ISO 9001 compliance that signals robust quality processes. By delivering targeted filtering at the point of use, this device protects controllers, drives, and sensors while meeting common industrial power-quality requirements. The compact form factor and installation-friendly design also support faster deployment in control panels and machine racks, delivering measurable reliability gains.
Product Information
Extended Description
AGCF12030 Eaton: Eaton Powerline filter, 30A, 120 Vac rating, Single-pole, Critical protection with filtering
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGCF12030
UPC
786685758251
Product Length/Depth
7 in
Product Height
2 in
Product Width
5 in
Product Weight
3 lb
Warranty
10 year
Compliances
ISO 9001
Certifications
ANSI/IEEE Std C62.41.2 ANSI/IEEE Std. C62.45-2002 UL 1449 ANSI/IEEE Std C62.48-2005 UL 1283 ANSI/IEEE Std C62.41.1 ANSI/IEEE Std C62.43-2005 ANSI/IEEE Std C62.62-2010
Amperage Rating
30A
Voltage rating
120 V
Phase
Single-phase
Protection filtering
Critical protection with filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
AEGIS Series line filters and surge protectors Product Aid
Eaton Specification Sheet - AGCF12030
Eaton AEGIS series technical data
Feature: 30A, 120V single‑phase input. Business Impact: Standardized power drawing reduces wiring complexity and improves protection coordination, delivering steadier voltage to critical components. Application: Suitable for industrial control panels, automation cabinets, and machine-mounted electronics. Feature: Powerline filtering with critical protection. Business Impact: Reduces conducted EMI/RFI, extending component life and lowering downtime costs. Application: Drives, sensors, and PLC I/O in high-noise environments. Feature: Compact footprint—7 in length, 5 in width, 2 in height; weight 3 lb. Business Impact: Enables installation in crowded panels and tight enclosures, reducing space costs. Application: Retrofit in legacy equipment and new installations. Feature: 10-year warranty; ISO 9001 compliant. Business Impact: Long-term protection and process stability, lowering total cost of ownership. Application: OEM specifications, maintenance programs, and capital projects. Feature: Certifications including UL 1449, UL 1283, and ANSI/IEEE surge standards. Business Impact: Ensures regulatory and industry alignment, reducing compliance risk. Application: Data centers, manufacturing lines, and critical machinery in regulated environments.
Get a Quick Quote for a Eaton AGCF12030
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGCF12030?
Enquire Now
FAQs
Begin by selecting a location with adequate airflow and clearance. Connect the 120 V, 30 A input to the main power source and wire the output to the protected load. Ensure proper grounding and follow NEC guidelines. Refer to the Eaton AGCF12030 specification sheet for mounting dimensions and wiring diagrams to minimize EMI paths.
AGCF12030 is designed for industrial control panels, PLC I/O racks, drives, and other automation equipment operating on 120 V single‑phase power. Its powerline filtering targets conducted noise and surges common in manufacturing lines, helping maintain controller integrity and sensor accuracy in high‑noise environments.
Yes. It carries UL 1449 and UL 1283 listings and complies with ANSI/IEEE surge standards for surge protection performance. ISO 9001 compliance further signals a structured quality management system, which is beneficial for audits and regulated environments.
By suppressing EMI/RFI and protecting against surge events, AGCF12030 reduces nuisance outages and capacitor/drive wear. The 10‑year warranty minimizes maintenance intervals and parts replacement costs, delivering a lower total cost of ownership in continuous‑operation facilities.
Plan for a compact footprint in crowded panels (7 in L × 5 in W × 2 in H; 3 lb). Ensure secure mounting, proper grounding, and correct load-to-filter connections. Access to Eaton’s product datasheets and technical data supports compliance, reducing risk during audits and speeding up commissioning.
