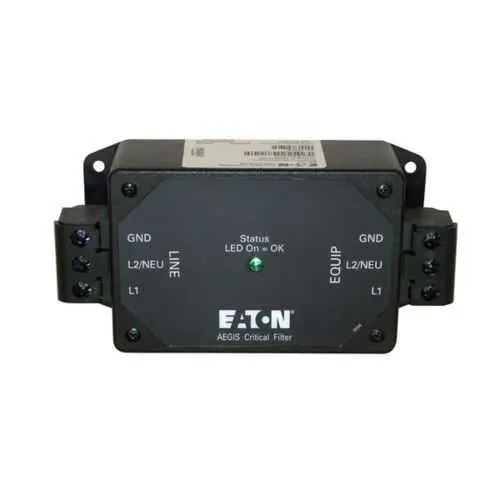

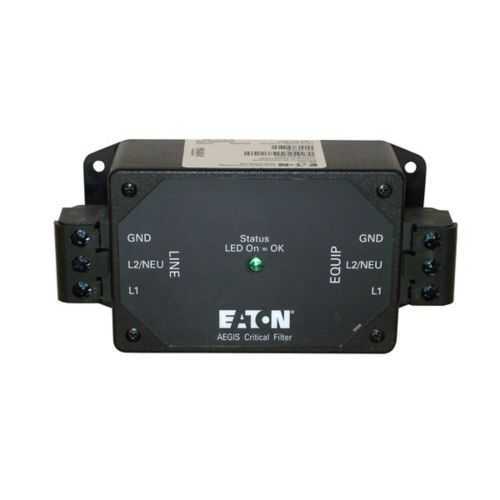

Eaton AGCF23030 Powerline filter - UL 1449 certified
Part Number: AGCF23030
Quick Summary
AGCF23030 Powerline filter protects sensitive electrical equipment in automation systems by filtering noise on 230 VAC lines. In harsh industrial settings, EMI and surges can disrupt drives, PLCs, and sensors, leading to unplanned downtime. This Eaton AEGIS model carries UL 1449 protection and ANSI/IEEE standards such as C62.41.2 and C62.62-2010, along with UL 1283, plus ISO 9001 quality management, ensuring performance and compliance. With a compact footprint and a 10-year warranty, it enables easy installation in control panels and reduces maintenance and downtime costs for commercial and industrial automation projects.
Product Information
Extended Description
AGCF23030 Eaton: Eaton AEGIS Powerline filter, 230 Vac, 30A, Critical protection with filtering, Single-pole
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGCF23030
UPC
786685979847
Product Length/Depth
3.2 in
Product Height
5.78 in
Product Width
3.23 in
Product Weight
2.7 lb
Warranty
10 year
Compliances
ISO 9001
Certifications
ANSI/IEEE Std C62.48-2005 UL 1449 ANSI/IEEE Std C62.41.2 ANSI/IEEE Std C62.43-2005 ANSI/IEEE Std C62.62-2010 UL 1283 ANSI/IEEE Std C62.41.1 ANSI/IEEE Std. C62.45-2002
Amperage Rating
30A
Voltage rating
240V
Protection filtering
Critical protection with filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
Eaton Specification Sheet - AGCF23030
Eaton AEGIS series technical data
The AGCF23030 combines 230 V operation with a 30 A rating in a single-pole powerline filter, delivering critical protection with filtering to keep sensitive automation equipment running smoothly. This translates to measurable business impact: reduced EMI-related faults, fewer trips, and enhanced reliability of drives, controllers, and sensors in manufacturing lines. In practice, technicians appreciate the compact 3.2 in depth, 3.23 in width, and 5.78 in height form factor, plus a manageable 2.7 lb weight that simplifies panel mounting and field installation, improving installation speed and reducing labor costs. The 10-year warranty and ISO 9001 compliance provide long-term assurance, supporting total cost of ownership (TCO) reductions and steady performance across product lifecycles. The device’s robust protection against surges and spikes aligns with industry standards, enabling easier regulatory compliance and risk mitigation in automated systems. Compatibility with existing Eaton AEGIS components helps streamline wiring, labeling, and service routines, minimizing downtime during upgrades and expansions. By addressing common objections about filtration effectiveness, AGCF23030 demonstrates how precise filtering accommodates modern servo drives, HMIs, and PLC I/O modules without sacrificing performance.
Get a Quick Quote for a Eaton AGCF23030
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGCF23030?
Enquire Now
FAQs
AGCF23030 is a single-pole powerline filter rated for 230V and 30A. It measures 3.2 in length, 3.23 in width, and 5.78 in height, weighing about 2.7 lb. Plan for panel mounting or channel routing, allow clearance for heat and wiring, and follow standard safety practices during mount and termination.
Key specs include 230V nominal voltage, 30A amperage rating, single-pole construction, and a 10-year warranty. This powerline filter provides critical protection with filtering, reducing conducted EMI for sensitive drives and controls in automation equipment, manufacturing lines, and machine cabinets. It is suitable for retrofit and new installations in control panels.
Yes. UL 1449 protection, ANSI/IEEE C62.48-2005 and C62.62-2010 certifications, and UL 1283 compliance support reliability in harsh environments. The 10-year warranty plus ISO 9001 compliance gives confidence in long-term protection for PLCs, drives, sensors, and I/O modules in automation systems.
AGCF23030 carries UL 1449, ANSI/IEEE C62.48-2005, C62.41.2, C62.62-2010, UL 1283, and ISO 9001. These certifications support regulatory compliance for electrical noise filtering, surge suppression, and quality management across North American and international installations.
The product includes a 10-year warranty, reducing replacement frequency and downtime costs. Its robust build and filtration reduce EMI-related wear, protect drive electronics and sensors, and simplify compliance reporting with industry standards, contributing to lower maintenance costs and higher system uptime over the life of the equipment.
