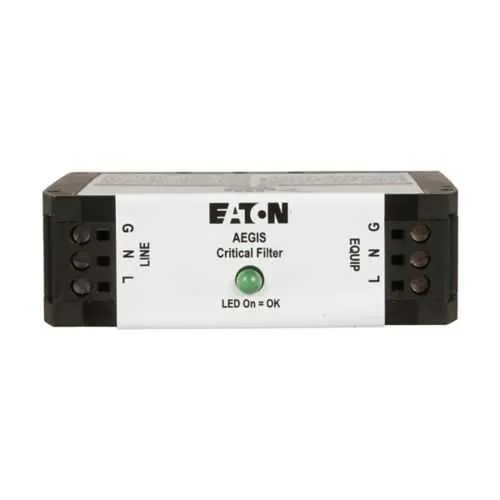

Eaton AGCF24010-DIN2 Powerline Filter - UL 1449
Part Number: AGCF24010-DIN2
Quick Summary
Eaton AGCF24010-DIN2 AEGIS Powerline filter protects critical 240V systems from electrical noise and transients. Without proper filtering, voltage spikes and EMI can cause unexpected trips, data errors, and accelerated wear in automation equipment. The device carries UL 1449 and UL 1283 safety listings, along with ISO 9001 quality certification, underscoring safety, performance, and process standardization. The DIN-mount option for the 10A CF version simplifies panel integration and reduces installation time, while delivering reliable filtering in compact form. For OEMs and maintenance teams, this filter supports regulatory compliance, minimizes downtime, and extends the life of drives, PLCs, and other sensitive automation assets in demanding environments.
Product Information
Extended Description
AGCF24010-DIN2 Eaton: Eaton EGIS Powerline Filter, 240 Vac, 10A, Critical protection with filtering, DIN mount (only available for 10A CF version), Single-pole
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGCF24010-DIN2
UPC
786685979656
Product Length/Depth
3.4 in
Product Height
0.98 in
Product Width
3.12 in
Product Weight
0.5 lb
Warranty
10 year
Compliances
ISO 9001
Certifications
ANSI/IEEE Std C62.48-2005 UL 1449 ANSI/IEEE Std C62.62-2010 ANSI/IEEE Std C62.41.2 ANSI/IEEE Std. C62.45-2002 UL 1283 ANSI/IEEE Std C62.41.1 ANSI/IEEE Std C62.43-2005
Amperage Rating
10A
Voltage rating
240V
Protection filtering
Critical protection with filtering
Number Of Poles
Single-pole
AEGIS series line filters and surge protectors
AEGIS series line filters and surge protectors
AEGIS series line filters and surge protectors
Eaton Specification Sheet - AGCF24010-DIN2
Eaton AEGIS series technical data
Feature: 10A amperage rating and 240V capability. Business impact: supports standard automation loads without overloading, enabling reliable noise suppression in control panels housing PLCs, drives, and sensors. Application: ideal for compact machine cabinets where space is at a premium and consistent power quality is essential. Feature: Critical protection with filtering. Business impact: EMI/RFI suppression reduces signal integrity issues and nuisance trips, improving machine uptime and data accuracy. Application: drives, CNCs, and high-speed sensors in automated lines. Feature: DIN mount availability for the 10A CF version. Business impact: simplifies panel mounting and minimizes installation time, reducing labor costs and wiring complexity. Application: 35 mm DIN rails in standard control panels across manufacturing lines. Feature: Certifications and compliance. Business impact: UL 1449, UL 1283, and ISO 9001 support regulatory and quality requirements for regulated environments. Application: automotive, food & beverage, and electronics manufacturing where formal approvals matter. Feature: Compact footprint and warranty. Business impact: small form factor fits tight spaces; 10-year warranty lowers lifecycle cost and risk. Application: OEM designs and long-term plant maintenance across mixed automation environments.
Get a Quick Quote for a Eaton AGCF24010-DIN2
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGCF24010-DIN2?
Enquire Now
FAQs
Yes. AGCF24010-DIN2 is designed for DIN mount integration as part of the 10A CF version, enabling straightforward installation in standard 35 mm DIN rail panels. It fits compact control enclosures while delivering reliable powerline filtering for automation equipment.
The unit is rated for 240V and 10A with single-pole operation. It provides critical protection with filtering to suppress EMI/RFI and withstand surge events, helping prevent sensor and drive malfunctions, data errors, and nuisance trips in industrial systems.
Ideal for control panels, PLC-based automation, servo drives, motors, and CNC interfaces in manufacturing lines. Its compact DIN-mount form and 240V/10A rating suit mid-range automation loads requiring reliable noise suppression and regulatory-grade protection.
AGCF24010-DIN2 carries UL 1449 and UL 1283 safety listings and ISO 9001 quality certification. These credentials support regulatory compliance, product safety assurances, and consistent manufacturing quality across industrial environments.
The product includes a 10-year warranty, reflecting Eaton's confidence in long-term reliability. This reduces total cost of ownership by lowering maintenance risks and minimizing replacement cycles for critical powerline filtering in production facilities.
