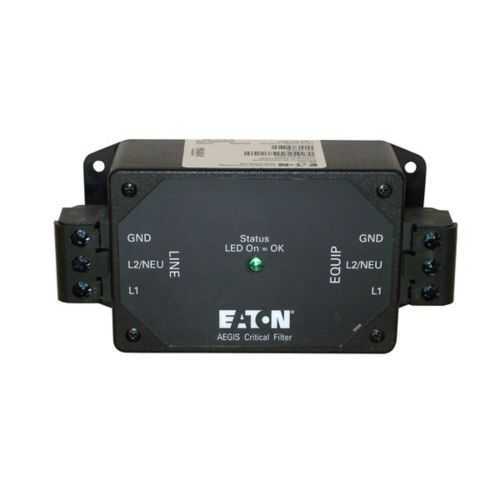

Eaton AGCN02430 Powerline Filter - UL 1283/UL 1449 CSA Certified EMI
Part Number: AGCN02430
Quick Summary
Powerline filter from Eaton provides EMI protection for single-phase, grounded control panels used in industrial automation. Many facilities struggle with transient spikes, electrical noise, and nuisance faults that shorten component life and trigger unplanned downtime. Certified to UL 1283, UL 1449, and CSA standards, it offers proven reliability in harsh environments. With a compact 6 in x 4 in x 2 in footprint, a 30 A rating, and 24 Vdc operation, the AEGIS filter installs easily in existing drives and panels. Coupled with a 10-year warranty, this device helps reduce lifecycle costs while boosting overall system availability and performance.
Product Information
Extended Description
AGCN02430 Eaton: Eaton Powerline filter, 30A, 24 Vdc rating, 50/60 Hz, Critical protection without filtering, EMI filter, used with Single-phase two or three-wire grounded systems
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGCN02430
UPC
786685857565
Product Length/Depth
6 in
Product Height
4 in
Product Width
2 in
Product Weight
3 lb
Warranty
10 year
Certifications
UL 1283 CSA Certified UL 1449
Amperage Rating
30A
Voltage rating
24 Vdc
Protection filtering
Critical protection without filtering, EMI filter
Type
Powerline filter
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
AEGIS Series line filters and surge protectors Product Aid
Eaton Specification Sheet - AGCN02430
Eaton AEGIS series technical data
Feature: 30 A current rating and 24 Vdc operation. Business Impact: Supports typical automation loads while protecting devices from overcurrent and voltage fluctuations. Application: Ideal for PLCs, sensors, and actuators in single-phase control schemes. This reduces downtime and extends component life in industrial panels. Feature: EMI filtering combined with critical protection. Business Impact: Suppresses conducted noise and spikes that can degrade sensor readings and PLC logic, improving control reliability. Application: Use in equipment racks and motor control centers where wireless interference or radio noise can affect operation. Feature: Compact, lightweight form factor (6 x 4 x 2 in; 3 lb). Business Impact: Easier panel mounting, reduced wiring complexity, and faster installation with minimal enclosure space. Application: Retrofit into crowded automation cabinets and retrofits without sizable enclosure expansion. Feature: Robust certifications (UL 1283, UL 1449, CSA). Business Impact: Compliance with global safety standards reduces validation time and procurement risk. Application: Environments requiring regulatory assurance for industrial power protection devices. Feature: 10-year warranty and Eaton AEGIS series lineage. Business Impact: Lowers total cost of ownership through extended protection and predictable maintenance planning. Application: Continuous operation across plant lines with long service intervals and service contract considerations. Feature: Compatible with single-phase two- or three-wire grounded systems. Business Impact: Flexible integration into diverse electrical architectures without changing existing wiring. Application: Suitable for legacy automation loops, panel boards, and distribution assemblies in manufacturing facilities.
Get a Quick Quote for a Eaton AGCN02430
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGCN02430?
Enquire Now
FAQs
AGCN02430 is designed for single-phase two- or three-wire grounded systems and fits standard Eaton AEGIS installations. Its compact 6 x 4 x 2 in footprint simplifies retrofits in crowded panels, reducing wiring changes while preserving existing protection strategies. Always verify panel clearance and mounting orientation before wiring to ensure optimal EMI performance.
The model provides a 30 A amperage rating at 24 Vdc, which aligns with typical automation sensors, actuators, and PLC I/O loads. This rating helps suppress transients and EMI without overburdening the supply, improving control stability and sensor accuracy in factory automation environments.
Yes. AGCN02430 carries UL 1283 and UL 1449 certifications and CSA certification, signaling conformity to established safety and performance standards for powerline filters. This compliance supports regulatory acceptance, safer installation practices, and reduced validation time in industrial environments.
By mitigating EMI and protecting critical circuitry, the filter reduces nuisance faults and equipment wear, translating to fewer unplanned outages and longer asset life. The 10-year warranty further lowers lifecycle costs, while easy installation minimizes labor and downtime during retrofits or panel upgrades.
For two-wire systems, connect the filter across the hot and neutral conductors as per the panel wiring schematic, ensuring proper grounding. For three-wire grounded systems, integrate the filter with the return/ground path to suppress conducted EMI effectively. Always follow the Eaton installation aid and torque recommendations for reliable performance.
