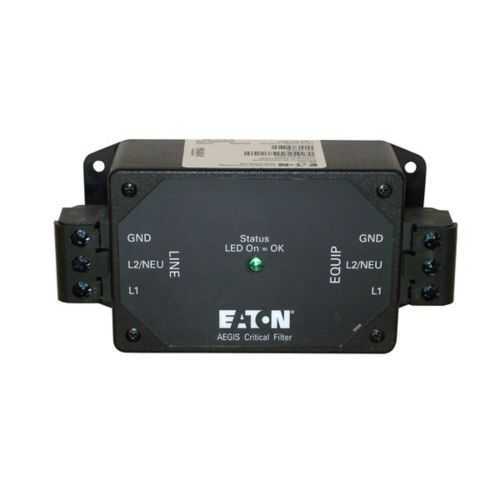

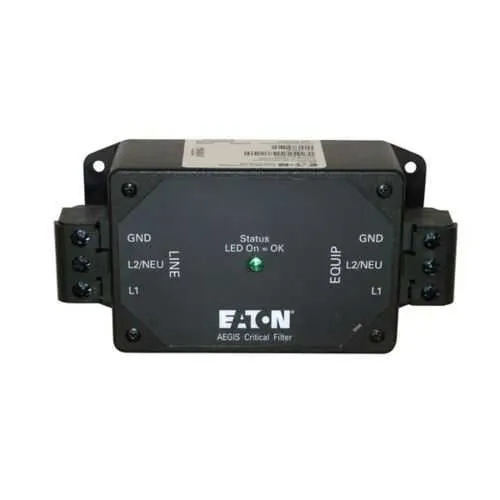

Eaton AGCN12030 Powerline Filter - UL 1449 Listed
Part Number: AGCN12030
Quick Summary
The Eaton AGCN12030 Powerline Filter protects critical equipment from transients and noise in industrial electrical systems, delivering reliable operation for control panels and drives. Engineers face recurring nuisance surges, EMI, and downtime that erode uptime and increase maintenance costs. This model carries UL 1449 and UL 1283 certifications, along with ANSI/IEEE C62.41.2, C62.62-2010, and C62.43-2005, plus ISO 9001 compliance to support compliant procurement. By integrating with the Eaton AEGIS family, it delivers power quality improvements, easy installation, and a long 10-year warranty, translating into lower total cost of ownership and more predictable plant performance. Typical users include automation panels, motor drives, and industrial sensors on 120 V networks.
Product Information
Extended Description
AGCN12030 Eaton: Eaton Powerline filter, 30A, 120 Vac rating, Single-pole, Critical protection without filtering
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGCN12030
UPC
786685758350
Product Length/Depth
8 in
Product Height
4 in
Product Width
5 in
Product Weight
3 lb
Warranty
10 year
Compliances
ISO 9001
Certifications
ANSI/IEEE Std C62.41.2 ANSI/IEEE Std C62.62-2010 ANSI/IEEE Std C62.43-2005 ANSI/IEEE Std C62.48-2005 UL 1449 UL 1283 ANSI/IEEE Std C62.41.1 ANSI/IEEE Std. C62.45-2002
Amperage Rating
30A
Voltage rating
120 V
Phase
Single-phase
Protection filtering
Critical protection without filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
AEGIS Series line filters and surge protectors Product Aid
Eaton Specification Sheet - AGCN12030
Eaton AEGIS series technical data
30A, 120V single-phase capability → delivers robust transient protection at the point of use. This reduces nuisance trips and equipment wear on PLCs, drives, and sensors. Application: ideal for OEM panels, manufacturing lines, and retrofit projects where stable power directly affects uptime and performance. Protection approach: Critical protection without filtering → focuses on essential surge suppression without adding filtering that could affect signal lines. This balance preserves control integrity while keeping installation simple and cost-effective. Business impact: easier diagnostics, faster commissioning, and predictable performance for automated lines. Application: suited for environments with moderate EMI where essential protection is prioritized over heavy filtration. Compact footprint and mounting ease: The unit measures 8 in long by 5 in wide by 4 in high and weighs 3 lb, with a single-pole, powerline filter design. Business impact: straightforward retrofit into crowded or existing panels, minimal rework, and less required space. Application: compatible with standard panel enclosures and Eaton AEGIS line configurations, enabling quick upgrades in field installations. Compliance and reliability: ISO 9001 compliant with a 10-year warranty and multiple certifications including UL 1449, UL 1283, and ANSI/IEEE standards. Business impact: reduces supplier risk, supports regulated environments, and lowers lifecycle costs with long-term coverage. Application: procurement teams benefit from consolidated documentation and a trusted supplier for critical power protection across industrial plants. Operational value and ROI: By protecting sensitives and reducing downtime, this filter improves power quality at the source, extending equipment life and improving process stability. Additional value comes from easy installation, clear spec alignment, and availability of technical datasheets and brochures for qualification. Application: ideal for OEMs and integrators delivering reliable automation in automotive, packaging, and process industries.
Get a Quick Quote for a Eaton AGCN12030
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGCN12030?
Enquire Now
FAQs
The AGCN12030 is designed for panel mounting in 120 V, 30 A circuits and single-phase systems. Install in a standard enclosure with adequate clearance and proper grounding, following the included installation instructions. Ensure the unit’s 8 x 5 x 4 in footprint and 3 lb weight fit your electrical cabinet and align with Eaton AEGIS line filters.
With a 30A rating and 120V single-phase operation, AGCN12030 provides robust line transient protection for controls and sensors. It is engineered to withstand industrial surges and comply with UL and ANSI standards, reducing EMI and downtime. This makes it well-suited for machines, conveyors, and process lines that rely on stable 120 V control circuits.
AGCN12030 carries UL 1449 and UL 1283 listings for surge suppression and EMI protection, along with ANSI/IEEE C62.41.2, C62.62-2010, C62.43-2005, C62.48-2005, and ISO 9001. These certifications confirm safety, performance under surge, and quality management, making procurement and regulatory audits smoother.
By suppressing transients and reducing EMI without adding complex filtering, it minimizes nuisance trips and sensor drift. The 10-year warranty lowers lifecycle costs, and the compact design enables easy upgrades. Over time, improved power quality translates to longer equipment life and more consistent production runs.
The AGCN12030 includes a 10-year warranty from Eaton and access to product brochures, datasheets, and technical support through Eaton’s documentation. For qualification, stock availability and references are provided in downloads; engineers can leverage the official installation aids and technical data sheets to validate fit and ROI.
