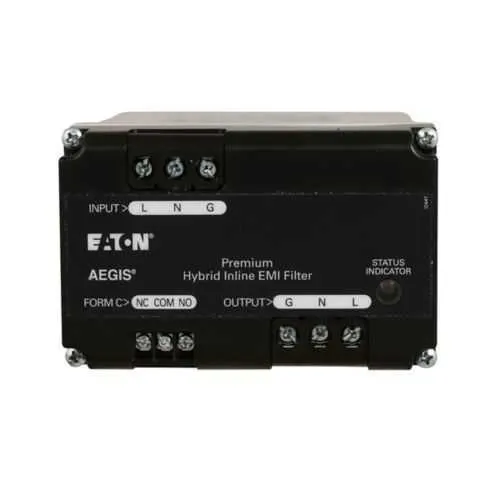

Eaton AGPH12005 Powerline filter - UL 1449 Certified
Part Number: AGPH12005
Quick Summary
The Eaton AGPH12005 Powerline filter protects equipment from electrical transients on 120 V power lines. Unfiltered surges can trigger controller faults, shorten component life, and drive maintenance downtime. UL 1449 and UL 1283 listings, together with ANSI/IEEE surge standards and ISO 9001, back critical reliability and quality. For engineers and procurement teams, its compact 8 x 6 x 5 in footprint and Form C contacts simplify installation and improve uptime. The device also helps meet EMI/EMC requirements in regulated environments, delivering predictable performance across diverse industrial applications. With a 15-year warranty, it supports total cost of ownership goals by reducing replacement cycles.
Product Information
Extended Description
AGPH12005 Eaton: Eaton Powerline filter, 5A, 120 Vac rating, Single-pole, Premium protection with hybrid filtering, with Form C contacts
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGPH12005
UPC
786685758077
Product Length/Depth
8 in
Product Height
6 in
Product Width
5 in
Product Weight
3 lb
Warranty
15 year
Compliances
ISO 9001
Certifications
UL 1449 ANSI/IEEE Std. C62.45-2002 ANSI/IEEE Std C62.41.1 ANSI/IEEE Std C62.43-2005 UL 1283 ANSI/IEEE Std C62.48-2005 ANSI/IEEE Std C62.62-2010 ANSI/IEEE Std C62.41.2
Amperage Rating
5A
Voltage rating
120 V
Phase
Single-phase
Protection filtering
Premium protection with hybrid filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
Aegis PH Model
Aegis PH Model
Aegis PH Model
Eaton Specification Sheet - AGPH12005
Eaton AEGIS series technical data
Feature 1: Amperage rating of 5 A at 120 V single-phase. Business impact: targeted protection for sensitive control circuits reduces nuisance trips and preserves sensor and PLC input life. Application: control panels and instrumentation enclosures in 120 V industrial systems. Feature 2: Premium hybrid filtering provides superior attenuation of high-frequency transients and EMI, improving overall system reliability. Application: motor drives, robotic cells, and PLC interfaces where EMI can affect performance. Feature 3: Form C contacts enable flexible wiring and signaling without additional accessories, simplifying installation and diagnostics. Application: panel wiring and remote monitoring in automated lines. Feature 4: Single-pole, powerline filter design with an 8 in x 6 in x 5 in footprint and a 3 lb weight, allowing easy integration into standard enclosures. Application: retrofit into existing control cabinets with limited space. Feature 5: Long-term protection and compliance, featuring a 15-year warranty and ISO 9001 alignment, reducing lifecycle costs and ensuring consistent performance across shifts. Application: mission-critical control systems in manufacturing environments.
Get a Quick Quote for a Eaton AGPH12005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGPH12005?
Enquire Now
FAQs
Plan for its 8 x 6 x 5 in footprint and 3 lb weight; mount in standard control panels with Form C contacts. Ensure proper clearance for cooling and follow Eaton installation instructions to achieve optimal surge protection and reliable signaling in 120 V circuits.
The 5 A amperage rating at 120 V single-phase provides targeted transient suppression for small to mid-size control circuits, minimizing nuisance trips and protecting PLC inputs and sensors. Premium hybrid filtering further reduces EMI, improving reliability in noisy automation environments.
Yes. It is designed for 120 V single-phase control panels, PLC cabinets, and instrumentation enclosures, delivering reliable surge protection and EMI suppression without complicating wiring or enclosure space.
It carries UL 1449 and UL 1283 listings, with ANSI/IEEE surge standards such as C62.41 and C62.45 family references, plus ISO 9001 compliance, ensuring safety, performance, and quality across industrial applications.
The AGPH12005 carries a 15-year warranty, supporting lifecycle cost goals. Eaton provides installation instructions, datasheets, and technical data to assist commissioning, maintenance, and long-term service planning.
