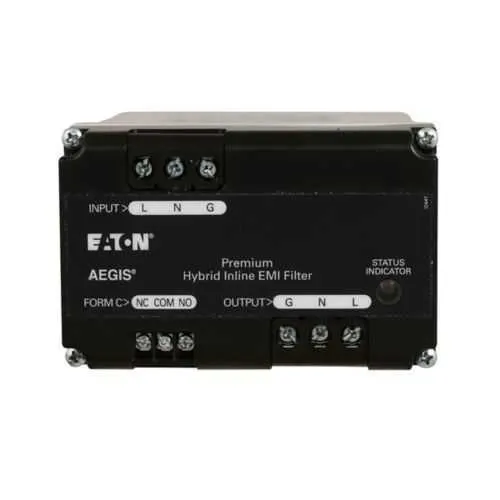

Eaton AGPH12010 AEGIS Powerline filter - UL 1283
Part Number: AGPH12010
Quick Summary
The Eaton AGPH12010 AEGIS Powerline filter protects sensitive control electronics by suppressing conducted noise in 120 V industrial panels. It addresses common pain points such as EMI-induced equipment glitches, nuisance tripping, and accelerated wear from power transients. This device carries UL 1283, UL 1449, and ANSI/IEEE surge protection certifications, along with ISO 9001 compliance, underscoring reliability in manufacturing and performance in the field. The combination of premium filtering and robust protection translates to longer equipment life, reduced downtime, and easier compliance for automation installations, while its compact form and Form C contacts support straightforward integration with existing Eaton AEGIS components and power distribution schemes.
Product Information
Extended Description
AGPH12010 Eaton: Eaton Powerline filter, 10A, 120 Vac rating, Single-pole, Premium protection with hybrid filtering, with Form C contacts
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGPH12010
UPC
786685758084
Product Length/Depth
8 in
Product Height
6 in
Product Width
5 in
Product Weight
3 lb
Warranty
15 year
Compliances
ISO 9001
Certifications
ANSI/IEEE Std C62.41.1 ANSI/IEEE Std C62.41.2 ANSI/IEEE Std C62.43-2005 ANSI/IEEE Std. C62.45-2002 UL 1283 ANSI/IEEE Std C62.62-2010 ANSI/IEEE Std C62.48-2005 UL 1449
Amperage Rating
10A
Voltage rating
120 V
Phase
Single-phase
Protection filtering
Premium protection with hybrid filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protection capabilities overview brochure
Eaton surge protection capabilities overview brochure
Eaton surge protection capabilities overview brochure
Aegis PH Model
Aegis PH Model
Aegis PH Model
Eaton Specification Sheet - AGPH12010
Eaton AEGIS series technical data
Feature → Business Impact → Application: 10 A, 120 V single-phase rating delivers targeted protection for small to mid-size automation panels, reducing EMI and improving PLC accuracy in manufacturing lines and CNC stations. Benefit: Lower downtime and extended life of sensors and drives; Application: Control panels in robotic cells and packaging lines. Feature → Application of premium hybrid filtering provides effective noise suppression across a wide spectrum, improving signal integrity and sensor reliability. Business Impact: Fewer misreads and erratic control responses; Application: Servo drives and HMI interfaces in machine tools. Feature → Form C contacts enable easy dry-contact signaling and fault reporting, facilitating integration with existing safety interlocks and alarms. Business Impact: Faster diagnostics and safer maintenance windows; Application: OEM panel builds and retrofit projects. Feature → Compact 8 in x 6 in x 5 in footprint with a 3 lb weight improves cabinet density and ease of installation; Business Impact: Reduced cabinet depth and simpler retrofits; Application: Enclosed control panels and electrical rooms with limited space. Feature → 15-year warranty offers long-term protection and predictable TCO; Business Impact: Lower lifecycle costs and less maintenance planning; Application: Critical process lines and batch systems that require dependable surge protection. Feature → ISO 9001 compliant manufacturing and UL/IEEE/ANSI certifications provide multiple compliance assurances; Business Impact: Helps meet quality and regulatory requirements for vertical markets such as food & beverage, automotive, and material handling; Application: Any panel requiring certified surge protection and EMI suppression.
Get a Quick Quote for a Eaton AGPH12010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGPH12010?
Enquire Now
FAQs
AGPH12010 is designed for seamless integration with Eaton AEGIS family products. Its single-pole design and Form C contacts simplify wiring and signaling within standard panel layouts, reducing modification time during retrofits. Compatibility with ISO 9001 manufacturing ensures consistent performance across installations, whether upgrading legacy gear or adding new automation modules.
The 10A, 120V single-phase rating paired with premium hybrid filtering delivers robust low-frequency and high-frequency noise suppression. This configuration minimizes conducted EMI across typical industrial loads, improving PLC input stability, sensor accuracy, and motor drive performance while meeting key standards such as UL 1283 and ANSI/IEEE surge protection criteria.
Yes. With a 15-year warranty, ISO 9001-compliant manufacturing, and certifications including UL 1283 and UL 1449, AGPH12010 is well-suited for critical processes in packaging, automotive, and material handling. Its compact form factor supports dense cabinet layouts, reducing space-related constraints in highly automated lines.
AGPH12010 carries a suite of certifications: UL 1283, UL 1449, ANSI/IEEE C62.41.1/2/5, ANSI/IEEE C62.43-2005, C62.45-2002, C62.62-2010, and C62.48-2005, along with ISO 9001 compliance. These certifications help satisfy electrical safety, surge protection, and EMI/EMC requirements across industrial sectors, simplifying vendor audits and installation approvals.
Investing in AGPH12010 yields ROI through reduced downtime, longer equipment life, and lower maintenance costs due to improved EMI suppression and transient protection. The 15-year warranty further lowers lifecycle costs, while the compact design saves cabinet space and accelerates installation, making it a cost-effective upgrade for automation panels and retrofits.
