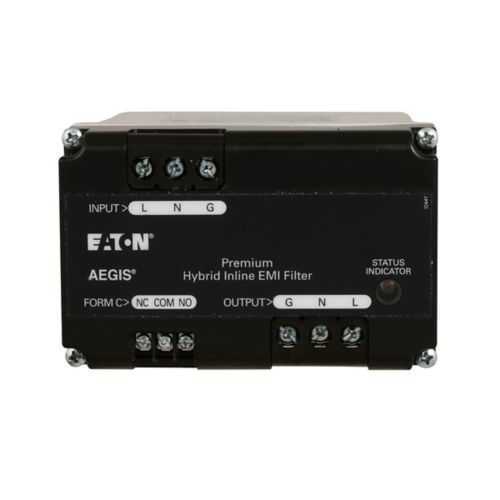

Eaton AGPH12015 Filter - Premium AEGIS UL 1449 listed
Part Number: AGPH12015
Quick Summary
Eaton AGPH12015 is a powerline filter designed for single-phase 120 VAC systems in industrial environments. This solution helps prevent damaging surges from reaching sensitive drives and controllers, reducing risky downtime. It carries ISO 9001 compliance and UL 1449 listing, along with ANSI/IEEE surge protection standards to support regulatory alignment. For panel builders and integrators, the compact 5 in x 6 in x 8 in form factor, Form C contacts, and 3 lb weight translate to straightforward installation, while the 15-year warranty reinforces long-term system reliability and calculated total cost of ownership.
Product Information
Extended Description
AGPH12015 Eaton: Eaton AEGIS powerline filter, 15A, 120 Vac rating, Single-pole, Premium protection with hybrid filtering, with Form C contacts
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGPH12015
UPC
786685758091
Product Length/Depth
5 in
Product Height
8 in
Product Width
6 in
Product Weight
3 lb
Warranty
15 year
Compliances
ISO 9001
Certifications
ANSI/IEEE Std C62.43-2005 ANSI/IEEE Std C62.48-2005 ANSI/IEEE Std C62.41.1 UL 1449 ANSI/IEEE Std C62.41.2 ANSI/IEEE Std. C62.45-2002 ANSI/IEEE Std C62.62-2010 UL 1283
Amperage Rating
15A
Voltage rating
120 V
Phase
Single-phase
Protection filtering
Premium protection with hybrid filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protection capabilities overview brochure
Eaton surge protection capabilities overview brochure
Eaton surge protection capabilities overview brochure
INSTALLATION INSTRUCTIONS FOR EATON'S AEGIS SURGE PROTECTIVE DEVICE AGPHxxxxx AND AGPVxxxxx
INSTALLATION INSTRUCTIONS FOR EATON'S AEGIS SURGE PROTECTIVE DEVICE AGPHxxxxx AND AGPVxxxxx
INSTALLATION INSTRUCTIONS FOR EATON'S AEGIS SURGE PROTECTIVE DEVICE AGPHxxxxx AND AGPVxxxxx
Eaton Specification Sheet - AGPH12015
Eaton AEGIS series technical data
Feature 1: Premium hybrid filtering provides robust suppression of both differential-mode and common-mode disturbances, improving device reliability and extending component life. Business Impact: Fewer nuisance trips and reduced EMI-related faults translate to lower maintenance costs and higher throughput in production lines. Application: Ideal for PLC cabinets and motor control panels where clean power is critical. Feature 2: 15A, 120V single-phase rating with Form C contacts enables direct integration into standard control circuits without requiring adapters, saving panel space and installation time. Business Impact: Faster commissioning and lower integration risk in new builds or retrofits. Application: Control panels in industrial automation environments. Feature 3: ISO 9001 compliance and UL 1449 listing provide regulatory confidence and supplier reliability, ensuring compliance across facility audits. Business Impact: Reduced compliance overhead and simplified procurement with a trusted, standards-aligned component. Application: Global manufacturing sites demanding consistent quality. Feature 4: Durable physical footprint—5 in length, 6 in width, 8 in height, and 3 lb weight—facilitates in-panel mounting in tight spaces. Business Impact: Smaller footprint reduces cabinet crowding and allows easier thermal management. Application: Enclosures with limited space in compact automation rooms. Feature 5: AEGIS line protection documentation and installation resources—installation instructions and datasheets available—support faster, correct deployment. Business Impact: Minimizes installation errors and warranty issues, protecting investment. Application: System integrators implementing surge protection in industrial HVAC, conveyors, or packaging lines.
Get a Quick Quote for a Eaton AGPH12015
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGPH12015?
Enquire Now
FAQs
For installation in a control panel, AGPH12015 should be mounted in a space that provides at least the specified clearances and allows proper heat dissipation. It supports single-phase 120 VAC operation with Form C contacts, and uses the standard 5 x 6 x 8 inch footprint with a 3 lb weight. Follow the Eaton IM01005021E instructions for wiring, mounting orientation, and safety precautions to ensure UL 1449 compliance and optimal performance.
Premium hybrid filtering combines differential-mode and common-mode suppression to reduce both high-energy transients and EMI noise. This results in lower voltage spikes reaching sensitive electronics, decreased nuisance tripping, and improved drive and PLC stability. Practically, you’ll see longer component life and fewer unplanned outages in high-disturbance environments such as manufacturing floors with variable loads.
Yes. The AGPH12015 is designed for single-phase 120 VAC systems and is commonly deployed in control panels housing PLCs and motor drives. Its 15A rating and Form C contacts facilitate straightforward integration, while the compact footprint simplifies cabinet layouts. Its protective features are especially valuable where sensitive automation equipment faces switching spikes and EMI from nearby motors.
AGPH12015 carries ISO 9001 compliance and is UL 1449 listed. It aligns with ANSI/IEEE surge protection standards (C62.41, C62.43, C62.48, C62.45, C62.62) and UL 1283; these certifications support regulatory compliance, product reliability, and industry acceptance. The combination helps meet corporate audits and supply-chain requirements for critical electrical protection devices.
The 15-year warranty and UL/ANSI certifications underpin long-term reliability, reducing unscheduled maintenance and downtime. By limiting surge-related damage to control panels and drives, you can lower replacement costs and extend equipment life. Early deployment in critical lines yields faster ROI through improved uptime, predictable maintenance cycles, and reduced total cost of ownership.
