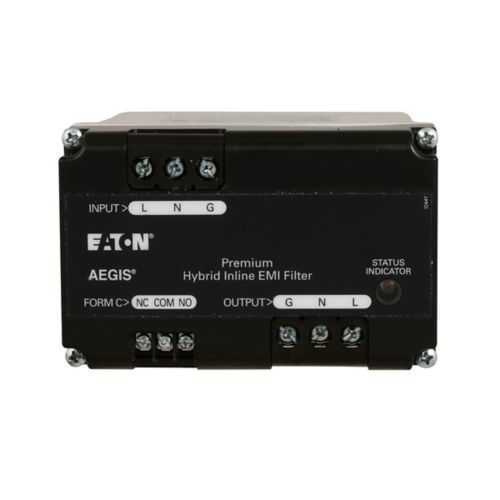

Eaton AGPH12020 AEGIS Powerline Filter - UL 1283
Part Number: AGPH12020
Quick Summary
The Eaton AGPH12020 AEGIS Powerline Filter is a 20A, 120V single‑phase device designed to protect industrial automation panels from EMI and power disturbances. Facilities often suffer nuisance tripping and unplanned downtime due to conducted noise on the mains; this filter suppresses EMI at the source to keep controls running. With UL 1283 and UL 1449 certifications and ISO 9001 compliance, it provides proven surge protection and quality assurance for critical equipment. Its compact form factor and Form C contacts simplify installation in new builds or retrofit projects, delivering reliable protection with measurable uptime gains and a clear return on investment for automation initiatives.
Product Information
Extended Description
AGPH12020 Eaton: Eaton Powerline filter, 20A, 120 Vac rating, Single-pole, Premium protection with hybrid filtering, with Form C contacts
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGPH12020
UPC
786685758107
Product Length/Depth
8 in
Product Height
6 in
Product Width
5 in
Product Weight
3 lb
Warranty
15 year
Compliances
ISO 9001
Certifications
UL 1283 ANSI/IEEE Std C62.41.1 ANSI/IEEE Std C62.41.2 ANSI/IEEE Std C62.43-2005 UL 1449 ANSI/IEEE Std C62.48-2005 ANSI/IEEE Std C62.62-2010 ANSI/IEEE Std. C62.45-2002
Amperage Rating
20A
Voltage rating
120 V
Phase
Single-phase
Protection filtering
Premium protection with hybrid filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protection capabilities overview brochure
Eaton surge protection capabilities overview brochure
Eaton surge protection capabilities overview brochure
Aegis PH Model
Aegis PH Model
Aegis PH Model
Eaton Specification Sheet - AGPH12020
Eaton AEGIS series technical data
Feature → Business Impact → Application: 20A, 120V single‑phase input delivers targeted protection for standard industrial power rails, reducing EMI and preventing erratic equipment behavior in control cabinets, which translates to fewer trips and higher line reliability in machine tools and packaging lines. Feature → Hybrid filtering technology combines both passive and active suppression to minimize conducted disturbances, improving PLC and drive performance while lowering maintenance costs over time; ideal for robotics cells and conveyor systems. Feature → Form C contacts provide flexible switching options and robust control integration inside enclosures, enabling seamless retrofits in existing panels without extensive rework. Feature → 8" × 5" × 6" footprint and 3 lb weight offer installation versatility across compact enclosures and legacy cabinets, supporting space-constrained automation deployments. Feature → 15‑year warranty and ISO 9001 compliance deliver long‑term confidence in supplier quality and lifecycle cost management for OEMs and integrators.
Get a Quick Quote for a Eaton AGPH12020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGPH12020?
Enquire Now
FAQs
Yes. The AGPH12020 is designed for 120V single‑phase systems and fits standard industrial control panels. Its compact 8x5x6 inch enclosure and Form C contacts simplify wiring and integration into new builds or retrofits, making it a practical choice for OEM panels and automation enclosures.
The AEGIS filter uses hybrid filtering for superior EMI suppression, delivering reliable protection for sensitive devices. It is certified to UL 1283 and UL 1449, with ISO 9001 quality management, ensuring safety, performance, and consistent manufacturing quality in industrial environments.
Absolutely. The 20A, 120V single‑phase rating, Form C contacts, and premium filtration are well suited for robotics, CNC machines, and conveyors. By reducing conducted EMI, it minimizes control glitches and downtime, enhancing uptime and process stability in high‑drift production lines.
Key certifications include UL 1283 for surge protection and UL 1449 for surge suppression devices, along with ISO 9001 compliance. These confirm safety, performance under surge conditions, and a quality management framework essential for regulated industrial environments.
The AGPH12020 carries a 15‑year warranty, reflecting confidence in long‑term reliability. By lowering EMI-related failures, reducing nuisance trips, and extending component life in drives and controllers, it contributes to measurable uptime improvements and lower maintenance costs over the equipment lifecycle.
