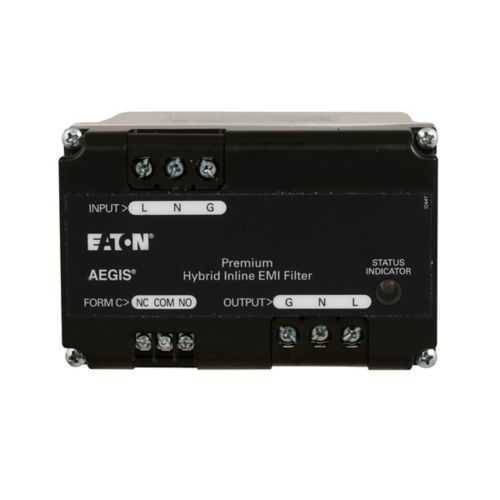

Eaton AGPH24010 Powerline filter - UL 1283 certified
Part Number: AGPH24010
Quick Summary
Eaton AGPH24010 Powerline filter reduces electrical noise in 240V industrial systems, protecting drives and controllers on production lines. This helps address nuisance EMI, sporadic trips, and costly downtime caused by voltage spikes. It carries UL 1283, UL 1449, ANSI/IEEE standards, and ISO 9001 certification, underscoring safety, protection, and a disciplined quality process. For engineers and procurement teams, the result is fewer field failures and lower maintenance costs over the life of the equipment. Built for 240V single-phase systems with premium hybrid filtering, it fits compact control panels and scalable line layouts, delivering consistent power quality across equipment and supporting reliable automation deployment.
Product Information
Extended Description
AGPH24010 Eaton: Eaton Powerline filter, 10A, 240 Vac rating, Single-pole, Premium protection with hybrid filtering, with Form C contacts
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGPH24010
UPC
786685758138
Product Length/Depth
8 in
Product Height
6 in
Product Width
5 in
Product Weight
3 lb
Warranty
15 year
Compliances
ISO 9001
Certifications
UL 1283 ANSI/IEEE Std C62.48-2005 ANSI/IEEE Std C62.62-2010 ANSI/IEEE Std. C62.45-2002 UL 1449 ANSI/IEEE Std C62.41.1 ANSI/IEEE Std C62.41.2 ANSI/IEEE Std C62.43-2005
Amperage Rating
10A
Voltage rating
240V
Phase
Single-phase
Protection filtering
Premium protection with hybrid filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
AEGIS Series line filters and surge protectors Product Aid
AEGIS Series line filters and surge protectors Product Aid
AEGIS Series line filters and surge protectors Product Aid
Eaton Specification Sheet - AGPH24010
Eaton AEGIS series technical data
Premium filtering with hybrid technology delivers superior attenuation of differential and common-mode noise. The business impact is measurable: cleaner power reduces EMI-related errors, extends drive life, and lowers the risk of nuisance trips in automation cells. Use this powerline filter in control panels feeding servo drives, CNCs, and conveyors to stabilize operation and increase uptime. With a 10A at 240V rating and a single-pole configuration, AGPH24010 provides a compact, easy-to-wire solution for space-constrained panels. Form C contacts simplify wiring and enable integration with existing control circuits, reducing install time and potential miswiring. The 15-year warranty and ISO 9001-compliant manufacturing reflect Eaton's commitment to reliability and quality control, translating to lower total cost of ownership and predictable performance across long service lives in demanding environments. Designed for Powerline filter applications in the AEGIS series ecosystem, it supports standard mounting footprints and panel-wiring practices, making retrofit and new installations straightforward for engineers familiar with line filters and surge protectors.
Get a Quick Quote for a Eaton AGPH24010
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGPH24010?
Enquire Now
FAQs
AGPH24010 is a 10A, 240V single-phase powerline filter with Form C contacts designed for control panels, drives, motors, and automation equipment. It wires into standard line/load circuits and supports compact panel layouts. Follow Eaton’s installation instructions, ensure proper grounding, and never exceed the 240V/10A rating to maintain safe, reliable operation.
Its premium filtering combines hybrid filtering to address both common-mode and differential-mode noise, delivering higher attenuation than standard filters. This reduces EMI on sensitive drives and PLCs, lowering spurious trips and improving control accuracy. The result is more stable servo operation, less maintenance, and better compliance with EMI limits in machine builds.
Yes. With 240V single-phase operation and a 10A rating, AGPH24010 is well suited for drives, motors, and conveyors in automation lines. It integrates with Form C signaling and aligns with ISO 9001 quality practices and UL/IEEE standards. For high-power drives, verify the current envelope and panel space before installation.
AGPH24010 carries UL 1283 and UL 1449 certifications for surge and electrical safety, plus ANSI/IEEE standards referenced in its spec, and ISO 9001 compliance. These certifications support regulatory acceptance, safe operation, and consistent quality across manufacturing lots. Ensure your project references these standards during supplier qualification.
It carries a 15-year warranty, reflecting Eaton's confidence in reliability. Using AGPH24010 reduces EMI-related downtime, protects expensive drives, and lowers maintenance costs over the equipment life. In practice, customers report fewer field faults and longer asset life, contributing to lower total cost of ownership in automation installations.
