Eaton AGPH24020 AEGIS Powerline Filter - UL 1449 Listed
Part Number: AGPH24020
Quick Summary
Eaton AEGIS Powerline filter protects sensitive equipment from transients on 240 V single-phase systems used in industrial control panels. For engineers wrestling with EMI, nuisance trips, and downtime, a reliable, certified filter like this reduces risk and improves uptime. It carries UL 1449/UL 1283 certifications and ISO 9001 quality compliance, ensuring safety, consistency, and regulatory alignment across plants. By addressing transient protection in control panels, it supports warranty coverage, easier maintenance, and scalable deployments with 20 A, 240 V capability. Manufacturers benefit from predictable form factors, compatibility with Form C contacts, and a 15-year warranty. This makes it a practical choice for panel builders and OEMs seeking durable, compliant protection.
Product Information
Extended Description

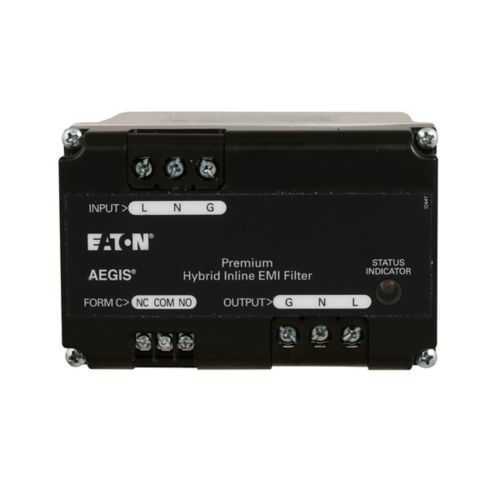

AGPH24020 Eaton: Eaton Powerline filter, 20A, 240 Vac rating, Single-pole, Premium protection with hybrid filtering, with Form C contacts
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGPH24020
UPC
786685758152
Product Length/Depth
8 in
Product Height
6 in
Product Width
5 in
Product Weight
3 lb
Warranty
15 year
Compliances
ISO 9001
Certifications
ANSI/IEEE Std C62.41.2 ANSI/IEEE Std C62.43-2005 ANSI/IEEE Std C62.48-2005 ANSI/IEEE Std C62.62-2010 UL 1449 UL 1283 ANSI/IEEE Std. C62.45-2002 ANSI/IEEE Std C62.41.1
Amperage Rating
20A
Voltage rating
240V
Phase
Single-phase
Protection filtering
Premium protection with hybrid filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protection capabilities overview brochure
Eaton surge protection capabilities overview brochure
Eaton surge protection capabilities overview brochure
Aegis PH Model
Aegis PH Model
Aegis PH Model
Eaton Specification Sheet - AGPH24020
Eaton AEGIS series technical data
20 Ampere rating and 240V single-phase operation are engineered for industrial control panels that feed PLCs, servo drives, and motor starters. This filter handles typical line transients without interrupting normal operation, translating to fewer nuisance trips and less unplanned downtime. The premium hybrid filtering combines common-mode and differential-mode attenuation to protect sensitive electronics in harsh factory environments. Form C contacts provide flexible wiring and signaling options, enabling easy integration with existing control circuits and fault-detection schemes. In practice, that means simpler panel layouts, faster commissioning, and improved fault isolation during maintenance. The robust mechanical design supports panel mounting in tight spaces, and the internal wiring paths minimize inductive coupling to keep EMI under control. Premium protection with hybrid filtering targets both high-energy surges and low-level EMI, delivering measurable reductions in conducted and radiated noise. This translates to longer life for sensors, drives, and controllers, and helps meet EMI/EMC compliance requirements in machine-building projects. The filter is compatible with Eaton's AEGIS family, enabling predictable performance across a wide range of legacy and new equipment. Physical footprint and weight are optimized for field installs: eight inches long, six inches high, five inches wide and about three pounds. The compact form factor simplifies mounting inside instrument enclosures and minimizes the need for dedicated filter boxes. Quick-connect or Form C wiring options speed up installation and reduce commissioning time for OEMs. Warranty of 15 years and ISO 9001 compliance reflect Eaton's commitment to quality and reliability. The device carries UL 1449 and UL 1283 certifications, alongside ANSI/IEEE surge standards, which supports compliance programs for plant engineers and system integrators. For procurement, the long warranty and established support ecosystem translate into lower total cost of ownership and more predictable maintenance planning.
Get a Quick Quote for a Eaton AGPH24020
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGPH24020?
Enquire Now
FAQs
To install AGPH24020, follow Eaton installation instructions (IM01005021E/TD158005EN). Ensure power is off, mount the unit inside the panel, and connect line and load per the Form C wiring scheme. Use proper grounding and shielding to minimize EMI, and secure wiring to prevent vibration or strain. Refer to the official installation drawings for exact terminal assignments and clearances.
AGPH24020 is a 20A, 240V, single-phase powerline filter with a single-pole design and Form C contacts. It measures 8 in by 6 in by 5 in and weighs about 3 lb. It carries a 15-year warranty and conforms to ISO 9001, with certifications including UL 1449 and UL 1283 for surge protection and EMI/EMC compatibility.
Yes. The 20A, 240V single-phase rating, premium hybrid filtering, and Form C contacts make AGPH24020 well-suited for PLC panels, servo drives, and motor starters. The filter reduces conducted and radiated EMI, enhances reliability of drives and sensors, and simplifies panel wiring while maintaining compliance with relevant UL/IEEE standards.
The AGPH24020 carries UL 1449 and UL 1283 certifications, ANSI/IEEE surge standards, and ISO 9001 compliance. These certifications support regulatory alignment, OEM qualification, and quality assurance programs, helping engineers meet industrial safety and EMI/EMC requirements across plant environments.
Using AGPH24020 reduces downtime caused by electrical transients and EMI-induced faults, extending the life of PLCs, drives, and sensors. The 15-year warranty lowers total cost of ownership, while ISO 9001 certification and strong vendor support simplify procurement, maintenance planning, and long-term reliability for OEMs and end users.
