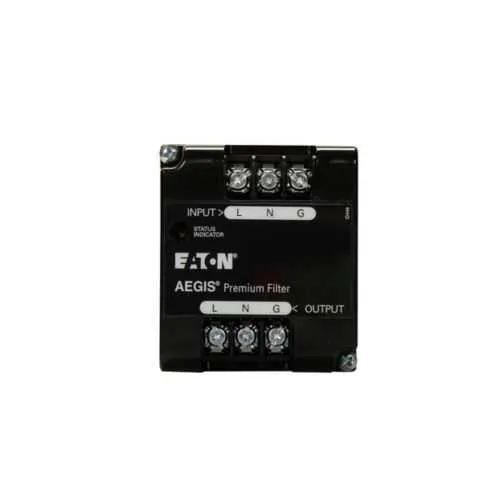

Eaton AGPV12001 Powerline Filter - UL 1449 Surge Protector
Part Number: AGPV12001
Quick Summary
Eaton AGPV12001 Powerline Filter is a 1A, 120 V single-phase surge protector designed to shield industrial control panels from damaging transients. Too often, unfiltered surges cause nuisance trips, PLC faults, and unnecessary downtime that erode uptime and margins. This device carries UL 1449, UL 1283 and ANSI/IEEE certifications, including C62.41.1/2, C62.43-2005, C62.45-2002, C62.48-2005, and C62.62-2010, along with ISO 9001 quality management, signaling robust compliance. By combining premium filtering with reliable protection, it helps reduce false trips and extend motor and PLC life, while its compact footprint and Eaton AEGIS compatibility streamline installation in control panels and industrial cabinets. In practice, this translates to lower maintenance costs, faster fault isolation, and a clearer path to regulatory compliance.
Product Information
Extended Description
AGPV12001 Eaton: Eaton Powerline filter, 1A, 120 Vac rating, Single-pole, Premium protection with filtering
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGPV12001
UPC
786685758169
Product Length/Depth
12 in
Product Height
6.5 in
Product Width
9.5 in
Product Weight
2.68 lb
Warranty
15 year
Compliances
ISO 9001
Certifications
UL 1449 UL 1283 ANSI/IEEE Std C62.41.1 ANSI/IEEE Std C62.41.2 ANSI/IEEE Std C62.43-2005 ANSI/IEEE Std. C62.45-2002 ANSI/IEEE Std C62.48-2005 ANSI/IEEE Std C62.62-2010
Amperage Rating
1A
Voltage rating
120 V
Phase
Single-phase
Protection filtering
Premium protection with filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
INSTALLATION INSTRUCTIONS FOR EATON'S AEGIS SURGE PROTECTIVE DEVICE AGPHxxxxx AND AGPVxxxxx
INSTALLATION INSTRUCTIONS FOR EATON'S AEGIS SURGE PROTECTIVE DEVICE AGPHxxxxx AND AGPVxxxxx
Eaton Specification Sheet - AGPV12001
Eaton AEGIS series technical data
Feature 1: 1A, 120 V single-phase protection provides targeted surge suppression for low-current control circuits. Business Impact: minimizes voltage spikes reaching PLCs, sensors, and relays, reducing unexpected trips and hardware wear. Application: ideal for 120 VAC control panels, small automation cabinets, and sensor networks where reliability matters. Feature 2: Premium filtering reduces conducted EMI and spike energy, improving signal integrity and EMC performance. Business Impact: lowers EMI-induced faults and communication errors, boosting machine availability and control accuracy. Application: PLC I/O interfaces and motor starter circuits in manufacturing lines. Feature 3: Comprehensive certifications including UL 1449, UL 1283, and ANSI/IEEE C62.x series provide regulatory assurance. Business Impact: simplifies audit trails and compliance in highly regulated facilities; reduces project risk. Application: industrial environments with strict safety and performance standards. Feature 4: 15-year warranty and ISO 9001 compliance deliver lifecycle cost savings. Business Impact: lowers total cost of ownership and supplier risk. Application: long-term deployments in critical process lines. Feature 5: Physical footprint and mounting compatibility with single-pole design enable straightforward installation. Business Impact: reduces enclosure space, wiring effort, and downtime during retrofits. Application: integration into standard electrical cabinets and control panels. Feature 6: Compatibility with Eaton AEGIS series streamlines procurement and maintenance. Business Impact: ensures consistent performance across filter family, simplifying spare parts planning. Application: OEM and integration projects leveraging Eaton protection solutions.
Get a Quick Quote for a Eaton AGPV12001
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGPV12001?
Enquire Now
FAQs
The AGPV12001 installs as a single-pole device in standard 120 VAC control panels. Connect hot and neutral according to Eaton wiring diagrams, secure the unit within the enclosure, and verify continuity. The installation is straightforward in Eaton AEGIS-supported cabinets, and the filter’s compact footprint minimizes enclosure intrusion while maintaining accessibility for inspection and maintenance.
AGPV12001 provides a 1 A amperage rating and a 120 V voltage rating with single-phase operation. This combination is optimized for protecting low-to-moderate current control circuits, PLC interfaces, and sensor networks from surge and transient events without imposing significant circuit loading.
Yes. The filter’s 1A, 120 V single-phase design targets control panels housing PLCs, sensors, and small motor controllers. Its premium filtering reduces EMI and spike energy, improving PLC communication reliability and motor control stability, which translates to higher uptime in manufacturing lines.
AGPV12001 is UL 1449 and UL 1283 listed and complies with ANSI/IEEE C62.41.x, C62.43-2005, C62.45-2002, C62.48-2005, and C62.62-2010. It also carries ISO 9001 certification, ensuring a quality management framework that supports consistent performance and traceability in regulated environments.
The device carries a 15-year warranty, contributing to lower lifecycle costs and reduced maintainance risk. Its robust protection helps prevent downtime from surges, extends the life of connected PLCs and sensors, and simplifies spare parts planning within Eaton’s protection ecosystem.
