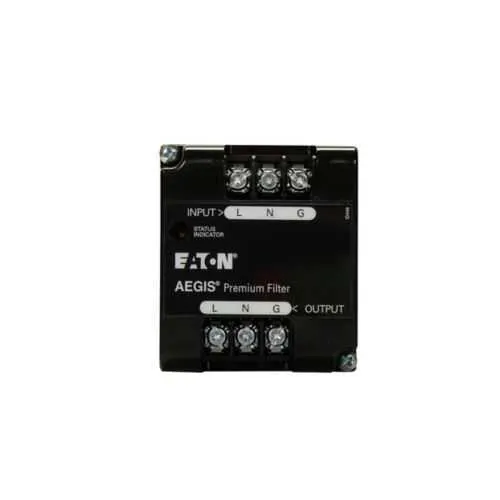

Eaton AGPV12005 Powerline Filter UL 1449 UL 1283 Certified
Part Number: AGPV12005
Quick Summary
AGPV12005 is the Eaton AEGIS Powerline filter that provides premium surge protection for 120 V, single-phase industrial panels. Unfiltered surges can compromise sensitive electronics such as PLCs, drives, sensors, and HMI interfaces, leading to outages and costly downtime. It carries UL 1449 and UL 1283 certifications, aligned with ANSI/IEEE surge standards and ISO 9001 quality management, giving you strong regulatory confidence. Designed for practical deployment in real factories, its compact 4 in by 4 in by 6 in footprint and 2 lb weight simplify panel layouts, while the 15-year warranty underlines Eaton's commitment to long-term reliability. For procurement teams, the AGPV12005 integrates with existing protection ecosystems, delivering consistent performance across aging equipment and new automation initiatives.
Product Information
Extended Description
AGPV12005 Eaton: Eaton Powerline filter, 5A, 120 Vac rating, Single-pole, Premium protection with filtering
Product Name
Eaton AEGIS Powerline filter
Catalog Number
AGPV12005
UPC
786685758183
Product Length/Depth
4 in
Product Height
6 in
Product Width
4 in
Product Weight
2 lb
Warranty
15 year
Compliances
ISO 9001
Certifications
ANSI/IEEE Std C62.41.1 UL 1449 UL 1283 ANSI/IEEE Std C62.43-2005 ANSI/IEEE Std C62.48-2005 ANSI/IEEE Std C62.41.2 ANSI/IEEE Std. C62.45-2002 ANSI/IEEE Std C62.62-2010
Amperage Rating
5A
Voltage rating
120 V
Phase
Single-phase
Protection filtering
Premium protection with filtering
Number Of Poles
Single-pole
Type
Powerline filter
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
Eaton surge protective devices overview brochure
INSTALLATION INSTRUCTIONS FOR EATON'S AEGIS SURGE PROTECTIVE DEVICE AGPHxxxxx AND AGPVxxxxx
INSTALLATION INSTRUCTIONS FOR EATON'S AEGIS SURGE PROTECTIVE DEVICE AGPHxxxxx AND AGPVxxxxx
Eaton Specification Sheet - AGPV12005
Eaton AEGIS series technical data
Feature: 5A amperage rating at 120V single-phase delivers targeted protection for mid-size control circuits. Business Impact: reduces risk of PLC and servo drive damage from line transients, limiting unplanned downtime and spare parts spend. Application: ideal for industrial control panels, automation cabinets, and robotics enclosures in manufacturing environments. Paragraph 2: Feature: Premium filtering with AEGIS technology provides effective suppression of high-frequency noise and EMI. Business Impact: improves signal integrity on fieldbus networks and reduces nuisance tripping of protective devices. Application: suitable for PLCs, HMI modules, servo controllers, and motor drives in OEM equipment. Paragraph 3: Feature: Compact form factor—4 in long, 4 in wide, 6 in high—with a 2 lb weight. Business Impact: simplifies panel mounting, lowers installation time, and frees enclosure space for other components. Application: retrofit into crowded switchgear and new machine builds where space is at a premium. Paragraph 4: Feature: ISO 9001 compliant manufacturing and a 15-year warranty. Business Impact: reduces vendor risk, ensures consistent quality, and lowers lifecycle costs. Application: suitable for regulated environments and critical automation lines that demand durable protection. Paragraph 5: Feature: Certifications include UL 1449, UL 1283, and ANSI/IEEE surge standards. Business Impact: ensures compliance with safety and performance requirements, easing audits and procurement. Application: ideal in controls cabinets, power distribution systems, and industrial automation cells.
Get a Quick Quote for a Eaton AGPV12005
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGPV12005?
Enquire Now
FAQs
To install AGPV12005, power down the equipment and verify panel ratings. Mount the filter in the designated space within the control panel, connect the line and neutral conductors per the Eaton installation instructions (IM01005021E or PA158002EN.pdf), and secure all connections to manufacturer torque specifications. After installation, verify continuity and test the system to confirm proper operation and surge protection.
AGPV12005 is rated for 5A, 120V, single-phase operation with premium powerline filtering. It supports single-pole configuration and is designed for 4 in L × 4 in W × 6 in H footprints, weighing about 2 lb, with a 15-year warranty. These specs make it suitable for protecting PLCs, drives, and sensors in industrial settings.
Yes. AGPV12005 is designed for industrial control panels, machine automation cabinets, and robotics enclosures. Its compact 4x4x6 in footprint and single-pole 120 V rating fit tightly packed panel environments, while premium filtering reduces EMI and transient surges that can disrupt PLCs, servo drives, and sensors, improving reliability in manufacturing operations.
AGPV12005 complies with UL 1449 and UL 1283 safety standards and aligns with ANSI/IEEE surge requirements. It also carries ISO 9001 manufacturing certification, ensuring quality management. These certifications help with regulatory compliance, audits, and procurement confidence in industrial environments.
The filter offers a 15-year warranty and reduces equipment downtime by limiting transient events and EMI-related faults. By protecting PLCs, drives, and sensors, it lowers replacement parts cost, extends device life, and stabilizes manufacturing throughput, delivering measurable lifecycle cost savings for automation projects and plant reliability initiatives.
