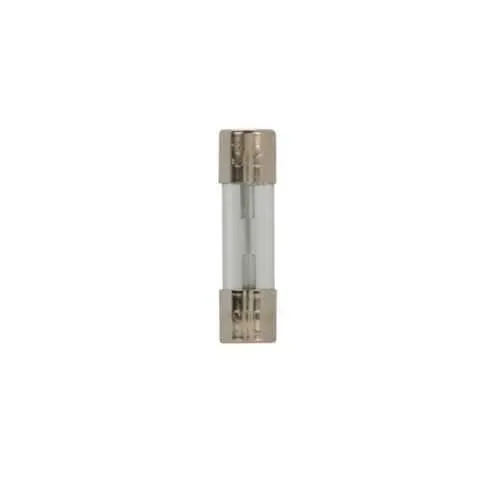

Eaton AGU-30 Fuse - 32 V Fast Acting
Part Number: AGU-30
Quick Summary
The Eaton AGU-30 fuse provides fast-acting overcurrent protection for appliances and consumer electronics. In compact designs, engineers often struggle to fit a reliable fuse that’s easy to inspect and replace while maintaining consistent performance. Note that this model lists a 32 V rating and 30 A amperage, with ferrule-end connections and nickel-plated brass endcaps; the provided data marks warranty and compliance as Not Applicable. By selecting this standard Bussmann series fuse for their devices, designers gain predictable protection, straightforward field servicing, and a footprint that aligns with common appliance and consumer electronics manufacturing practices.
Product Information
Extended Description
AGU-30 Eaton: Eaton Bussmann series AGU fuse, Fast acting fuse, Appliances, Consumer electronics, 30 A, Non-indicating, Ferrule end x ferrule end, Nickel-plated brass endcaps, Standard, 32 V
Product Name
Eaton Bussmann series AGU fuse
Catalog Number
AGU-30
UPC
051712704304
EAN
5027590407083
Product Length/Depth
5.5 in
Product Height
0.4625 in
Product Width
0.001 in
Product Weight
0.25 lb
Warranty
Not Applicable
Compliances
Not Applicable
Amperage Rating
30 A
Voltage rating
32 V
Material
Nickel-plated brass endcaps
Packaging type
Standard
Connection
Ferrule end x ferrule end
Fuse indicator
Non-indicating
Special features
Non current limiting
Bussmann series complete full line catalog no. 1007
Bussmann series Fuseology
Eaton Specification Sheet - AGU-30
AGU-30~AGU FUSE - 13/32 x 1-1/2 - 30 AMP
AGU-30~AGU FUSE - 13/32 x 1-1/2 - 30 AMP
Datasheet - FNQ-30
Feature: Fast-acting design; Business Impact:迅速 interruption of fault currents minimizes component damage and downtime; Application: Ideal for appliances and consumer electronics with sensitive loads. Feature: Ferrule end x ferrule end with nickel-plated brass endcaps; Business Impact: Robust, corrosion-resistant connections improve reliability in harsh environments; Application: Enclosures and chassis where durable terminal contacts matter. Feature: Non-indicating status; Business Impact: Simplifies panel design and reduces cost in assemblies that rely on external fault monitoring; Application: Standard appliance circuits without visual fuse indication. Feature: Standard packaging and a compact 5.5 in length footprint; Business Impact: Easy integration into existing BOMs and legacy enclosures; Application: OEMs expanding product lines with minimal rework. Feature: 30 A, 32 V electrical ratings; Business Impact: Clear limits for safe circuit protection and regulatory alignment; Application: Consumer electronics, small appliances and other 32 V systems.
Get a Quick Quote for a Eaton AGU-30
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AGU-30?
Enquire Now
FAQs
Power down the equipment, locate the fuse holder designed for ferrule-end fuses, and insert the AGU-30 with the ferrule ends seated firmly in the endcaps. Ensure correct orientation and secure any adjacent terminal connections to prevent vibration or movement. Verify clearance and that the fuse is part of the targeted protection circuit before re-energizing.
The AGU-30 is rated for 30 A and 32 V, suitable for standard appliance and consumer electronics circuits. This non-indicating, fast-acting fuse interrupts fault currents promptly to minimize damage while supporting a compact, ferrule-end footprint in compact enclosures.
No. The AGU-30 is specified as non-current-limiting, meaning it does not actively limit the magnitude of inrush or fault currents beyond its blowing action. For applications requiring current limiting, consider alternate Bussmann options and consult the datasheet for selectivity.
AGU-30 fuses are well-suited for appliances and consumer electronics that operate at 32 V and require reliable, compact overcurrent protection with ferrule-end terminations. Their standard footprint and nickel-plated endcaps support durable, field-replaceable protection in serialized product layouts.
You can access the Eaton Specification Sheet for AGU-30 and other Bussmann series catalogs via the provided downloads: Bussmann series catalog no. 1007, AGU-30 datasheets, and related technical documents from Eaton’s official site. These resources cover electrical ratings, dimensions, packaging, and compatibility notes for OEM implementation.
