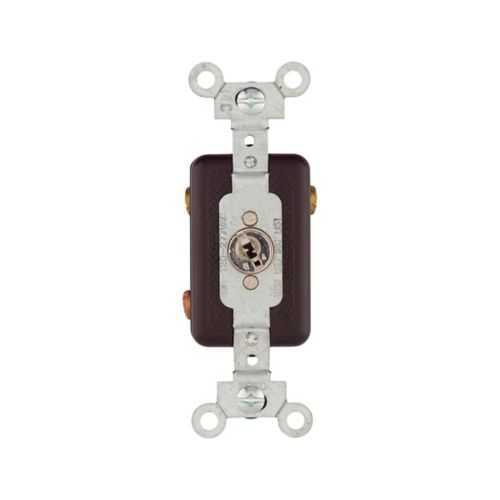

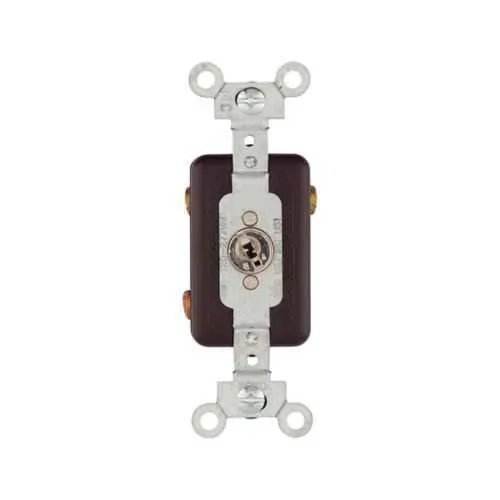

Eaton AH1193N Locking Switch - Corbin type locking
Part Number: AH1193N
Quick Summary
The Eaton AH1193N locking switch is a rugged, maintenance-friendly device designed for industrial control panels. Operators and installers often struggle with accidental restarts and miswired panels during upgrades. This AH1193N carries cULus Listed and RoHS compliance, with NAFTA alignment, helping meet safety, regulatory, and sustainability goals. Its Corbin-type locking, back and side wiring, and 20A/120/277V rating support reliable, scalable industrial switching with easy installation and traceability. These characteristics translate to faster commissioning, fewer field errors, and a safer operator experience. For engineers evaluating control hardware, the AH1193N aligns with standard control panel practice, reducing design complexity. This makes it ideal for retrofit projects and new builds in industrial facilities.
Product Information
Extended Description
AH1193N Eaton: Eaton locking switch, Corbin type, #14-10 AWG, 20A, 120/277V, Back and side wiring, Key actuator, Maintained closure, Brown, Three-way, Urea
Product Name
Eaton locking switch
Catalog Number
AH1193N
UPC
040893627816
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
1.34 in
Product Weight
0.3 lb
Compliances
NAFTA RoHS Compliant
Certifications
cULus Listed
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Special features
Corbin type locking
Type
Switch
Amperage Rating
20A
Voltage rating
120/277 V
Application
Industrial
Wiring method
Back and side
Switch type
Three-way
Closure type
Maintained
Material
Urea
Actuator
Key
Color
Brown
Arrow Hart Buyers Guide Section E
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH1193N
Feature: Corbin-type locking with a dedicated key actuator provides a secure maintained closure that prevents accidental restart of equipment. Business impact: reduces operator error and unplanned downtime in high-cycle machinery, improving overall OEE. Application: ideal for industrial control panels, safety interlocks, and islanded equipment where access must be controlled. Feature: Amperage rating of 20A and voltage rating of 120/277V supports typical industrial loads, while back and side wiring simplifies field terminations. Business impact: faster wiring, reduced rework, and consistent electrical performance across multiple machines. Application: control circuits in conveyors, presses, and packaging lines. Feature: Compact dimensions (1.31 in depth; 3.28 in height; 1.34 in width) and a lightweight 0.3 lb form factor enable easy installation in tight enclosures. Business impact: lower panel footprint and streamlined redesigns. Application: retrofits and OEM panel builds. Feature: Material is Urea with a maintained closure and a key actuator, delivering reliable, vandal-resistant operation. Business impact: improved safety, reduced nuisance trips, and predictable actuation across shifts. Application: safety interlocks and access-controlled panels. Feature: 14 lbf-inch torque rating on terminations ensures consistent connection torque. Business impact: reliable electrical contact, reduced overheating risk, and longer component life. Application: power and control wiring within small to mid-size panels. Feature: Certifications include cULus Listed and RoHS compliance, plus NAFTA alignment. Business impact: smoother procurement, regulatory assurance, and supply-chain resilience. Application: North American manufacturing environments and mixed-material panels. Feature: Color Brown and Corbin-type locking provide quick visual cues for maintenance teams. Business impact: faster diagnostics and reduced maintenance time. Application: operator interfaces and access panels.
Get a Quick Quote for a Eaton AH1193N
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH1193N?
Enquire Now
FAQs
For proper installation, plan for back and side wiring using #14-10 AWG conductors and ensure the panel cutout accommodates the device footprint (1.31 in depth, 3.28 in height, 1.34 in width). Apply the recommended 14 lbf-in torque to terminations and use the key actuator to guarantee maintained closure. Verify clean, tight connections to prevent heat buildup and ensure reliable operation in high-cycle environments.
The AH1193N is rated for 20A at 120/277V, suitable for common industrial loads. It supports back and side wiring with #14-10 AWG conductors, and the 14 lbf-in torque ensures secure terminations. The maintained closure and three-way configuration enable versatile wiring schemes while reducing misoperation and improving control reliability in machinery circuits.
The AH1193N is designed for industrial applications with cULus Listing and RoHS compliance, supporting safety and environmental standards. While not explicitly rated for IP ingress in the provided data, its Corbin-type locking offers robust actuation and vandal resistance within standard panel enclosures. For harsher environments, pair it with appropriate enclosure protection and verify local environmental ratings.
This switch carries cULus Listing for safety and RoHS compliance, with NAFTA alignment. These certifications simplify procurement and regulatory clearance in North American facilities, support sustainability goals, and help ensure electrical safety in installed panels. When planning compliance documentation, reference catalog AH1193N and include the cULus and RoHS statements to meet typical corporate and customer governance requirements.
Investing in the AH1193N reduces downtime from accidental actuation due to its maintained closure and secure key actuator. The robust construction, standard wire size, and straightforward installation shorten commissioning time, lower replacement costs, and ease audits. Over mid- to large-scale deployments, these factors translate to lower total cost of ownership and improved equipment uptime.
