Eaton AH1201L Locking Switch - cULus Listed / 15A
Part Number: AH1201L
Quick Summary
Eaton locking switch is designed to securely control power circuits in industrial environments. It helps prevent accidental re-energization and tampering during maintenance of heavy equipment. The device carries cULus Listed and UL Recognized certifications and NAFTA compliance for regulatory confidence. With a 15A, 120/277V rating and back-and-side wiring, it adapts to common control panels. This combination supports safer lockout workflows while enabling streamlined installation and reliable performance across industries. Manufacturers benefit from predictable performance, easy installation, and compliance with electrical codes during panel builds. In fast-moving maintenance cycles, the maintained closure and key actuator help enforce safe lockout procedures.
Product Information
Extended Description

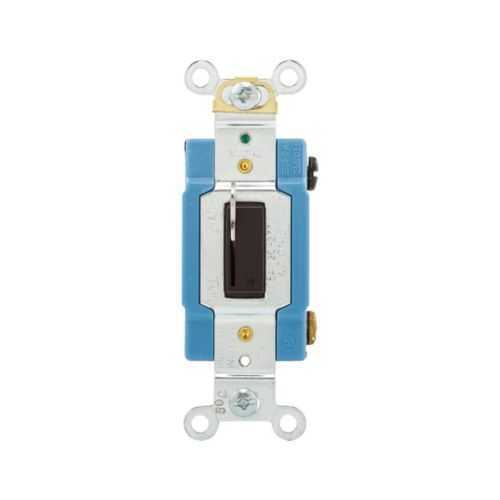

AH1201L Eaton: Eaton locking switch, #14-10 AWG, 15A, 120/277V, Back and side wiring, Key actuator, Maintained closure, Brown, Single-pole, Urea
Product Name
Eaton locking switch
Catalog Number
AH1201L
UPC
032664706271
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
1.05 in
Product Weight
0.2 lb
Compliances
NAFTA
Certifications
cULus Listed UL Recognized
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Special features
Locking
Type
Switch
Amperage Rating
15A
Voltage rating
120/277 V
Application
Industrial
Wiring method
Back and side
Switch type
Single-pole
Closure type
Maintained
Material
Urea
Actuator
Key
Color
Brown
