Eaton AH1202L Locking Switch - cULus Listed NOM
Part Number: AH1202L
Quick Summary
The AH1202L locking switch from Eaton delivers safe, maintained control for industrial electrical panels. In maintenance scenarios, accidental energization and unauthorized access can cause costly downtime, reliability risks, and safety concerns. It carries cULus Listed NOM and NAFTA compliance, supporting regulatory adherence and cross-border procurement. Designed for 120/277 VAC operation with back and side wiring for #14-10 AWG conductors, it installs quickly in standard enclosures. By combining a blue, lockable actuator with a robust two-pole design, this switch improves operator safety and equipment uptime while offering clear traceability for maintenance teams and auditors.
Product Information
Extended Description

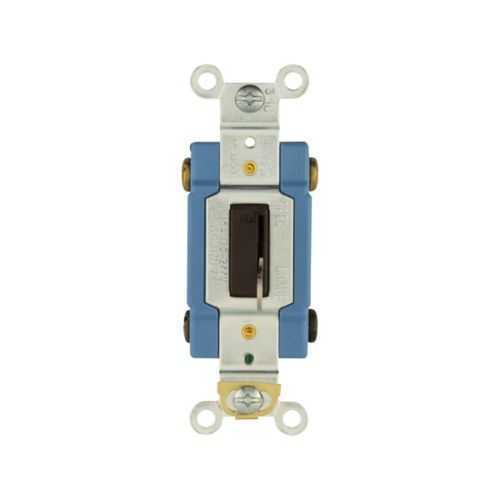

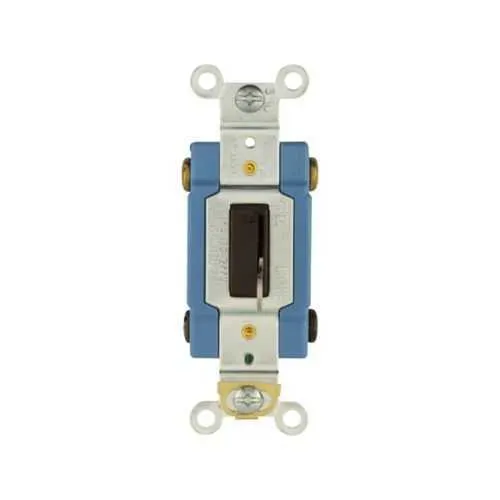

AH1202L Eaton: AC Locking Switch, 15A, Maintained, Blue, Urea, Locking, Two-pole, Switch, 120/277 Vac, #14-10 AWG, Back and side, Key
Product Name
Eaton locking switch
Catalog Number
AH1202L
UPC
032664706288
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
1.05 in
Product Weight
0.25 lb
Compliances
NAFTA
Certifications
cULus Listed NOM
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Special features
Locking
Type
Switch
Amperage Rating
15A
Voltage rating
120/277 V
Wiring method
Back and side
Switch type
Two-pole
Closure type
Maintained
Material
Urea
Actuator
Key
Color
Blue
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH1202L
Eaton Specification Sheet - AH1202L
Feature → Business Impact → Application: Locking capability and maintained closure prevent unauthorized energization, reducing the risk of accidental start-up during service and enabling compliant lockout-tagout (LOTO) procedures in maintenance zones. This directly lowers downtime and safety incidents in critical equipment such as presses and conveyors. Feature → Application: Two-pole construction with 120/277 VAC rating supports essential control circuits in industrial machinery, enabling reliable control of motors and actuators in packaging lines and assembly cells. Feature → Application: Back and side wiring with #14-10 AWG compatibility simplifies field installation and future wiring changes, speeding commissioning in control panels and modular enclosures. Feature → Application: 14 lbf-in torque rating ensures secure terminations without over-torquing, preserving contact integrity and extending switch life in high-vibration environments. Feature → Business Impact: Blue, lockable actuator and key provide clear visual status and secure operation, reducing operator errors and improving audit trails for compliance. Feature → Application: NAFTA-compliant, cULus Listed NOM construction delivers regulatory peace of mind for multinational projects, boosting procurement efficiency and supplier reliability while maintaining robust performance in harsh factory conditions.
Get a Quick Quote for a Eaton AH1202L
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH1202L?
Enquire Now
FAQs
To install the AH1202L, mount the device in the panel cutout, connect conductors up to #14-10 AWG using the back and side wiring method, then tighten the terminals to 14 lbf-in torque. Ensure the actuator remains accessible for lock-and-key removal and verify the wiring path minimizes strain. This approach aligns with standard electrical codes and supports quick field upgrades without panel rework.
AH1202L is a maintained, lockable two-pole switch designed to accept a keyed actuator, enabling secure locking during service. Its locking feature prevents energization until the key is removed, satisfying LOTO requirements and reducing the risk of accidental startup during maintenance or inspections in industrial lines.
The switch is rated at 15A and operates at 120/277 VAC, suitable for control circuits in electrical panels. It accepts back and side wiring for #14-10 AWG conductors, with a torque rating of 14 lbf-in to ensure reliable terminations without damaging conductors during installation or maintenance.
AH1202L is cULus Listed NOM and NAFTA compliant, ensuring compliance with North American electrical safety standards and cross-border procurement requirements. These certifications support regulatory acceptance, supplier qualification, and safer integration into industrial automation projects.
By preventing unintended energization, simplifying wiring with back and side terminals, and offering durable, lockable operation, the AH1202L reduces unplanned downtime and maintenance overhead. Its robust construction and regulatory compliance translate to lower incident rates, faster repairs, and lower lifecycle costs for automated equipment.
