Eaton AH1203L Locking Switch - UL Recognized / cULus Listed
Part Number: AH1203L
Quick Summary
The Eaton locking switch AH1203L provides secure control for industrial equipment wiring. It integrates a key-actuator and maintained closure to prevent accidental energization during servicing. This design addresses a common safety pain point where equipment can be re-energized during maintenance, risking personnel and production downtime. The device carries UL Recognized and cULus Listed certifications, with NAFTA compliance for cross-border procurement, ensuring regulatory alignment across North American facilities. Built for rugged industrial environments, it supports #14-10 AWG conductors and back-and-side wiring, delivering dependable performance in control panels, machine guarding, and safety interlocks. For contractors and OEMs, the combination of compact dimensions and a 15A, 120/277V rating translates to faster installations and reduced spare parts inventory, driving overall project efficiency.
Product Information
Extended Description

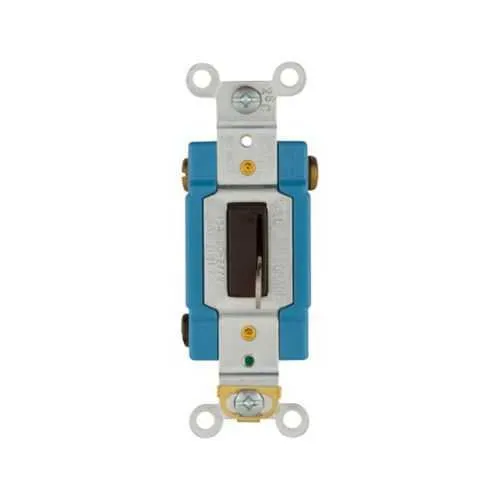

AH1203L Eaton: Eaton locking switch, #14-10 AWG, 15A, 120/277V, Back and side wiring, Key actuator, Maintained closure, Brown, Three-way, Urea
Product Name
Eaton locking switch
Catalog Number
AH1203L
UPC
032664706295
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
1.05 in
Product Weight
0.15 lb
Compliances
NAFTA
Certifications
UL Recognized cULus Listed
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Special features
Locking
Type
Switch
Amperage Rating
15A
Voltage rating
120/277 V
Application
Industrial
Wiring method
Back and side
Switch type
Three-way
Closure type
Maintained
Material
Urea
Actuator
Key
Color
Brown
