Eaton AH1222L Locking Switch - UL Recognized, cULus Listed
Part Number: AH1222L
Quick Summary
Eaton locking switch safely controls industrial circuits in control panels. Maintenance teams routinely face accidental energization and wiring mix-ups during servicing. This AH1222L model uses a keyed actuator with maintained closure to prevent unintentional operation. It carries UL Recognized, cULus Listed, and NAFTA compliance for safer, border-spanning deployments. With back and side wiring, a 20A rating at 120/277V, and a compact 1.31 in depth, it streamlines installation and helps maintain uptime. This translates to faster wiring, reduced commissioning time, and lower risk of electrical faults in harsh industrial environments. Overall, AH1222L contributes to safer, compliant operations while simplifying procurement with common spec.
Product Information
Extended Description

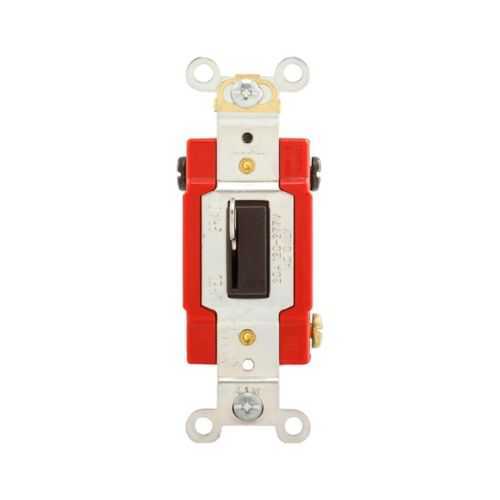

AH1222L Eaton: Eaton locking switch, #14-10 AWG, 20A, 120/277V, Back and side wiring, Key actuator, Maintained closure, Brown, Two-pole, Urea
Product Name
Eaton locking switch
Catalog Number
AH1222L
UPC
032664706325
Product Length/Depth
1.31 in
Product Height
3.28 in
Product Width
1.05 in
Product Weight
0.22 lb
Compliances
NAFTA
Certifications
UL Recognized cULus Listed
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Special features
Locking
Type
Switch
Amperage Rating
20A
Voltage rating
120/277 V
Application
Industrial
Wiring method
Back and side
Switch type
Two-pole
Closure type
Maintained
Material
Urea
Actuator
Key
Color
Brown
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH1222L
Eaton Specification Sheet - AH1222L
Locking mechanism for the AH1222L ensures the switch stays in the selected position during maintenance, preventing unintended energization. The business impact is clear: reduced risk of electrical injuries and equipment damage, which translates into lower downtime and safer changeovers in production lines. This is ideal for industrial panels and safety interlocks in forging, packaging, or material handling environments. The device supports #14-10 AWG conductors in both back and side wiring, simplifying field termination and reducing install time, which translates to faster panel builds and lower labor costs on site. With a 20A rating at 120/277V, it accommodates common control circuits without oversizing hardware or wiring. The two-pole design with maintained closure and a keyed actuator delivers reliable, tamper-resistant operation for motors and feeders in harsh environments. Its urea housing adds durability, especially in dusty or chemical-adjacent settings while still permitting straightforward maintenance. Overall compatibility with standard control panels reduces spare parts variety and accelerates procurement for OEMs and integrators, supporting compliance-driven projects and safer line starts.
