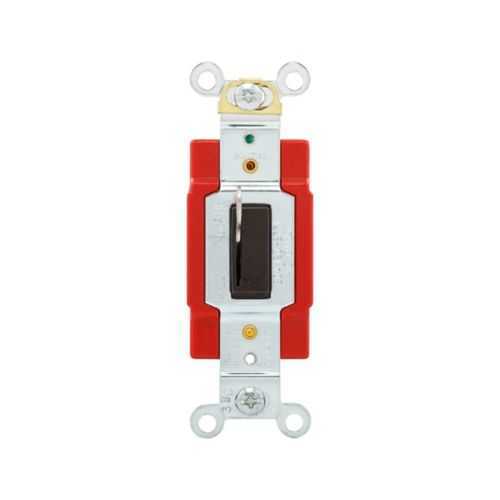

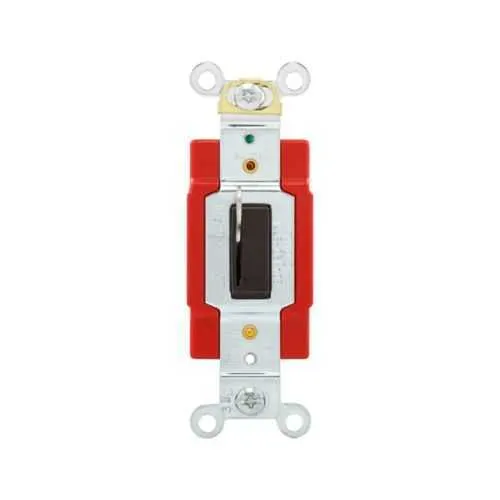

Eaton AH1223L Locking Switch - cULus Listed
Part Number: AH1223L
Quick Summary
Eaton locking switch AH1223L provides secure, lockable control for industrial equipment in safety-critical control panels. Maintenance teams struggle with accidental restarts and operator errors; the key actuator and maintained closure prevent unauthorized or inadvertent operation. This model carries cULus Listed and UL Recognized certifications, with NAFTA compliance to support cross-border deployments. Designed for #14-10 AWG wiring at 120/277 V with back and side wiring and a compact footprint, it integrates cleanly into existing panels and reduces wiring complexity. For design engineers and procurement teams, this translates to safer operations, faster install times, and reliable, compliant performance in industrial applications.
Product Information
Extended Description
AH1223L Eaton: Eaton locking switch, #14-10 AWG, 20A, 120/277V, Back and side wiring, Key actuator, Maintained closure, Brown, Three-way, Urea
Product Name
Eaton locking switch
Catalog Number
AH1223L
UPC
032664706332
Product Length/Depth
1.3 in
Product Height
4.19 in
Product Width
1.005 in
Product Weight
0.22 lb
Compliances
NAFTA
Certifications
cULus Listed UL Recognized
Allowable wire size
#14-10 AWG
Torque rating
14 lbf-inch
Special features
Locking
Type
Switch
Amperage Rating
20A
Voltage rating
120/277 V
Application
Industrial
Wiring method
Back and side
Switch type
Three-way
Closure type
Maintained
Material
Urea
Actuator
Key
Color
Brown
Arrow Hart - Connecting Safety to Reliability since 1890
Eaton Specification Sheet - AH1223L
Eaton Specification Sheet - AH1223L
Locking mechanism with key actuator provides security and prevents accidental operation, directly reducing risk of injury and unplanned downtime during maintenance. In control panels, this translates to improved operator accountability and smoother lockout procedures. High current rating of 20A at 120/277 V supports a wide range of industrial loads, including motor control circuits and automation actuators. For panel designers, this means fewer devices to manage and easier compliance with electrical codes. Back and side wiring offers installation flexibility, enabling quicker retrofits and cleaner panel layouts in tight spaces. This configuration supports reliable field connections and simplifies commissioning in crowded or legacy panels. The 14 lbf-in torque rating ensures consistent contact pressure and long-term reliability, while the durable Urea material withstands industrial environments. The three-way switch architecture supports multiple wiring configurations to accommodate evolving automation schemes. Certifications such as cULus Listed and UL Recognized provide regulatory peace of mind and facilitate cross-site deployments. Overall, AH1223L delivers a compact, robust solution that reduces maintenance costs and improves uptime in manufacturing and packaging lines.
