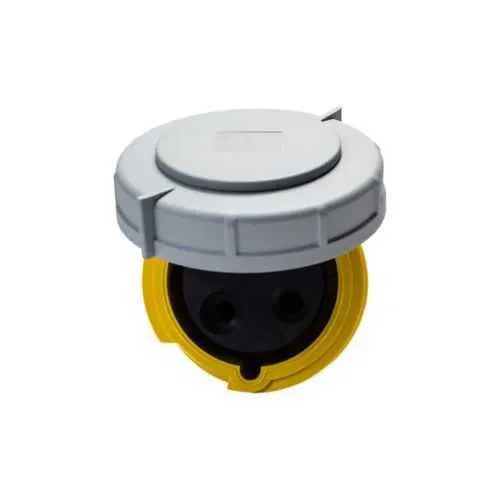

Eaton AH3100C4W Pin & Sleeve Connector - IP69K
Part Number: AH3100C4W
Quick Summary
AH3100C4W pin and sleeve connector delivers rugged industrial power interconnection for heavy equipment used in process plants and manufacturing lines. Engineers often contend with washdown environments, moisture ingress, and complex wiring schemes that slow commissioning, increase risk of corrosion, or require frequent maintenance. It carries IP69K washdown rating and IP67 sealing, plus cRUus certification for North American compliance, ensuring safe operation in harsh conditions such as food processing, wastewater treatment, and rugged factory floors. Designed for back-wire, two-pole, three-wire configurations with grounding, it streamlines installation, reduces downtime, and supports reliable service life, while offering a compact nylon housing, nickel-plated contacts, and a 70 lbf-in torque specification for consistent terminations.
Product Information
Extended Description
AH3100C4W Eaton: Eaton Arrow Hart pin and sleeve connector, IP69K Rated, #4 -1/0 AWG, #12-#16 AWG (pilot), 100A, Extra Heavy-Duty, 125V, Back wire, Yellow, Nickel plated brass, IP67, Nylon, Two-pole, Three-wire, grounding, 0.97-1.94in (2.46-5.00cm), Female
Product Name
Eaton Arrow Hart pin and sleeve connector
Catalog Number
AH3100C4W
UPC
032664732881
Product Length/Depth
13.375 in
Product Height
5.625 in
Product Width
5.5 in
Product Weight
3.194 lb
Certifications
cRUus
Special features
IP69K Rated
Type
Connector
Amperage Rating
100A
Voltage rating
125 V
Contact material
Nickel plated brass
Application
Industrial, food and beverage, wastewater treatment
Device grade
Extra Heavy-duty
Wiring method
Back wire
Number of wires
3 Grounding Three-wire
Number Of Poles
Two-pole
Cord diameter
0.97-1.94in (2.46-5.00cm)
Environmental resistance
IP69K IP67
Color
Yellow
Gender
Female
Allowable wire size
#4 -1/0 AWG, #12-16 AWG (pilot)
Torque rating
70 lbf-inch
Design type
Pin and sleeve connector
Face/body material
Nylon
Material
Nylon
Eaton IEC 60309 Arrow Hart pin and sleeve devices brochure
Eaton Specification Sheet - AH3100C4W
Eaton Specification Sheet - AH3100C4W
The IP69K/IP67 rated housing provides washdown-ready robustness, reducing cleaning-related downtime and corrosion risk, which translates to higher line uptime and lower maintenance costs in food processing and wastewater facilities. The 100A, 125V rating supports reliable power distribution for two-pole, three-wire circuits with grounding, enabling tighter equipment layouts and fewer components in control panels. Back-wire termination simplifies installation, minimizes field wiring errors, and speeds commissioning in high-mix, low-volume production environments. Nylon body and nickel-plated brass contacts offer a durable, corrosion-resistant path that extends service life in harsh industrial settings, while a 70 lbf-in torque spec ensures repeatable, secure terminations. Compatibility with standard Arrow Hart pin and sleeve ecosystems reduces spare parts footprint and improves maintenance planning. The device is ideal for industrial, food and beverage, and wastewater applications where reliability and sanitation are critical.
Get a Quick Quote for a Eaton AH3100C4W
Chat with us on WhatsApp - fast responses guaranteed
Need to speak with someone? We'll call you back within 2 hours during business hours
Interested in Eaton AH3100C4W?
Enquire Now
FAQs
AH3100C4W supports back-wire terminations for main conductors in the range of #4-1/0 AWG with pilot wiring of #12-16 AWG. It is a two-pole, three-wire grounding connector designed for reliable, quick terminations. The back-wire method reduces field termination time and lowers the risk of loose connections, which improves overall system reliability in demanding environments.
The IP69K rating indicates high-aggressiveness washdown resistance, protecting internal contacts from moisture and contaminants during frequent cleaning. This minimizes corrosion risk, extends service life, supports sanitary compliance, and reduces maintenance cycles in food and beverage facilities and other washdown-heavy settings.
Yes. AH3100C4W is rated for 100A at 125V in industrial applications and features a nylon housing with nickel-plated brass contacts. It carries IP69K and IP67 environmental resistance, ensuring robust performance in harsh environments such as manufacturing floors, wastewater treatment facilities, and other process industries.
AH3100C4W carries cRUus certification, aligning with North American safety standards for wiring devices. This certification, along with its durable materials and IP-rated enclosure, helps meet regulatory requirements for equipment used in food and beverage, wastewater, and industrial automation sectors.
Expect faster installations thanks to back-wire terminations and a streamlined two-pole, three-wire configuration. The durable nylon body and corrosion-resistant contacts reduce maintenance costs and downtime, while IP-rated protection minimizes service interruptions from washdowns. This leads to lower total cost of ownership and improved uptime in demanding industrial environments.
